ASUS TUF Gaming GeForce RTX 4070 Ti 12GB GDDR6X Graphic Card

Specifications

Model	TUF-RTX4070TI-12G-GAMING
Graphic Engine	NVIDIA® GeForce RTX™ 4070 Ti
Bus Standard	PCI Express 4.0
OpenGL	OpenGL®4.6
Video Memory	12GB GDDR6X
Engine Clock	OC mode: 2640 MHz Default mode: 2610 MHz (Boost clock)
CUDA Core	7680
Memory Speed	21 Gbps
Memory Interface	192-bit
Resolution	Digital Max Resolution 7680 x 4320

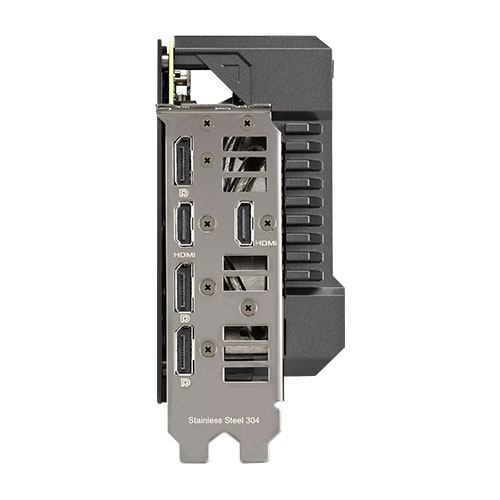

Interface	Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Accessories	1 x Collection Card​ 1 x Speedsetup Manual​ 1 x Adapter Cable​ (1 to 2) 1 x TUF Graphics Card Holder​ 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate 1 x Collection Card? 1 x Speedsetup Manual? 1 x Adapter Cable? (1 to 2) 1 x TUF Graphics Card Holder? 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate
Software	ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions	305 x 138 x 65 mm
Recommended PSU	750W
Power Connectors	1 x 16-pin
Slot	3.25 Slot
AURA SYNC	ARGB
Note	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.





ARMED FOR FLOW

NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4070 Ti.

Powered by GeForce RTX 40 Series and DLSS 3

• New Streaming Multiprocessors
  Up to 2x performance and power efficiency
• Fourth-Gen Tensor Cores
  Up to 4x performance with DLSS 3 vs. brute-force rendering
• Third-Gen RT Cores
  Up to 2x ray tracing performance



Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
NVIDIA Broadcast app

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers



AXIAL-TECH UPGRADES

Air Superiority

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.



NEW DIRECTION

Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.



3.25-SLOT DESIGN

Phase That Blaze

A vapor chamber and generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4070 Ti GPU so that it can be whisked away by the three Axial-tech fans.



MILITARY-GRADE 20K CAPACITORS

Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.



METAL EXOSKELETON

Suit Up

A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation.



AUTO-EXTREME TECHNOLOGY

RELIABILITY BOOST

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

AURA SYNC

Light ‘em Up!

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

GRAPHICS CARD HOLDER

Pillar of Support

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.



QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!



Pair with a PSU

Check out our PSU landing page to learn more about how we’re pushing the industry forward and use our wattage calculator to estimate how much power you’ll need to fuel your next rig.
