HIGHLY VERSATILE LAYOUT
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. Each part of the frame enables a high level of versatility. From multi-functional brackets to options in component positioning, the COSMOS C700M encourages freedom in building and out-of-the-box customizability.
GRAPHICS CARD MOUNTING WITH RISER CABLE
The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or on the M. Port. The bracket can also be rotated from 0 to 90 degrees. Also included is a 400mm riser cable for the convenience of being able to connect a vertically mounted graphics card to the motherboard.
ALUMINUM PANELS & HANDLES
Brushed aluminum spans the top panel and front panel, with cast aluminum handles (and feet) that provide protection & support for carrying the case.
VERSATILE LIQUID COOLING SUPPORT
A flat radiator bracket design offers more versatility for liquid cooling with the ability to be mounted on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket.
RICH CONNECTIVITY

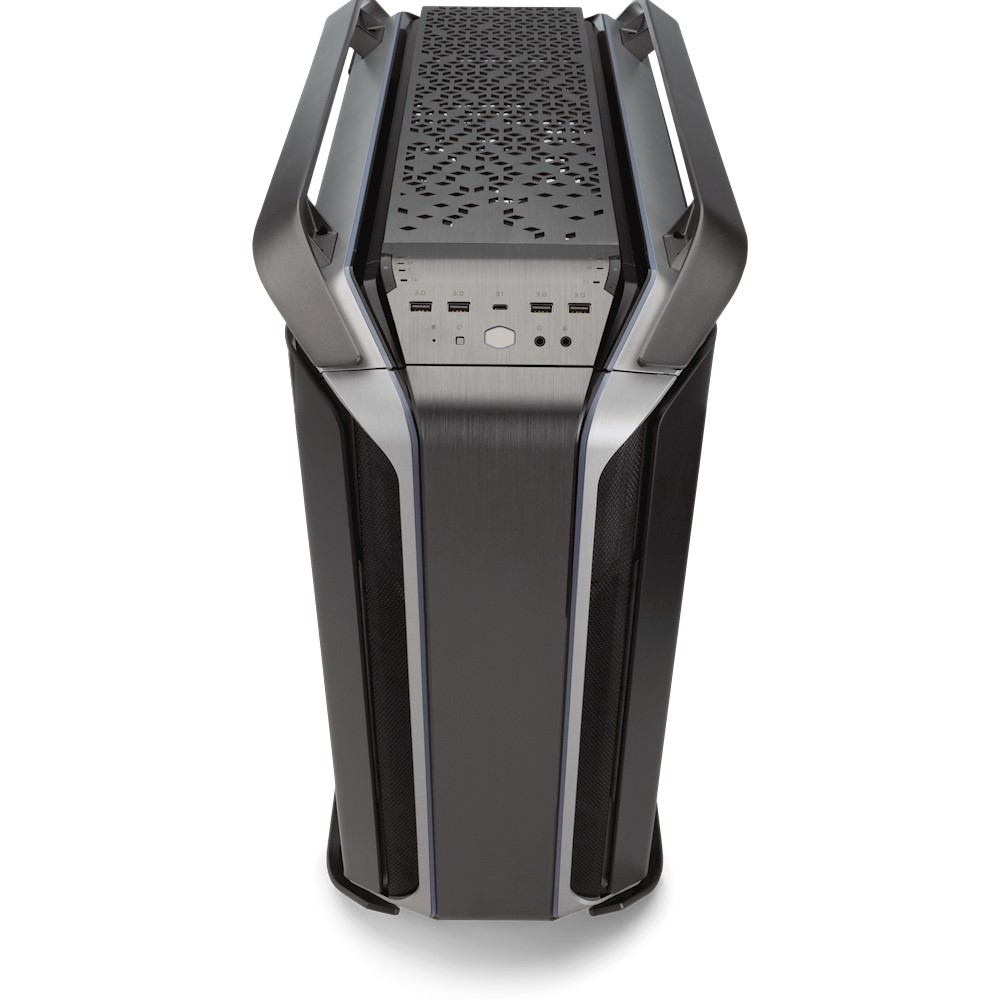

The advanced I/O panel comes with a 4-Pole headset jack (audio+mic), dedicated mic jack, USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, PWM fan speed button, and an addressable RGB control button.
CURVED TEMPERED GLASS SIDE PANEL
A panoramic tempered glass side panel, with two curved edges, offer a wide view of the system build.
SPECIFICATIONS
- MODEL NUMBER
- MCC-C700M-MG5N-S00
- AVAILABLE COLOR(S)
- Grey, Silver, Black
- MATERIALS
- Steel
- MATERIALS – SIDE PANEL
- Curved Tempered Glass, Steel
- DIMENSIONS (L X W X H)
- 650 x 306 x 651mm / 25.6 x 12.0 x 25.6inch
- MOTHERBOARD SUPPORT
- Mini ITX, Micro ATX, ATX, E-ATX
- EXPANSION SLOTS
- 8
- 5.25″ DRIVE BAYS
- 1
- 2.5″ / 3.5″ DRIVE BAYS (COMBO)
- 4+1 (in the accessory box)
- DRIVE BAYS – SSD
- 4
- I/O PORT – USB PORTS / USB 3.1 TYPE-C
- 1
- I/O PORT – USB PORTS / USB 3.0 TYPE-A
- 4
- I/O PORT – AUDIO – 3.5MM HEADSET JACK (AUDIO+MIC)
- 1
- I/O PORT – AUDIO – 3.5MM MIC JACK
- 1
- I/O PORT – FANS/LIGHTING
- Fan Speed Control Button, ARGB Control Button
- PRE-INSTALLED FANS – FRONT
- 3x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
- PRE-INSTALLED FANS – REAR
- 1x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
- FAN SUPPORT – TOP
- 3x 120/140mm
- FAN SUPPORT – FRONT
- 3x 120/140mm
- FAN SUPPORT – REAR
- 1x 120/140mm
- FAN SUPPORT – BOTTOM
- 2x 120/140mm (bracket needed)
- RADIATOR SUPPORT – TOP
- 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)
- RADIATOR SUPPORT – FRONT
- 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage)
- RADIATOR SUPPORT – REAR
- 120mm, 140mm
- RADIATOR SUPPORT – BOTTOM
- 120mm, 140mm, 240mm
- CLEARANCE – CPU COOLER
- 198mm
- CLEARANCE – GFX
- 490mm (w/o 3.5″ HDD BRK), 320mm (w/ 3.5″ HDD BRK)
- EAN CODE
- 4719512075036
- UPC CODE
- 884102047527
- SERIES
- COSMOS Series
- SIZE
- Full Tower
- NOTE
- This PCI-E riser cable inside C700M is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
| Weight | 0.5 kg |
|---|
