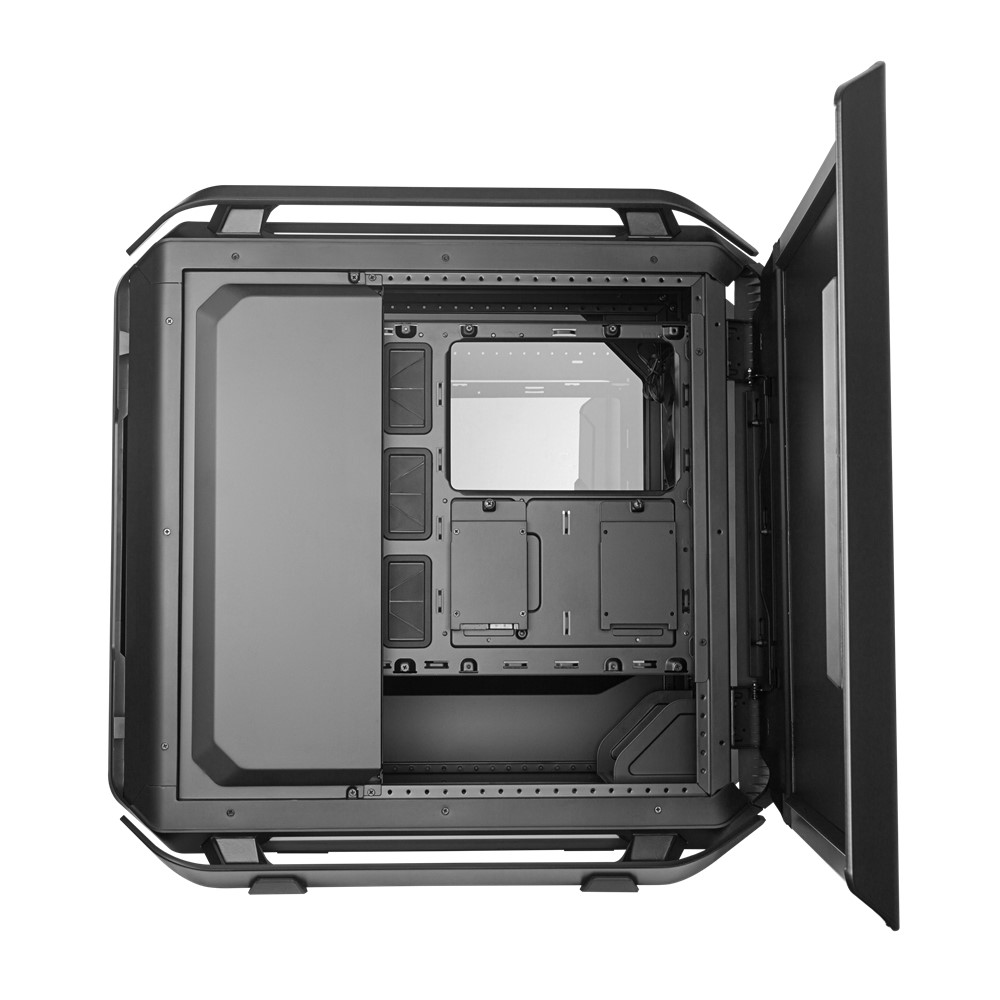

HIGHLY VERSATILE LAYOUT
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis.
COOLING SUPPORT
RADIATORS
| Top: | 120 / 140 / 240 / 280 / 360 / 420mm* *Remove ODD, maximum thickness clearance 70mm |
| Front: | 120 / 140 / 240 / 280 / 360 / 420mm* *remove ODD |
| Rear: | 120 / 140mm |
| Bottom: | 120 / 140 / 240mm |
COOLING SUPPORT
FANS
| Top: | 120 / 140mm x 3 |
| Front: | 120 / 140mm x 3 |
| Rear: | 120 / 140mm x 1 |
| Bottom: | 120 / 140mm x 2* *Requires bracket |
SPECIFICATIONS
- MODEL NUMBER
- MCC-C700P-KG5N-S00
- SERIES
- COSMOS Series
- SIZE
- Full Tower
- AVAILABLE COLOR(S)
- Black
- MATERIALS
- Steel, Curved Tempered Glass
- DIMENSIONS (L X W X H)
- 639 x 306 x 651mm
- WEIGHT
- 22.2 kg
- MOTHERBOARD SUPPORT
- E-ATX, ATX, Micro ATX, Mini ITX
- EXPANSION SLOTS
- 8
- 5.25″ DRIVE BAYS
- 1
- 2.5″ / 3.5″ DRIVE BAYS (COMBO)
- 4
- 2.5″ DRIVE BAYS
- 4
- I/O PANEL
- 4x USB 3.0, 1x USB 3.1 Gen 2 Type-C, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, Fan Speed, RGB Control Buttons
- PRE-INSTALLED FANS – FRONT
- 2x 140mm, 1200RPM
- PRE-INSTALLED FANS – REAR
- 1x 140mm, 1200RPM
- FAN SUPPORT – FRONT
- 3x 120/140mm
- FAN SUPPORT – TOP
- 3x 120/140mm
- FAN SUPPORT – REAR
- 1x 120/140mm
- FAN SUPPORT – BOTTOM
- 2x 120/140mm*
- RADIATOR SUPPORT – FRONT
- 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage)
- RADIATOR SUPPORT – TOP
- 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)
- RADIATOR SUPPORT – REAR
- 120mm, 140mm
- RADIATOR SUPPORT – BOTTOM
- 120mm, 140mm, 240mm
- CLEARANCE – CPU COOLER
- 198mm
- CLEARANCE – GFX
- 320mm (w/ 3.5″ HDD cage), 490mm (w/o 3.5″ HDD cage)
- POWER SUPPLY SUPPORT
- Bottom mount, ATX PS2
- DUST FILTERS
- Top, Front, Bottom
- LIGHTING SUPPORT
- 1x RGB Connection, RGB Control Board
- EAN CODE
- 4719512085028
- UPC CODE
- 884102057472
| Weight | 0.5 kg |
|---|
