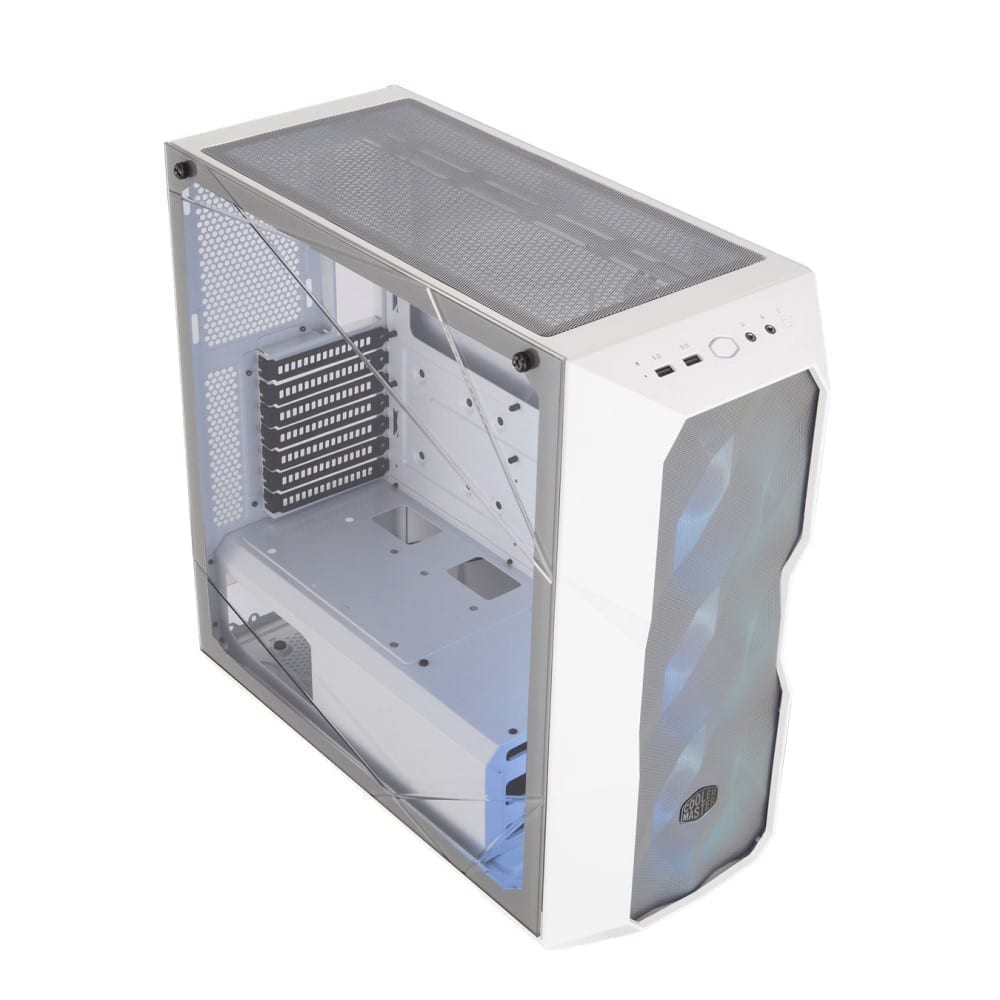

Cooler Master MasterBox TD500 Mesh White ARGB case

AIRFLOW IN AN ART FORM

The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.

Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.

POLYGONAL MESH

Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.

CRYSTALLINE TEMPERED GLASS

A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design.

TRIPLE ARGB FANS

Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.

Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards.



DUAL 360MM RADIATOR SUPPORT

For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.

VERSATILE COOLING OPTIONS

Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

ROOM FOR UPGRADES

Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.

ARGB CONTROLLER​

​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.​

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.





Specifications:

• MODEL NUMBER: MCB-D500D-WGNN-S01
• SERIES: MasterBox Series
• SIZE: Mid Tower
• AVAILABLE COLOR(S): Black, White
• MATERIALS: Steel, Plastic, Tempered Glass, Mesh
• DIMENSIONS (L X W X H): 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)
• WEIGHT: 6.95 kg
• MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
• EXPANSION SLOTS: 7
• 5.25″ DRIVE BAYS: N/A
• 2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
• 2.5″ DRIVE BAYS: 4
• I/O PANEL: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
• ARGB CONTROLLER: ARGB Controller included
• ARGB CABLE: 2 to 3 ARGB Splitter cable included
• PRE-INSTALLED FANS – TOP: N/A
• PRE-INSTALLED FANS – FRONT: 3x 120mm ARGB Fans
• PRE-INSTALLED FANS – REAR: N/A
• FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
• FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
• FAN SUPPORT – REAR: 1x 120mm
• RADIATOR SUPPORT – TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
• RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
• RADIATOR SUPPORT – REAR: 120mm
• CLEARANCE – CPU COOLER: 165mm/6.49″
• CLEARANCE – PSU: 180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)
• CLEARANCE – GFX: 410mm/16.1″
• CABLE ROUTING: 19mm/0.74″
• DUST FILTERS: Front, Top, Bottom
• POWER SUPPLY SUPPORT: Bottom mount, ATX
• WARRANTY: 2 years
• EAN CODE: 4719512095546
• UPC CODE: 884102067846
