Specifications
- Exterior Color White
- CPU Socket LGA1700*, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
- Radiator Material Aluminum
- Radiator Dimensions 277 x 119.6 x 27.2 mm / 10.9 x 4.7 x 1.1 inch
- Pump Dimensions 81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch
- Pump MTTF 70,000 Hours
- Pump Noise Level < 10 dBA
- Pump Connector 3-Pin
- Pump Rated Voltage 12 VDC
- Pump Power Consumption 2.36 W
- Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
- Fan Quantity 2 PCS
- Fan LED Type Addressable Gen 2 RGB
- Fan Speed 650-1800 RPM ± 10%
- Fan Airflow 47.2 (Max)
- Fan Noise Level 6 – 30 dBA
- Fan Pressure 1.60 mmH₂O (Max)
- Fan Life Expectancy 160,000 Hours
- Fan Power Connector 4-Pin (PWM)
- Fan Rated Voltage 12VDC
- Fan Rated Current 0.25A
- RAM Clearance N/A
- Series MasterLiquid
- Cooler Type Liquid Cooler
- Radiator Size 240
- Note *Accessory Pack Required, Please Refer to Landing Page or Technical Support
SEE IT TO BELIEVE IT
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.

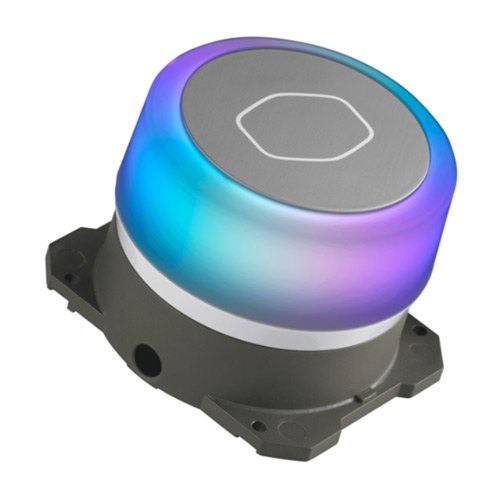

TRANSLUCENT DOME
Stunning lighting visuals with translucent water chamber dome and rotatable logo. Compatible with software customization
NEW 3RD GEN DUAL CHAMBER PUMP
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.
EXPANDED DISSIPATION SURFACE AREA
Widened radiator water channels for increased cooling surface area.
MASTERFAN MF120 HALO
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
NEW ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface
| Weight | 0.5 kg |
|---|
