80 PLUS BRONZE CERTIFIED
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.
SEMI-FANLESS UP TO 15% LOAD
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.
DUAL FORWARD AND DC-TO-DC CIRCUIT DESIGN
The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.

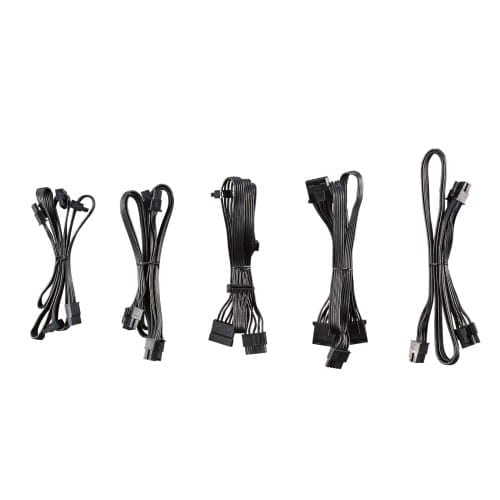

MORE CONDUCTIVE PCI-E CABLES
The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.
SPECIFICATIONS:
- PRODUCT NAME
- MasterWatt 650
- MODULAR
- Semi Modular
- MODEL
- MPX-6501-AMAAB
- ATX VERSION
- ATX 12V v2.4
- PFC
- Active PFC
- OPERATION VOLTAGE
- 100-240Vac
- INPUT VOLTAGE
- 100-240Vac
- INPUT CURRENT
- 10-5A
- INPUT FREQUENCY
- 50-60Hz
- DIMENSIONS (L X W X H)
- 140 x 150 x 86 mm
- FAN SIZE
- 120mm
- FAN BEARING
- LDB
- POWER GOOD SIGNAL
- 100 – 500 ms
- HOLD UP TIME
- 16ms at 80% Load
- EFFICIENCY
- 85% @ Typical Load
- ERP 2013 LOT 6
- Yes
- MTBF
- >100,000 Hours
- OPERATING TEMPERATURE
- 0-40°C
- PROTECTIONS
- OPP, OVP, UVP, OCP, SCP, OTP
- REGULATORY
- CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
- MB 20+4 PIN CONNECTORS
- 1
- CPU 12V 4+4 PIN CONNECTORS
- 1
- SATA CONNECTORS
- 9
- PERIPHERAL 4-PIN CONNECTORS
- 3
- PCI-E 6+2 PIN CONNECTORS
- 4
- 80 PLUS
- Bronze
- WATTAGE
- 500 to 750W
- SERIES
- MasterWatt Series
| Weight | 0.5 kg |
|---|
