SPECIFICATIONS:
- PRODUCT NAME MWE Gold 650 Full Modular
- 80 PLUS Gold
- MODEL MPY-6501-AFAAG
- ATX VERSION ATX 12V V2.31
- PFC Active PFC
- INPUT VOLTAGE 100-240V
- INPUT CURRENT 12-6A
- INPUT FREQUENCY 50/60Hz
- DIMENSIONS (L X W X H) 160 x 150 x 86 mm
- FAN SIZE 120mm
- FAN BEARING LDB
- POWER GOOD SIGNAL
100 – 500 ms - HOLD UP TIME >14ms at 100% load
- EFFICIENCY 90% Typically
- ERP 2014 LOT 3 Yes
- MTBF >100,000 Hours
- OPERATING TEMPERATURE 0-45°C
- PROTECTIONS OVP, OPP, UVP, SCP, OTP, OCP
- REGULATORY CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
- MB 24-PIN CONNECTORS 1
- CPU 12V 4+4 PIN CONNECTORS 1
- CPU 12V 8 PIN CONNECTORS 1 (for updated models)
- SATA CONNECTORS 8
- PERIPHERAL 4-PIN CONNECTORS 6
- FDD CABLE 4-PIN CONNECTORS 1
- PCI-E 6+2 PIN CONNECTORS 4
- MODULAR Full Modular
- WATTAGE 500 to 750W
- SERIES MWE Gold Series
- 80 PLUS GOLD CERTIFIED
- 120MM LDB FAN
- ADVANCED CIRCUITRY
- FULLY MODULAR CABLING

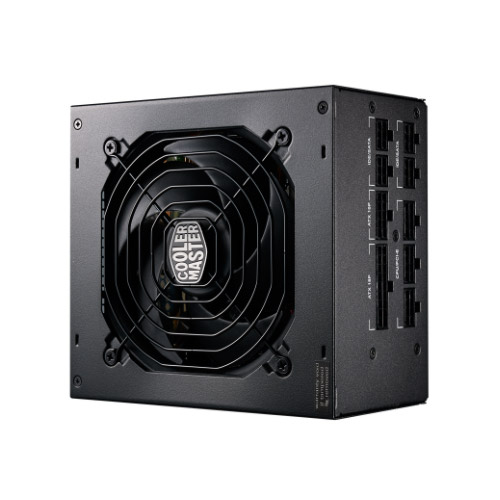

MWE GOLD 650 FULLY MODULAR
Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.
80 PLUS GOLD CERTIFIED
This certification guarantees a typical efficiency of 90% under normal operating conditions.

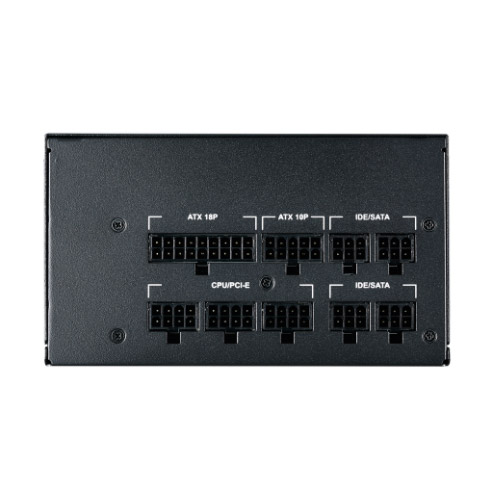

FULLY MODULAR CABLES
Fully customizable cabling reduces clutter, increases airflow,
and improves overall thermal performance.
ADVANCED CIRCUITRY
The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.
SEALED LDB FAN BEARING
The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.
PSU CALCULATOR
Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.
| Weight | 0.5 kg |
|---|
