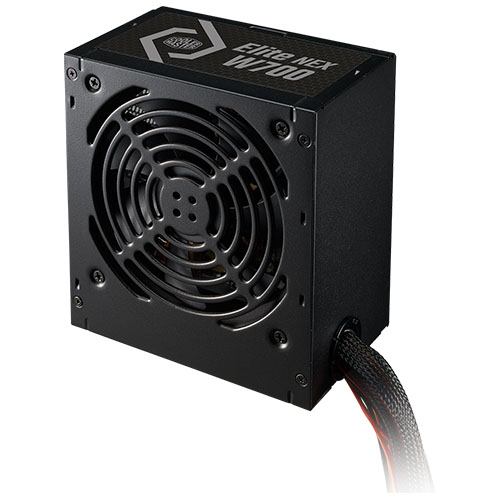

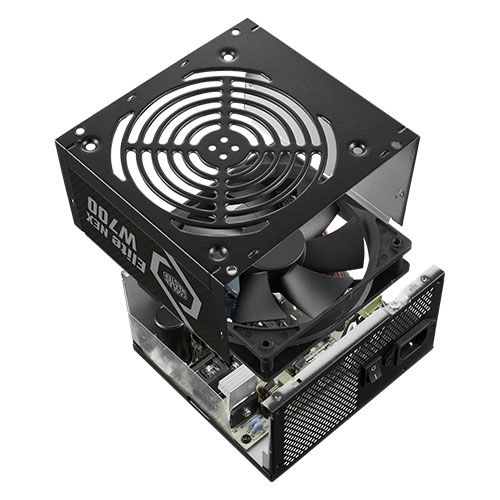

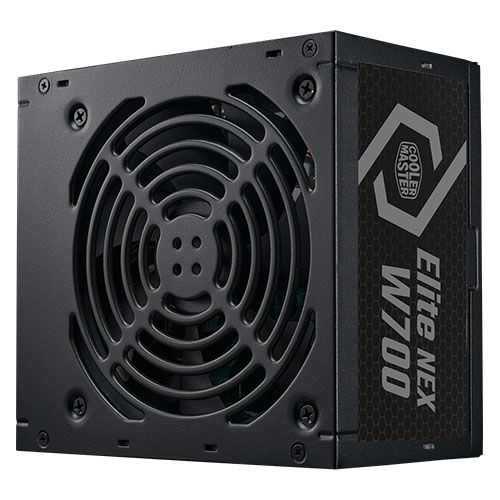

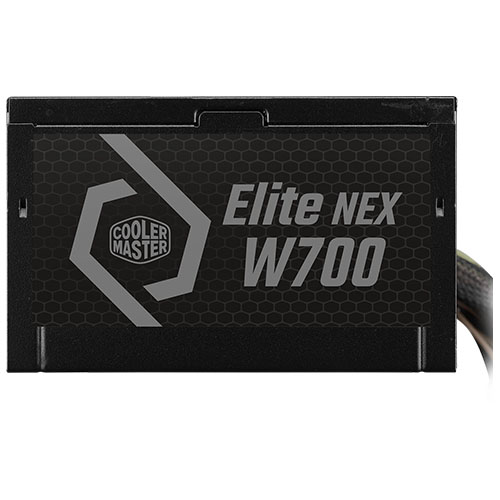

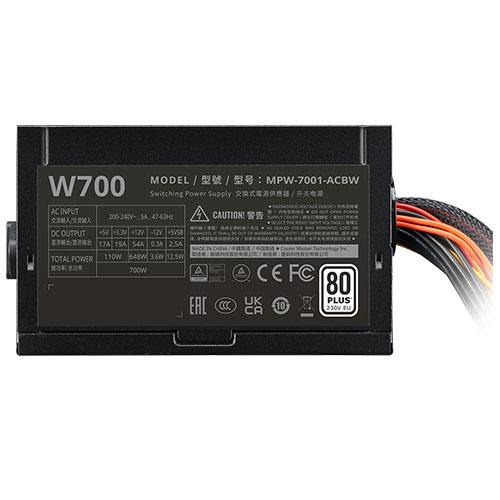

CoolerMaster ELITE NEX WHITE 700 230V Power Supply
- Active PFC and a dual forward topology design
- Excellent temperature resistance
- High peak power tolerance
- Durability, reliability, and safety
- 80 Plus standard certified efficiency
SKU: MPW-7001-ACBW-BUK Categories: Cooler Master, Gaming, Power Supply
Specifications
- Model MPW-7001-ACBW-B
- ATX Version ATX 12V Ver. 2.41
- PFC Active PFC
- Input Voltage 200-240V
- Input Current 5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Fan Size 120mm
- Fan Bearing Sleeve Fan
- Efficiency ≥ 85% @ Typical Load
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- Power Good Signal 100 – 500 ms
- Hold Up Time ≥10ms at 100% load
- MTBF >100,000 Hours
- Protections OVP, OPP, SCP, UVP, OTP, Inrush Protection
- Regulatory TUV, cTUVus, CE, FCC, CCC, EAC, UKCA
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 5
- Peripheral 4 Pin Connectors 3
- PCI-e 6+2 Pin Connectors 2
- Series Elite Series
- 80 Plus Standard
- Modular Non Modular
- Wattage 500 to 750W
NEX LEVEL POWER
The ELITE NEX White is the dependable choice for entry level builders looking for a strong, reliable PSU.
ACTIVE POWER FACTOR CORRECTION AND A DUAL FORWARD TOPOLOGY DESIGN
Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.
EXCELLENT TEMPERATURE RESISTANCE
Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.
HIGH PEAK POWER TOLERANCE
Can reliably push an additional 100W at peak power loads for up to 20 seconds.
DURABILITY, RELIABILITY, AND SAFETY
Will perform consistently in any environment, whether you live at high altitudes or in high humidity.
80 PLUS STANDARD CERTIFIED EFFICIENCY
Maintains an efficiency of 85% at typical loads.
PSU CALCULATOR
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.
Weight | 5 kg |
---|
