Dahua Bundle Offer: 27” FHD 1920×1080 (FHD) LED Monitor + 10-Port Fast Ethernet Switch with 8-Port PoE
Dahua LED Monitor:
- Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports
- Support 802.3af and 802.3at standards
- Operating Temperature: -10°C to +55°C
- Support 250 m long distance PoE tansmission
- Support PoE watchdog
Dahua Ethernet Switch:
- Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports
- Support 802.3af and 802.3at standards
- Operating Temperature: -10°C to +55°C

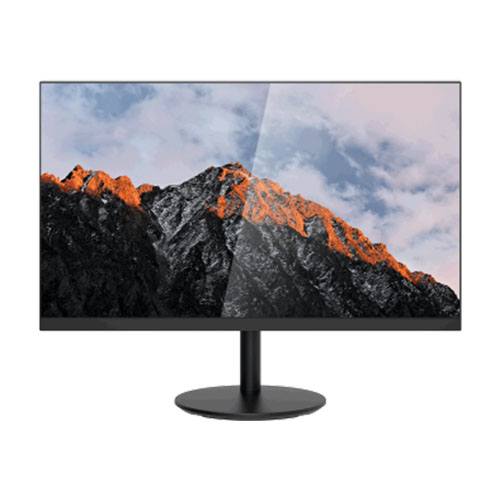

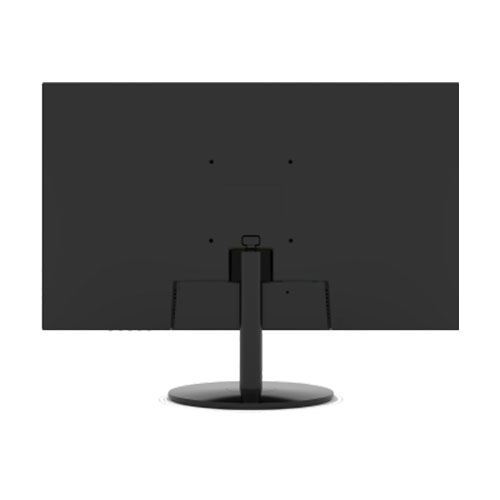

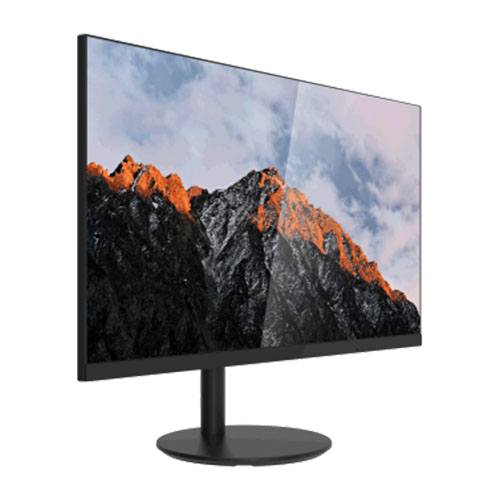

Dahua LM27-A200 27” FHD 1920×1080 (FHD) LED Monitor
Specifications
Display
| Screen Size | 27″ |
| Panel type | VA |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 (FHD) |
| Backlight | LED |
| Brightness/Luminance | 250 cd/㎡ |
| Contrast | 4000:1 |
| Display Color | 16.7M(8bit) |
| Viewing Angle(H/V) | 178°(H)/178°(V) |
| Response time(typ.) | 5ms |
| Refresh Rate | TYP. 60Hz, MAX. 75Hz |
Signals
| Input | VGA×1, HDMI×1 |
General
| Power Supply | DC 12V,3A |
| Consumption (Standard) | 36W |
| Consumption (Standby) | ≤0.5W |
| Tilt | -5°~15° |
| Net Weight | 3.63 kg (8.00 lb) |
| Gross Weight | 4.7 kg (10.36 lb) |
| Bezel Width | 3.6mm(U/R/L), 12.5mm(B) |
| Wall Mount | 100×100mm |
| Dimension without standard (W×H×D) | 616 × 447 × 192 mm (24.25″ × 17.6″ × 7.56″) |
| Package(W×H×D) | 680 × 140 × 442 mm (26.77″ × 5.51″ × 17.4″) |
|
Work Environment |
Temperature 0℃~40℃ (32°F~104°F) |
| Humidity 20%~80% |
Accessory
| Standard | HDMI cable, power cable, base |
| Optional | Gas spring desk bracket |
Certifications
| Certifications | CE/FCC |

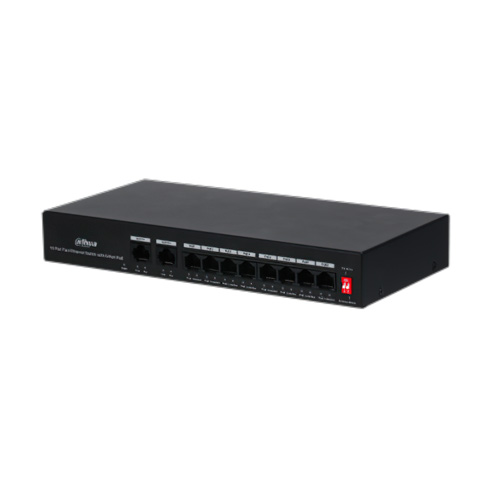

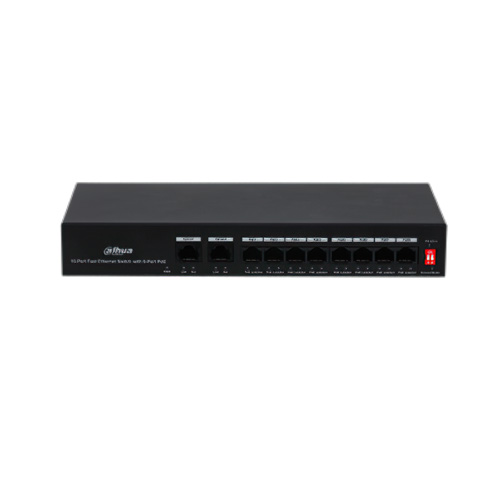

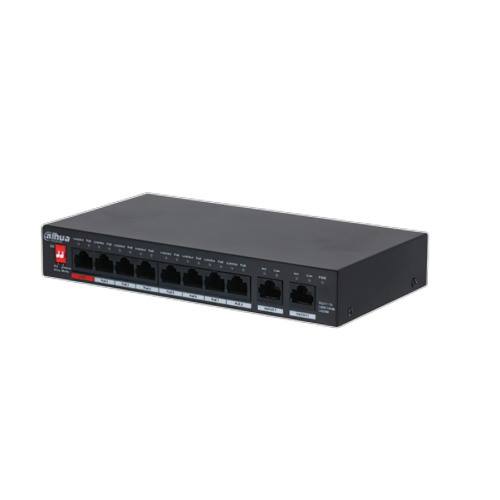

Dahua PFS3010-8ET-65 10-Port Fast Ethernet Switch with 8-Port PoE
Specifications
Hardware
- Data Transmission Port 8 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX
- Power Supply AC100–AC240V
- Operating Temperature -10°C to +55°C (-14°F–131°F)
- Operating Humidity 10%–90%
- Power Consumption Idling: 1.0W Full load: 65W
PoE
- PoE Budget Port1-8 ≤30W, whole PoE budget ≤65W
- PoE Standard IEEE802.3af, IEEE802.3at
- PoE Pin Assignment PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)
Performance
- Switching Capacity 2.0 Gbps
- Packet Forwarding Rate 1.49 Mpps
- MAC Table Size 2 K
- Jumbo Frame 2048 byte
- Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Performance
- ESD Air discharge: 8kV Contact discharge: 6kV
- Thunderproof Common mode: 6kV Differential mode: 4kV
- Net Weight 0.76 kg (1.68 lb)
- Gross Weight 1.3 kg (2.87 lb)
- Product Dimensions (W × L × H) 242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″)
- Packaging Dimensions (W × L × H) Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″) Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)
- Package 10 devices in one package
- Certifications CE: EN60950; FCC
| Weight | 5 kg |
|---|
