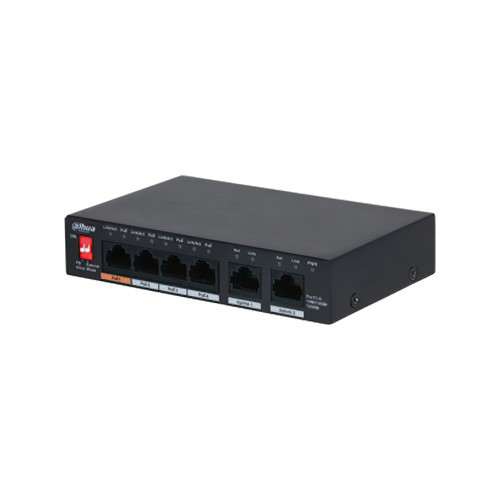

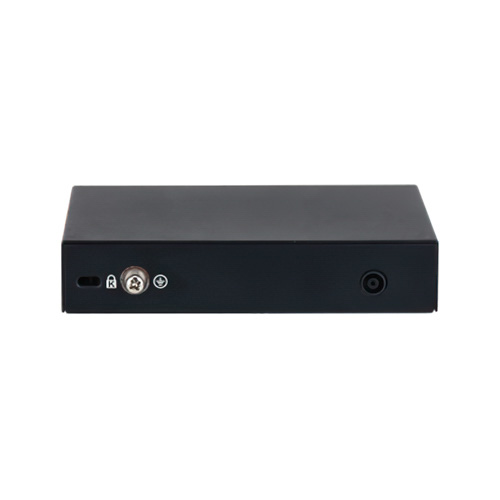

Dahua PFS3006-4GT-60 6-Port Unmanaged Desktop Switch with 4-Port PoE

  • Intelligent PoE
  • Hi-PoE 60W (orange port)
  • Long distance PoE
  • PoE watchdog
  • All-giga ports
  • Wide working temperature
SKU: DH-PFS3006-4GT-60 Categories: , ,

Specifications

Hardware Feature

  • Ethernet Port Port1-4: 4 × RJ-45 10/100/1000M (PoE) Port5-6: 2 × RJ-45 10/100/1000M (uplink)
  • PoE Power Consumption Port1≤ 60 W (Hi-PoE) Port2-4 ≤30 W Total≤60 W
  • Power Consumption Idling: 0.96 W Full load: 60 W
  • Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

PoE

  • PoE Protocol IEEE802.3af/ IEEE802.3at/ Hi-PoE
  • Power Supply Pin 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
  • Long Distance 250 m long distance PoE transmission
  • PoE Power Management Yes
  • PoE Watchdog Yes

Performance

  • Switching Capacity 14 Gbps
  • Packet Forwarding Rate 8.928 Mbps
  • Packet Buffer Memory 1 Mbit
  • MAC Address Table 2 K
  • Flow Control Enable by default
  • Working Temperature –10 °C to 55 °C (+14°F to +131°F)
  • Application Humidity 5%–95% (RH)

General

  • Power Input 48 V – 57 V DC
  • Lighting Protection Common mode: 4 kV Differential mode: 2 kV
  • ESD Protection Air discharge: 8 kV Contact discharge: 6 kV
  • Wall-mount Installation Yes
  • Anti-theft Lock Hole Yes
  • Weight 0.30 kg ( 0.64 lb)
  • Dimension 130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)
Weight 5 kg
