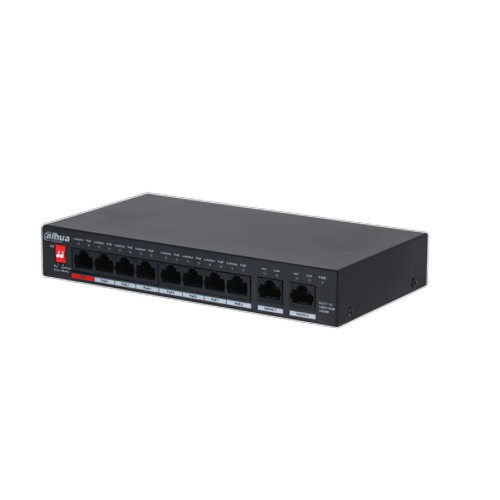

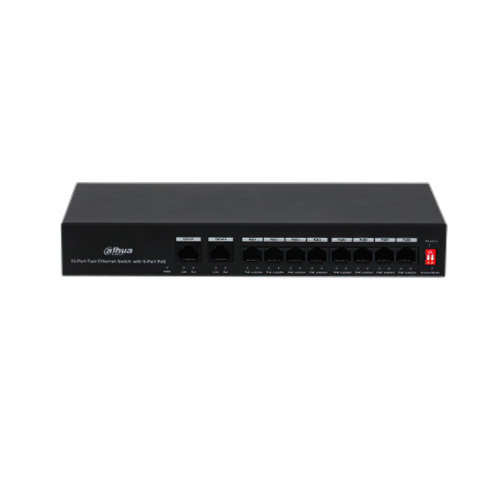

Dahua PFS3010-8ET-65 10-Port Fast Ethernet Switch with 8-Port PoE

  • Support eight 10/100M PoE power supply ports, and two 10/100M  uplink ports
  • Support 802.3af and 802.3at standards
  • Operating Temperature: -10°C to +55°C
  • Support 250 m long distance PoE tansmission
  • Support PoE watchdog
SKU: DH-PFS3010-8ET-65 Categories: , ,

Specifications

Hardware

  • Data Transmission Port 8 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX
  • Power Supply AC100–AC240V
  • Operating Temperature -10°C to +55°C (-14°F–131°F)
  • Operating Humidity 10%–90%
  • Power Consumption Idling: 1.0W Full load: 65W

PoE

  • PoE Budget Port1-8 ≤30W, whole PoE budget ≤65W
  • PoE Standard IEEE802.3af, IEEE802.3at
  • PoE Pin Assignment PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)

Performance

  • Switching Capacity 2.0 Gbps
  • Packet Forwarding Rate 1.49 Mpps
  • MAC Table Size 2 K
  • Jumbo Frame 2048 byte
  • Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

  • ESD Air discharge: 8kV Contact discharge: 6kV
  • Thunderproof Common mode: 6kV Differential mode: 4kV
  • Net Weight 0.76 kg (1.68 lb)
  • Gross Weight 1.3 kg (2.87 lb)
  • Product Dimensions (W × L × H) 242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″)
  • Packaging Dimensions (W × L × H) Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″) Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)
  • Package 10 devices in one package
  • Certifications CE: EN60950; FCC
Weight 5 kg
