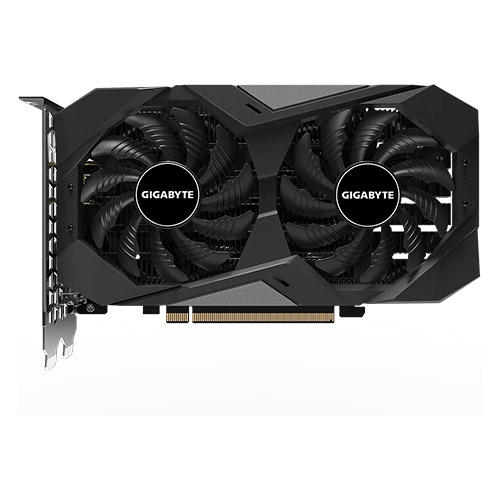

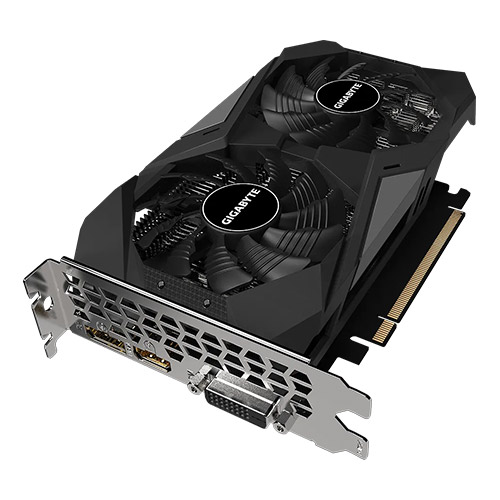

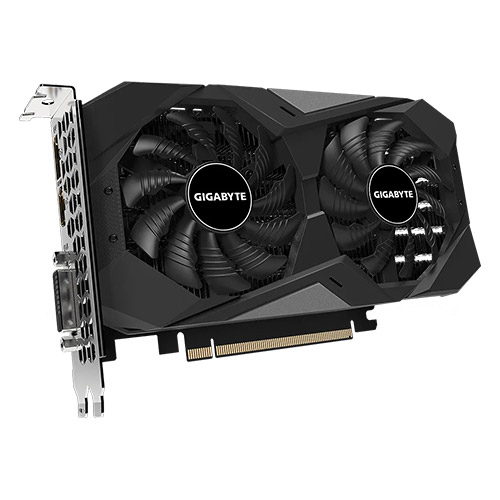

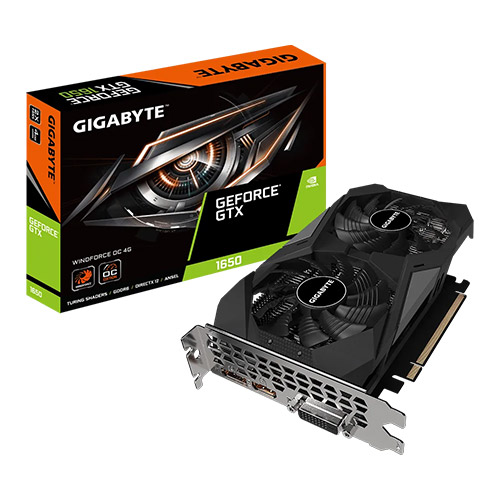

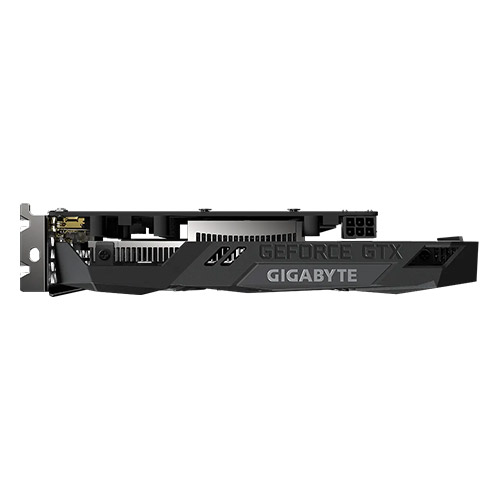

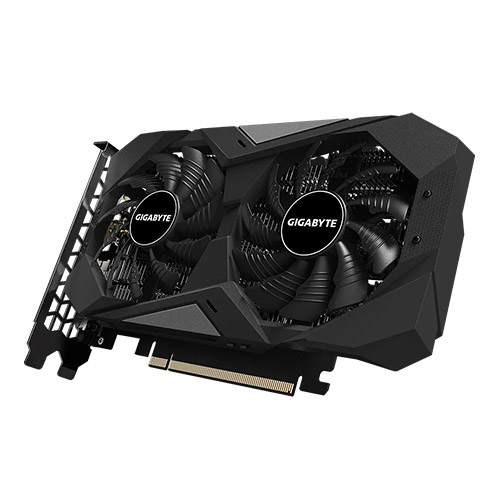

Gigabyte GeForce® GTX 1650 D6 WINDFORCE OC 4G

Specification:

• Graphics Processing GeForce® GTX 1650
• Core Clock 1710 MHz (Reference Card: 1590 MHz)
• CUDA® Cores 896
• Memory Clock 12000 MHz
• Memory Size 4 GB
• Memory Type GDDR6
• Memory Bus 128 bit
• Memory Bandwidth (GB/sec) 192 GB/s
• Card Bus PCI-E 3.0 x 16
• Digital max resolution 7680×4320@60Hz
• Multi-view 3
• Card size L=191 W=112 H=36 mm
• PCB Form ATX
• DirectX 12
• OpenGL 4.6



WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.



ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.



ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.



LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
