Gigabyte GeForce RTX™ 3050 EAGLE OC 8G

Specifications

Graphics Processing	GeForce RTX™ 3050
Core Clock	1792 MHz (Reference Card: 1777 MHz)
CUDA® Cores	2560
Memory Clock	14000 MHz
Memory Size	8 GB
Memory Type	GDDR6
Memory Bus	128 bit
Memory Bandwidth (GB/sec)	224 GB/s
Card Bus	PCI-E 4.0
Digital max resolution	7680×4320
Multi-view	4
Card size	L=213 W=120 H=41 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	450W
Power Connectors	8 pin*1
Output	DisplayPort 1.4a *2 HDMI 2.1 *2
Accessories	Quick guide



WINDFORCE 2X COOLING SYSTEM

The WINDFORCE 2X cooling system features 2X90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.



ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.



SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.



SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

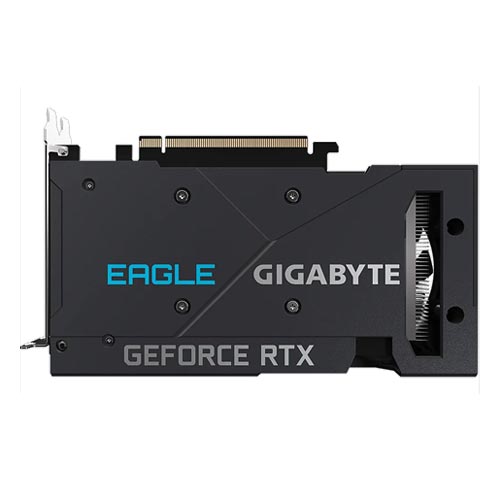

PROTECTION BACK PLATE

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
