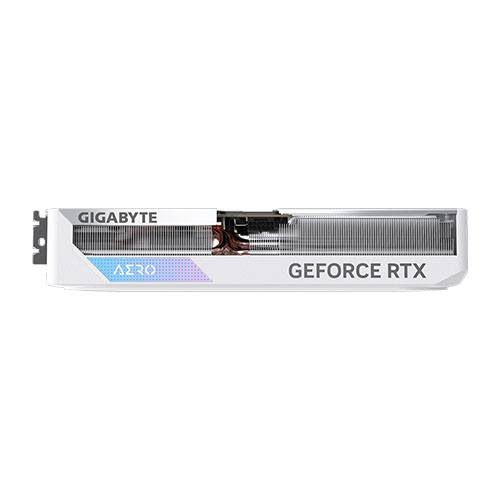

Gigabyte GeForce RTX™ 4070 AERO OC 12G Graphic Card

Specifications

Graphics Processing	GeForce RTX™ 4070
Core Clock	2565 MHz (Reference Card: 2475 MHz)
CUDA® Cores	5888
Memory Clock	21 Gbps
Memory Size	12 GB
Memory Type	GDDR6X
Memory Bus	192 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680×4320
Multi-view	4
Card size	L=300 W=130 H=57.6 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	700W
Power Connectors	16 pin*1
Output	DisplayPort 1.4a *3 HDMI 2.1a *1
Accessories	1. Quick guide 2. Warranty registration 3. One 16-pin to two 8-pin power adaptor



Features

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4070
• Integrated with 12GB GDDR6X 192bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS
• Protection metal back plate



Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers



WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.



ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.



SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.



LARGE COPPER PLATE & HEAT-PIPE

The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.



RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.



PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.



POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.



ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
