Gigabyte GeForce RTX™ 4070 Ti EAGLE OC 12G Graphic Card

Specifications

Graphics Processing	GeForce RTX™ 4070 Ti
Core Clock	2625 MHz (Reference card : 2610 MHz)
CUDA® Cores	7680
Memory Clock	21 Gbps
Memory Size	12 GB
Memory Type	GDDR6X
Memory Bus	192 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680×4320
Multi-view	4
Card size	L=301 W=136 H=58 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	750W
Power Connectors	16 pin *1

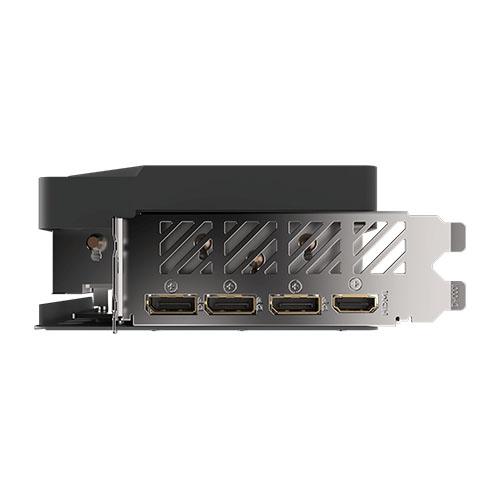

Output	DisplayPort 1.4 *3 HDMI 2.1 *1
Accessories	1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide 4. One 16-pin to two 8-pin power adaptor



KEY FEATURE

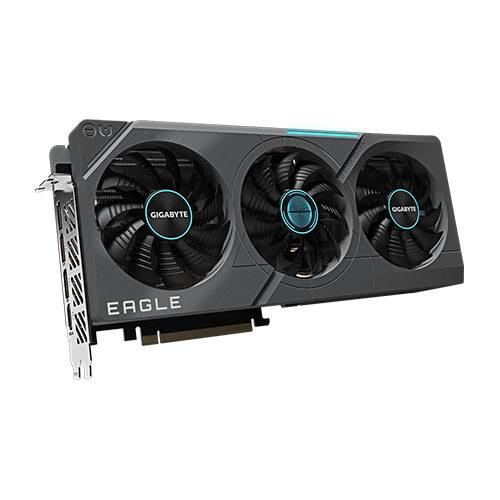

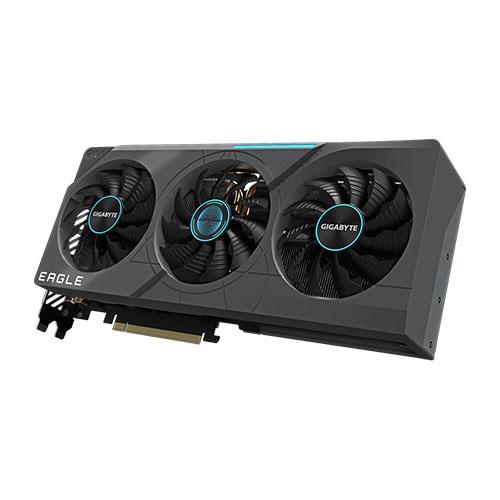

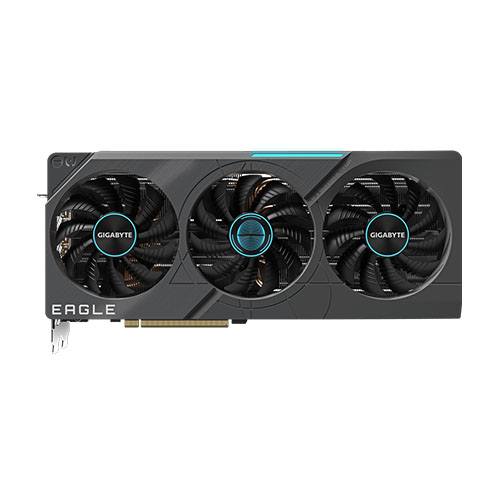

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 6 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.



ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.



VAPOR CHAMBER & HEAT-PIPE

The vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.



SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.



RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.



ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
