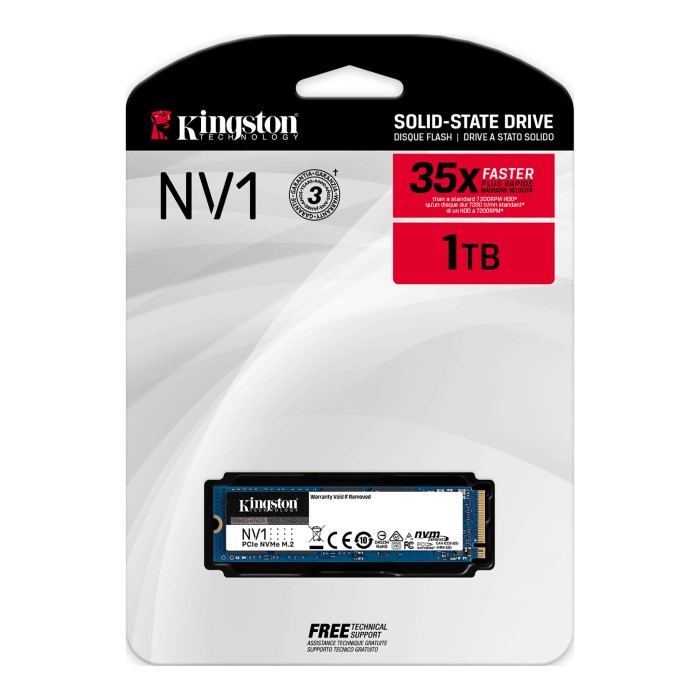

NV1 NVMe PCIe
SSDEfficient performance for thinner notebooks and systems
Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write1 speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.
Available in capacities from 500GB – 2TB2 to give you all the space you need for applications, documents, photos, videos, and more.
- NVMe PCIe SSD Performance
- Ideal for laptops & small form factor PCs
- Capacities up to 2TB
Specifications
| Form Factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
| Capacities2 | 500GB, 1TB, 2TB |
| Sequential Read/Write1 | 2100/1700MB/s (all capacities) |
| Endurance3 | 500GB – 120TBW 1000GB – 240TBW 2000GB – 480TBW |
| Power Consumption | 500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write 1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write 2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write |
| Storage Temperature | -40°C~85°C |
| Operating Temperature | 0°C~70°C |
| Dimensions | 22mm x 80mm x 2.1mm |
| Weight | 7g (All capacities) |
| Vibration Operating | 2.17G (7-800 Hz) |
| Vibration Non-operating | 20G (20-1000Hz) |
| Warranty/Support4 | Limited 3-year warranty with free technical support |
| Weight | 0.5 kg |
|---|---|
| Capacity | 500GB, 1TB, 2TB |
