Lenovo ThinkPad Universal USB-C Dock – 40AY0090UK

  • One cable, endless capabilities
  • Compact design, Lenovo brand
  • Enterprise networking and security
  • Color Black
  • Max Number of External Monitors 3
SKU: 40AY0090UK Categories: , ,

Specifications

Color Black
Max Number of External Monitors 3
New Weight 340 g
Refresh Rate 2x 3840×2160 @60 Hz, 1x 3840×2160 @30 Hz
AC Plug Slim-tip
Output Power 130W
Brand ThinkPad
OS Requirements Windows 11, Windows 10, Windows 7
Packed Weight 955 g
Agency Approvals
FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Audio Ports 1x Combo Audio Jack
Charging Port DC-IN
USB Ports 3x USB3.1, 2x USB2.0, 1x USB-C

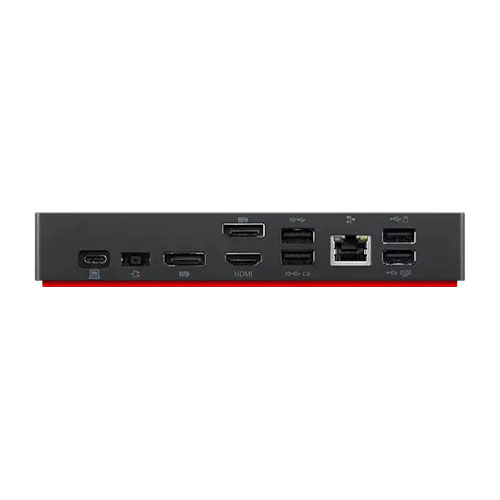

Video Ports 2x Display Port; 1x HDMI Port
Ethernet Gigabit Ethernet
Package Type Brown Box
Packed Dimensions (L x D x H) 210mm x 158mm x 75mm
Height 30.75 mm (1.21 in)
New Cable Length 171 mm
Depth 80 mm (3.14 in)
Maximum Operating Temperature 35°C
Minimum Operating Temperature 0°C
Maximum Relative Humidity (%) 0.95
Minimum Relative Humidity (%) 20%
Driver Needed Yes
Input Power 90W
Physical Security Feature 2x Security lock slot
Power Button Yes
Power Delivery Yes



Overview

THE SMARTER WAY TO WORK Introducing the ThinkPad Universal USB-C Dock. This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). Smart enough to install critical firmware updates automatically, it is ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more. ;; * The in-box 90W power adapter charges ThinkPad and other USB-C notebooks up to 65W. For 100W charging, an optional slim tip 135W power adapter is required (PN: 4X20E50558 (US) / 4X20E505xx). Sold separately.

ThinkPad Universal USB-C Dock_blade 1.png

One Dock. No Limits.

Engineered for performance and productivity, the ThinkPad Universal USB-C Dock is compatible with most Windows 10 and above USB-C notebooks. Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.



One Cable. No Hassle.

With the convenience of 11+ ports, including DisplayPort™ and HDMI™, the ThinkPad Universal USB-C Dock gives you exceptional versatility. It lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced onecable docking solution gives you more desk-space to work and play with.



One Remote Workforce. No Problem.

Remote dock management just got a whole lot smarter. Thanks to Dock Manager and our latest hardware, firmware updates can be done without any end-user interruption, which means productivity is never compromised

Weight 5 kg
