Specifications
| Model | O11 AIR / O11 AIR RGB |
| Case Type | Tower Chassis |
| Structure | Dual chamber |
| Dimensions | (W)272mm x(H)465mm x(D)476mm |
| Case weight | 9.5kg |
| Color | Black |
| Material | (Front)Plastic, (Side)Tempered Glass, (Body)Steel |
| Expansion Slot | 8 |
| 2.5” SSD | 6 |
| 3.5” HDD | 3 |
| I/O Ports, | USB3.0 x2 ,USB3.1 Type-C x1 , HD Audio |
| M/B Type | E-ATX / ATX / Micro-ATX |
| Fan | O11 AIR : 2x 120mm PWM fans included
and 1x120mm fan option or 140mm x 2 on the top (option) , middle 3x 120 mm (option),bottom 3x120mm(option), Front 3x120mm O11 AIR RGB : 2x 120mm PWM fans included and 1x120mm fan option or 140mm x 2 on the top (option) , middle 3x 120 mm (option),bottom 3x120mm(option), Front 3x120mm RGB Fans included or 2x 140 mm option |
| Radiator | 120x 360mm / 120x 240mm / 140x 280mm |
| VGA Card | length ≤420mm , height ≤159mm |
| CPU Cooling | ≤155mm |
| PSU | 2 (Optional)，(L)210mm~255mm(max) |
| Filter | (Top) x1，(Side) x2, (Bottom) x1 |
O11 Air
Unleash the Airflow Potential
O11 AIR is crafted to test the limit of airflow. It is the Modern representation of functional workstation. With dual chamber and the multiple fans set up, O11 AIR is capable to unleash the full potential of cooling, crafted to test the limit of airflow.
With dual chamber and the multiple fans set up, O11 AIR is meau to unleash the full potential of cooling.
Patented Designed Glass Mounting Mechanism
The two bolt on the steel pieces adhering on the glass secure the panel with ease
The Potential of Mounting Multiple Rads
Top/Bottom/Side can be mounted for up to three 360 Radiators ,and Front mentating also serves additional location for 240/280 /360/radiators.
Dual PSU Capability for efficiency
The drive caddy can be swapped for second PSUs or can be switched to the lower position.
Compartmentalized Direct Intake
Differentiating from the O11 Dynamic, the O11 AIR has different front intake to push to the limit of cooling even higher.
Double Layer Cable Management Design

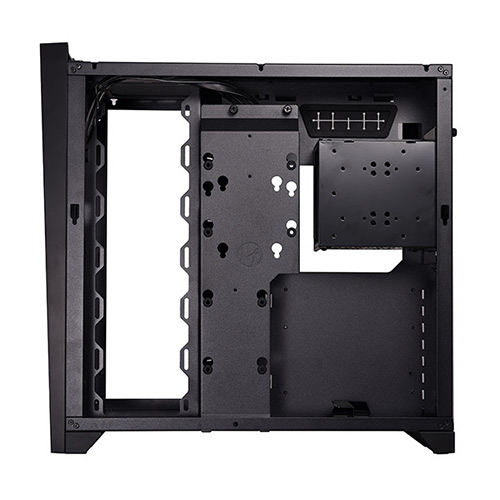

The angled motherboard tray and the back side cable management bar conceal the and exclude any cable mess
6 Hard Drive Capability
Support up to 6 SSD, and 3 HDD
5 x Dust Filter, Complete Dust Protection
Forward/Bottom/Top/Side panels are all equipped with magnetic dust filters to prevent any dust infiltration
Germany Engineering Approved
The O11 AIR is developed in collaboration with world-famous overclocker DER8AUER of Germany for experienced gamers. DER8AUER has been a key developer of excellent cooling solutions and has lent his years of experience in crafting the new O11 AIR from Lian Li. With his input, DER8AUER puts his seal of approval in the magnificent box design of the O11 AIR with his logo emblazoned in the chassis.
| Weight | 5 kg |
|---|
