Cooler Master Case H500P ARGB Case
MASTERCASE H500P ARGB
MIND-BLOWING DESIGN
Dual 200mm ARGB Fans
Build By Design
ARGB Lighting System
Tempered Glass Side Panel
YEAH, YOU’RE SEEING DOUBLE.

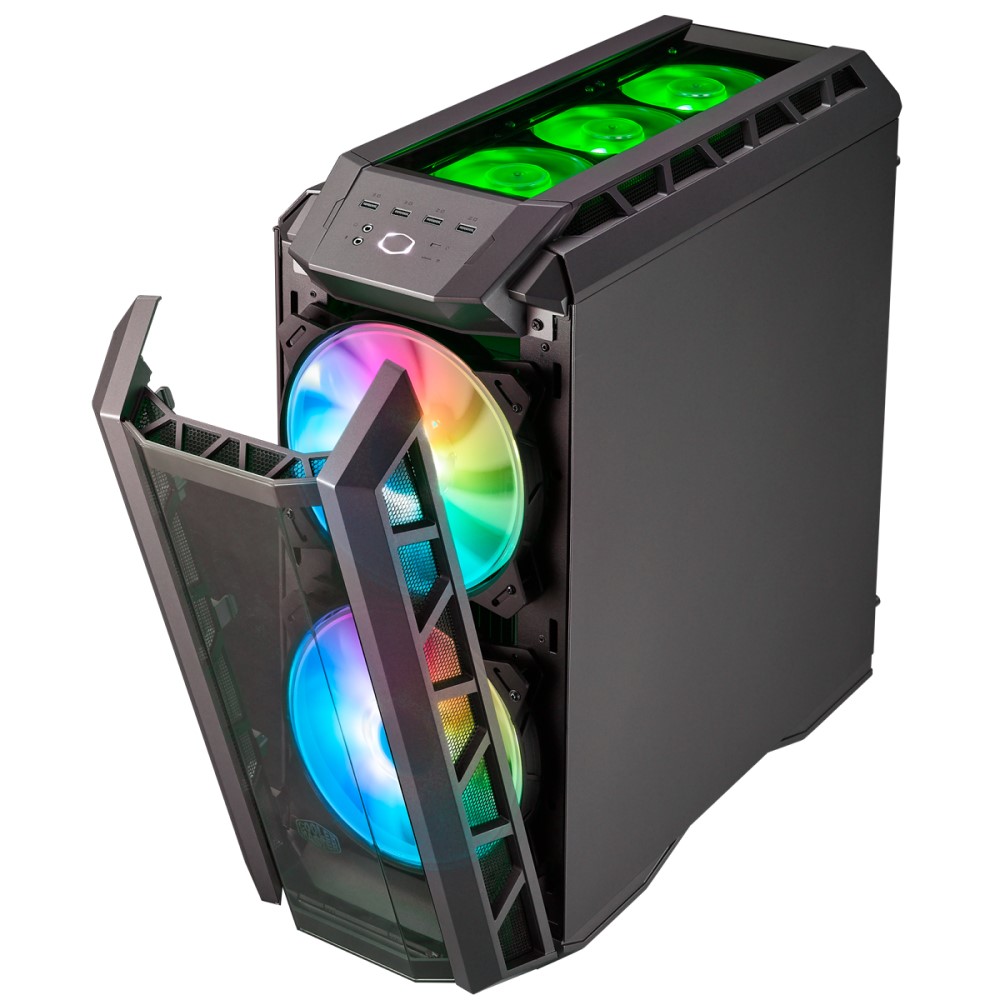

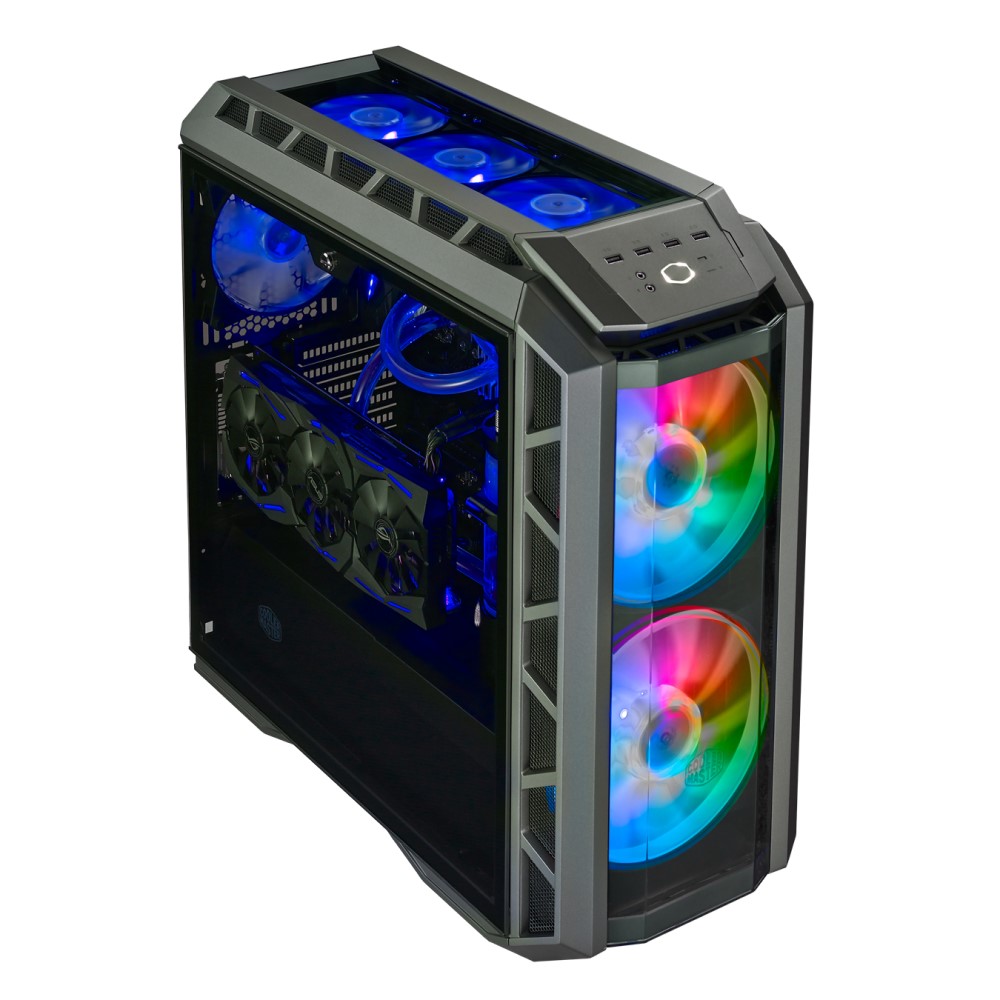

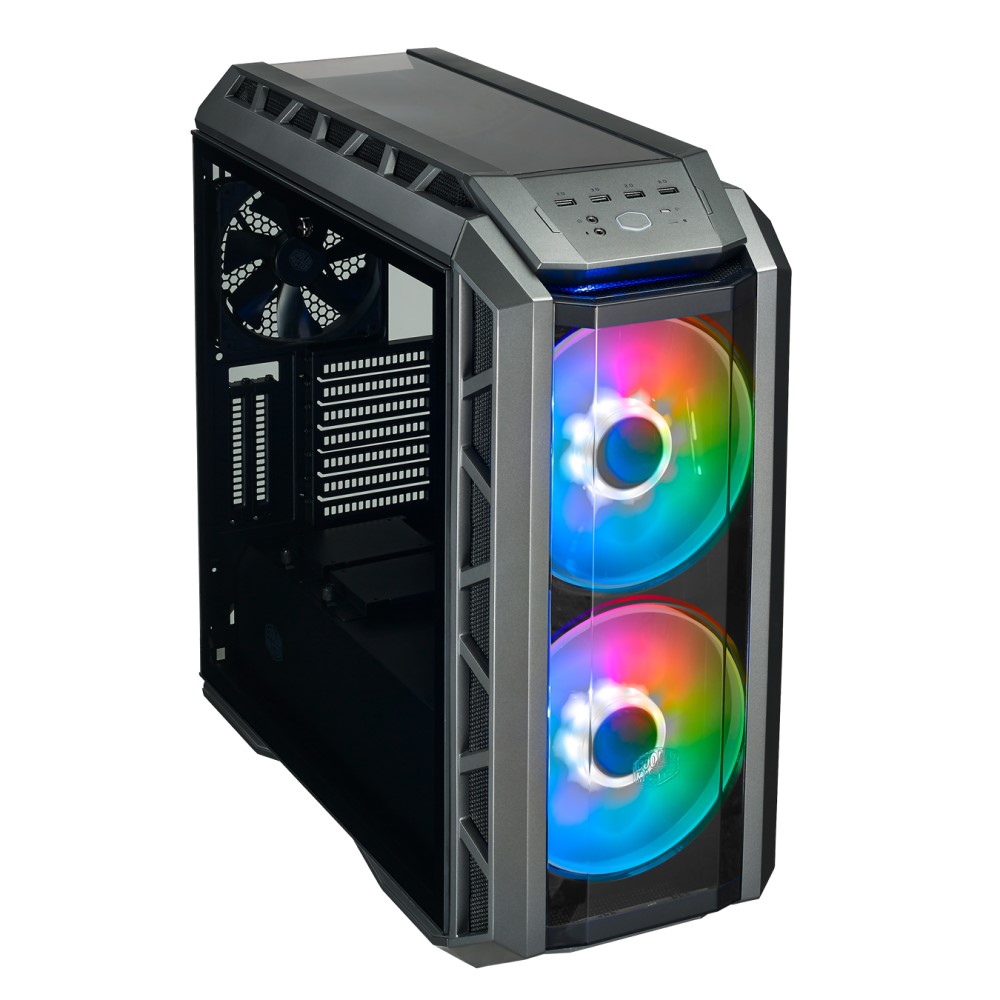

Dual 200mm fans take the center-stage in the MasterCase H500P ARGB. Airflow is provided through mesh ventilation that spans the entire perimeter of the top and front panels, designed with an industrial construction testifying to a form that follows function.
Evolving the design even further, the two 200mm fans now come standard with addressable RGB lighting to offer the utmost in customization. Two optional 200mm fans can be installed on the top panel, with full support for 360mm radiators in the top and front for enthusiast-grade cooling potential and a gaming rig that knows no limits.

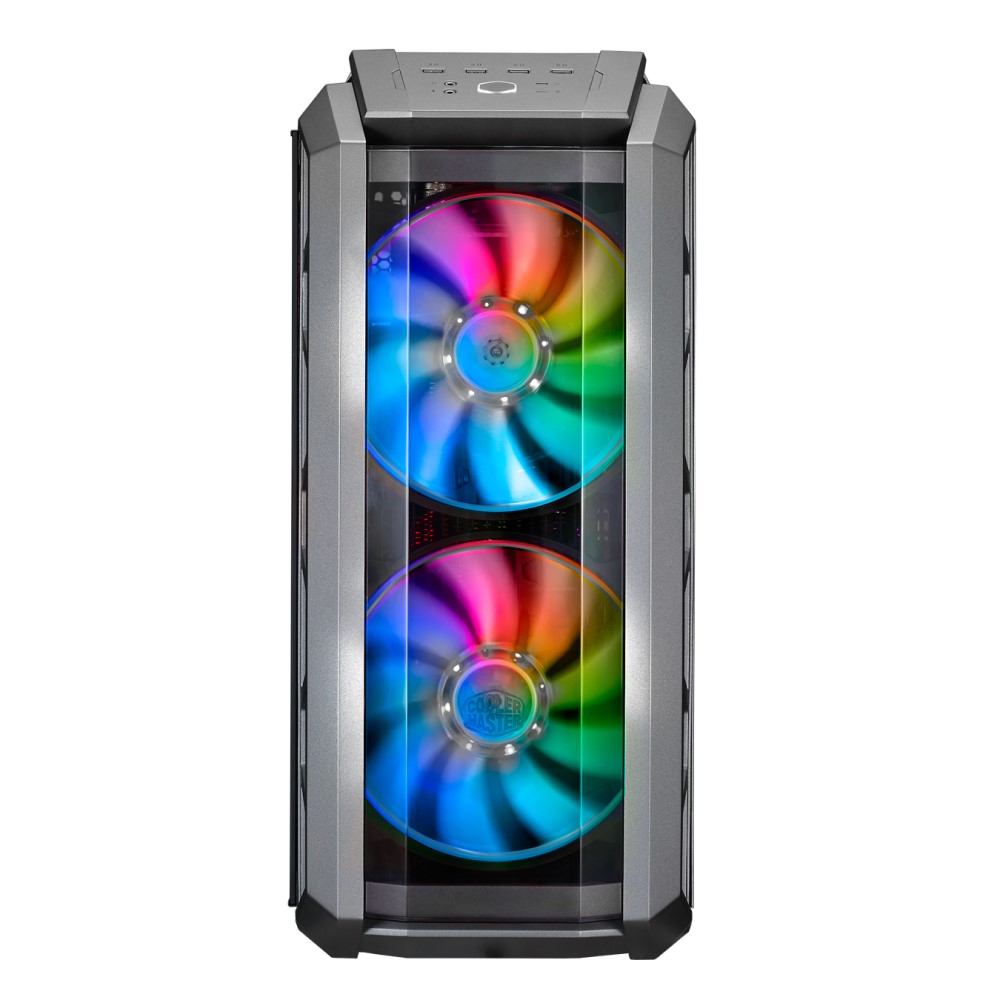

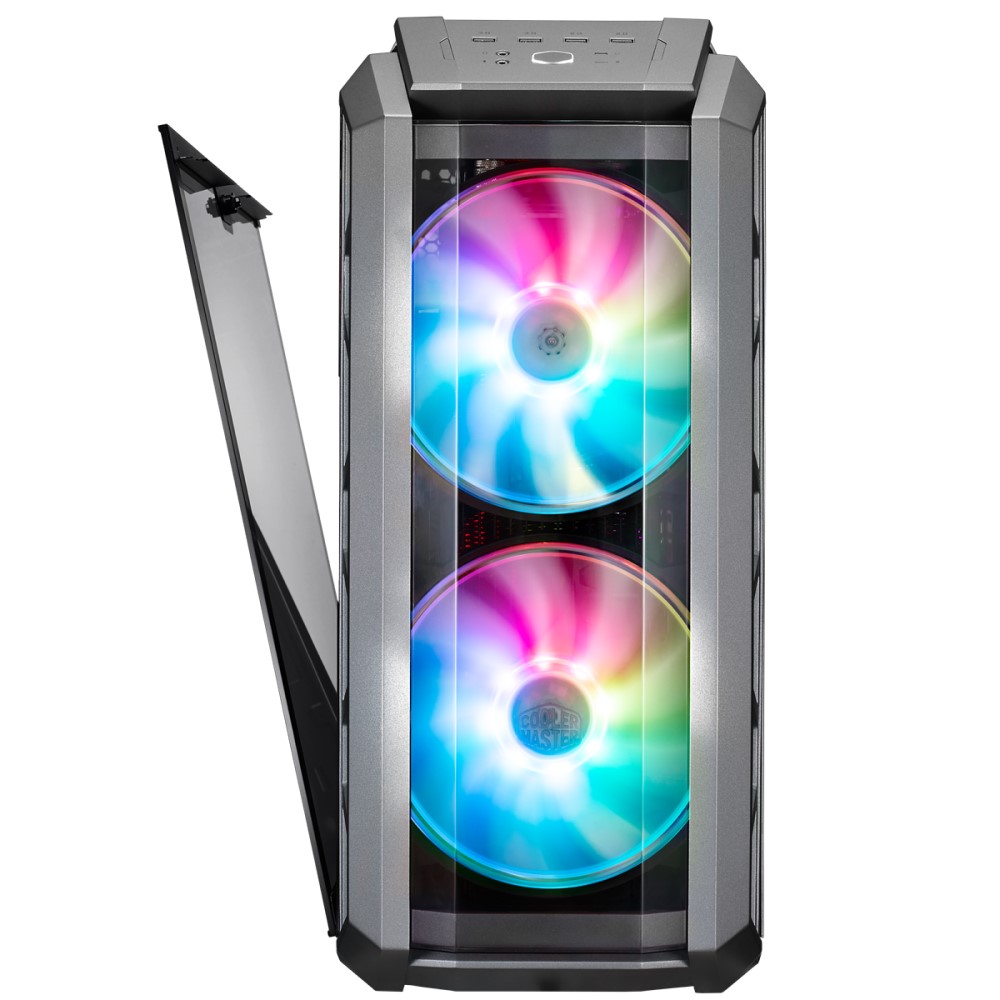

DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.
BUILD BY DESIGN
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.
ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

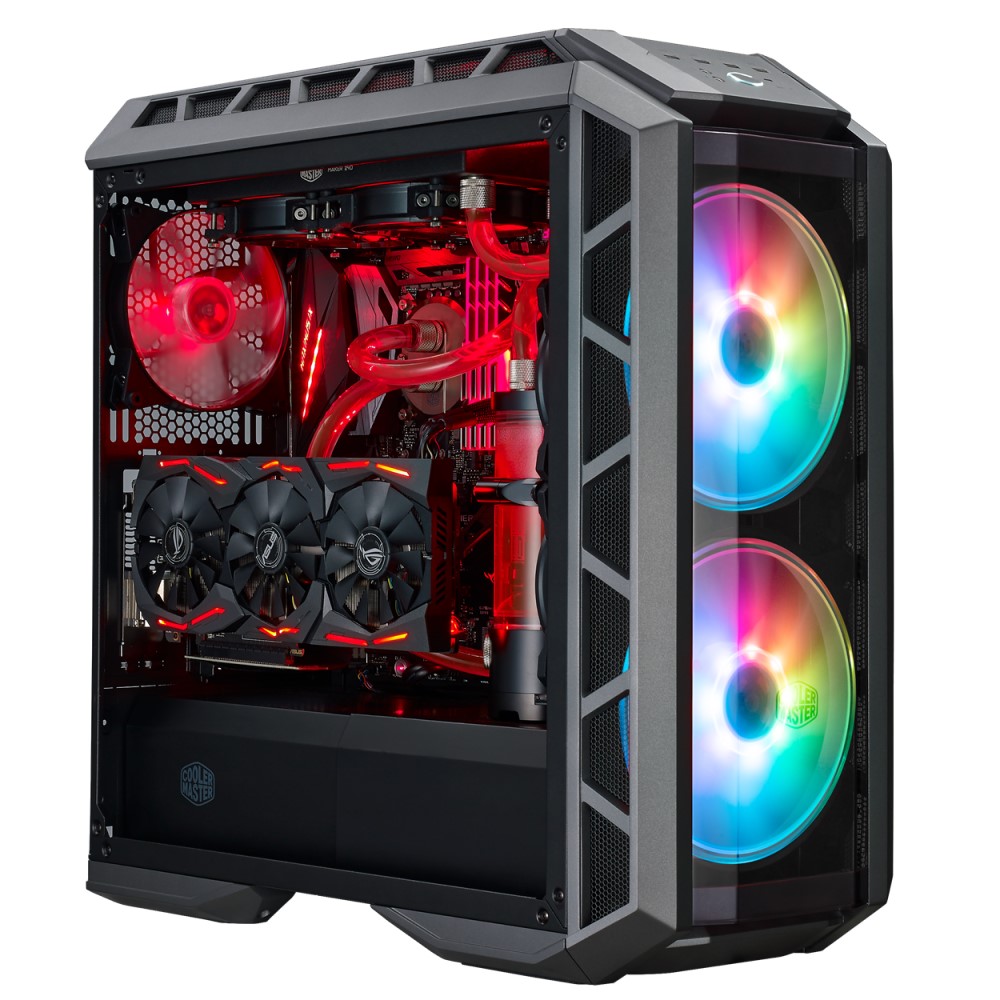

TEMPERED GLASS SIDE PANEL
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
ARGB CONTROLLER
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
SPECIFICATIONS
- MODEL NUMBER
- MCM-H500P-MGNN-S01
- SERIES
- MasterCase Series
- SIZE
- Mid Tower
- AVAILABLE COLOR(S)
- Gun Metal / Black
- MATERIALS
- Steel, Plastic, Tempered Glass, Mesh
- DIMENSIONS (L X W X H)
- 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch
- WEIGHT
- 11.3 kg
- MOTHERBOARD SUPPORT
- Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
- EXPANSION SLOTS
- 7+2, (Supports vertical graphics card installation)
- 5.25″ DRIVE BAYS
- N/A
- 2.5″ / 3.5″ DRIVE BAYS (COMBO)
- 2
- 2.5″ DRIVE BAYS
- 2
- I/O PANEL
- 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
- PRE-INSTALLED FANS – FRONT
- 2x 200mm ARGB Fan
- PRE-INSTALLED FANS – REAR
- 1x 140mm, 1200RPM
- FAN SUPPORT – TOP
- 3x 120/140mm, 2x 200mm
- FAN SUPPORT – FRONT
- 3x 120/140mm, 2x 200mm
- FAN SUPPORT – REAR
- 1x 120/140mm
- RADIATOR SUPPORT – TOP
- 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – FRONT
- 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – REAR
- 120mm, 140mm
- CLEARANCE – CPU COOLER
- 190mm
- CLEARANCE – PSU
- 220mm
- CLEARANCE – GFX
- 412mm
- DUST FILTERS
- Top, Front, Bottom
- POWER SUPPLY SUPPORT
- Bottom mount, ATX
- WARRANTY
- 2 years
Weight | 0.5 kg |
---|
