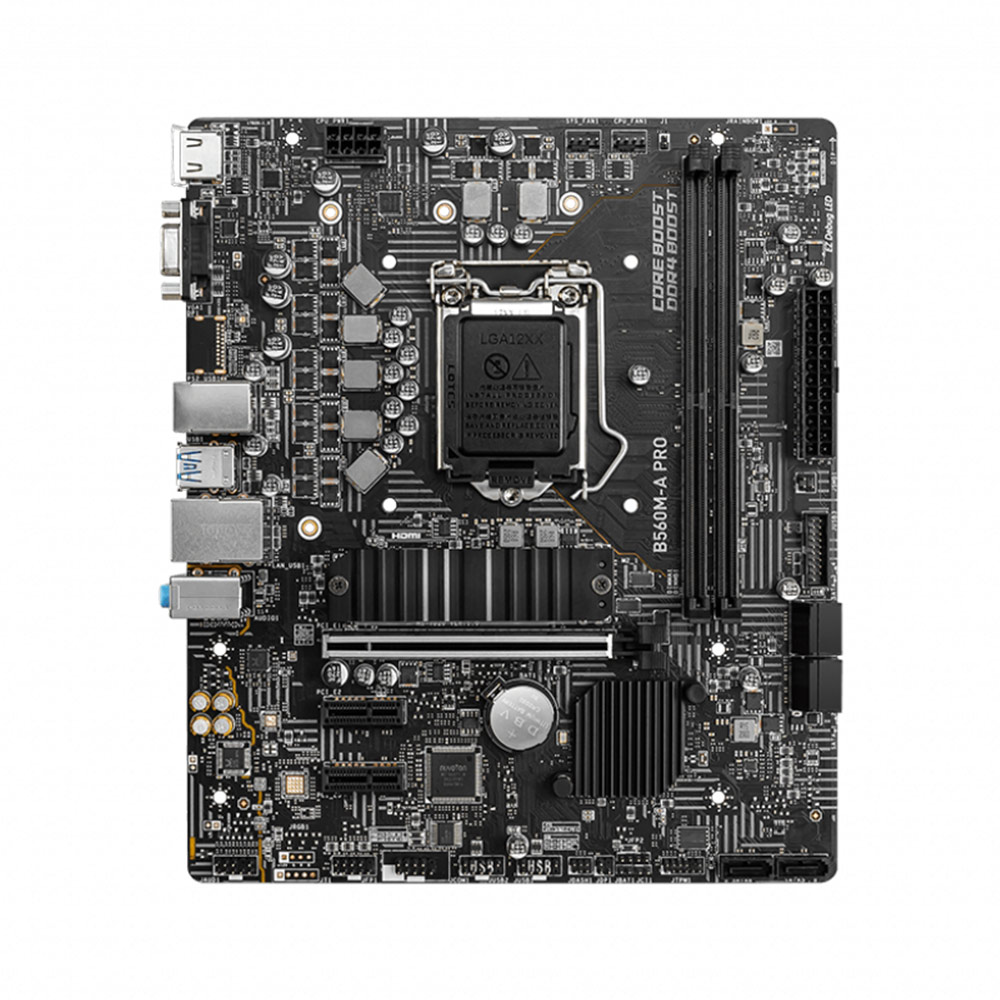

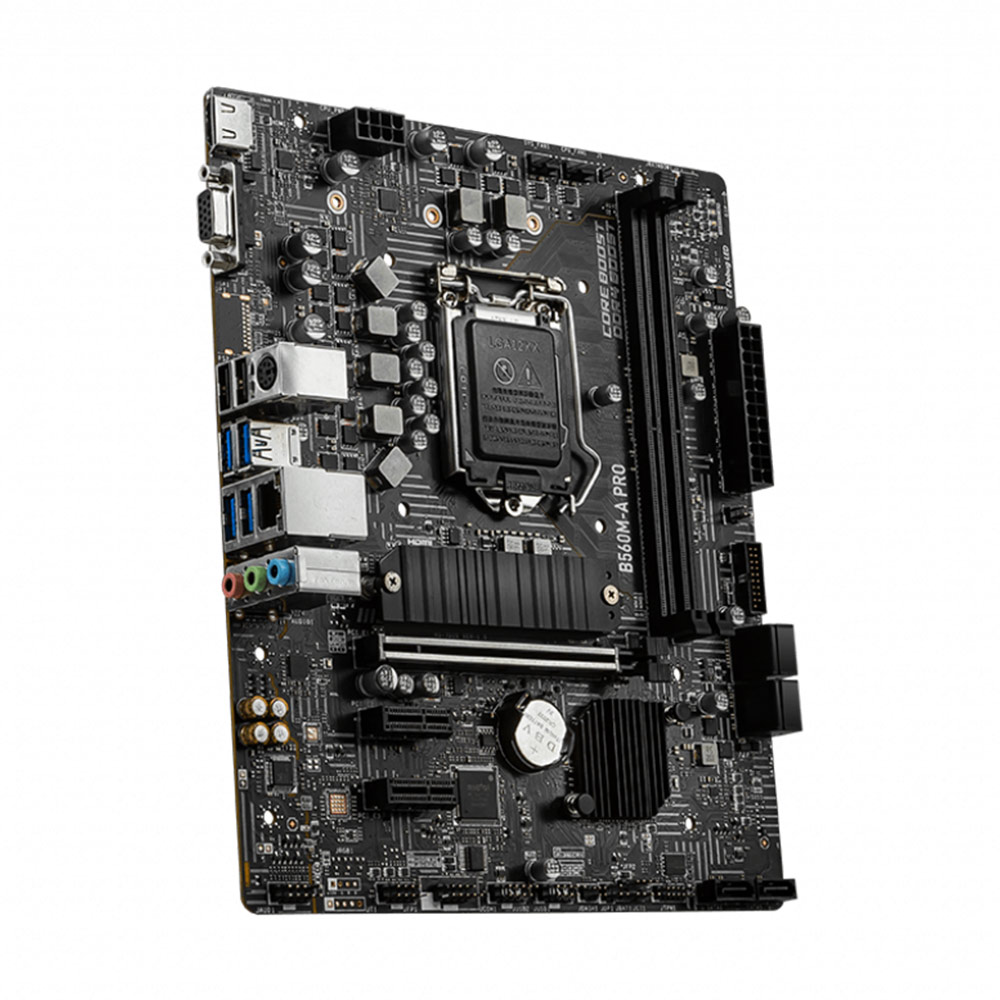

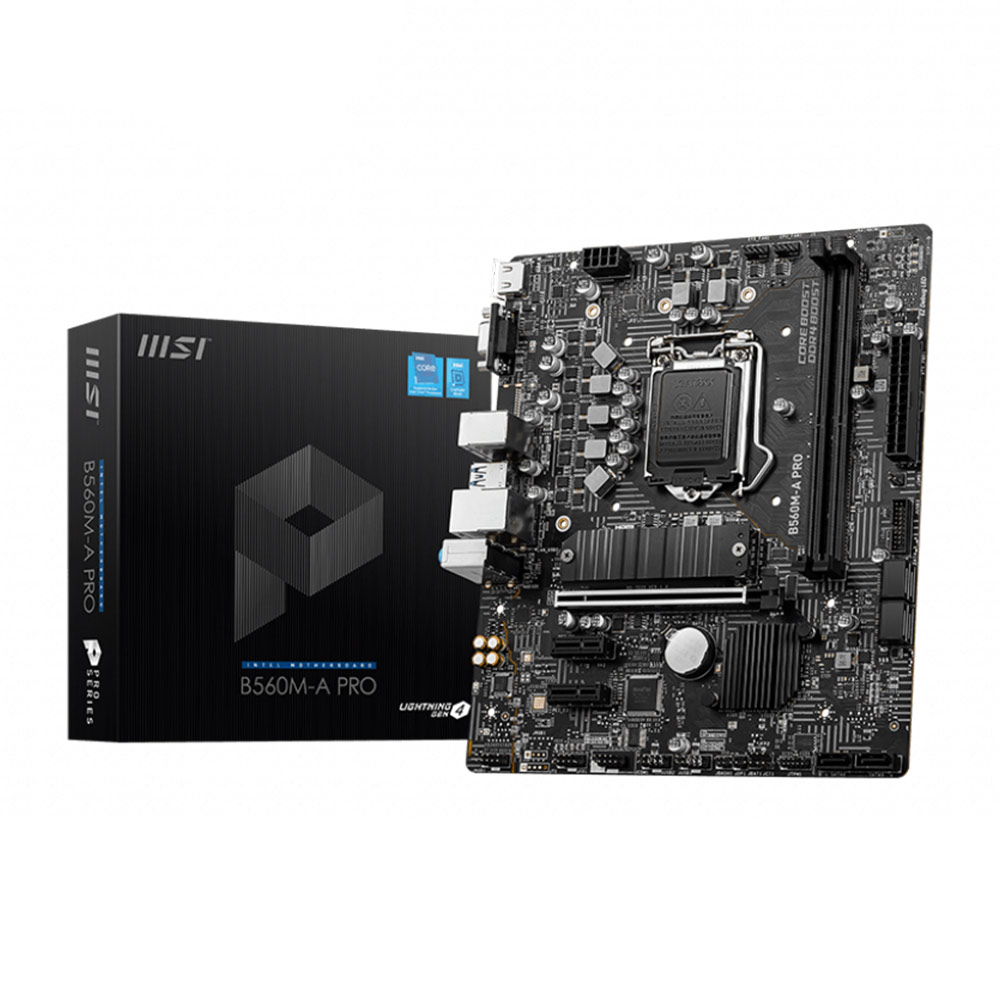

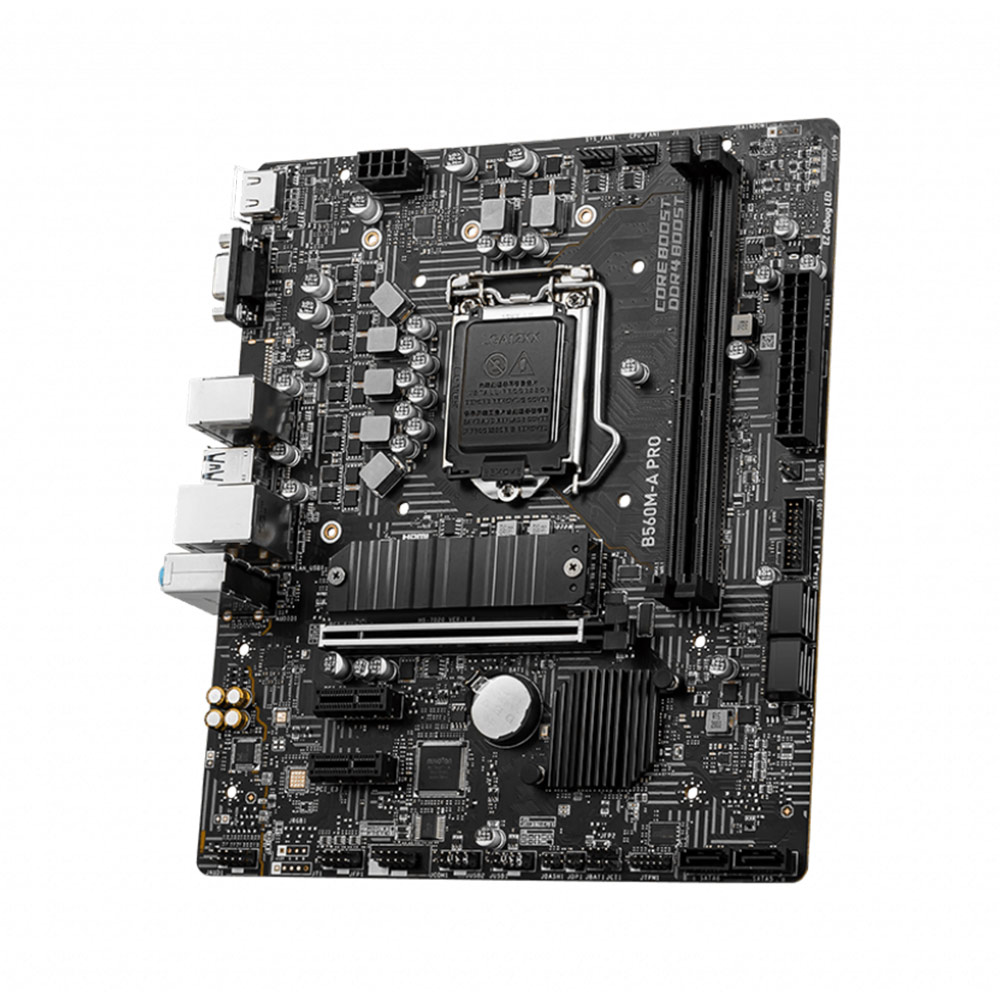

Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel® B560 Chipset |
| DDR4 Memory |
5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| Memory Channel | Dual |
| DIMM Slots | 2 |
| Max Memory (GB) | 64 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen4 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 1 |
| TPM (header) | 1 |

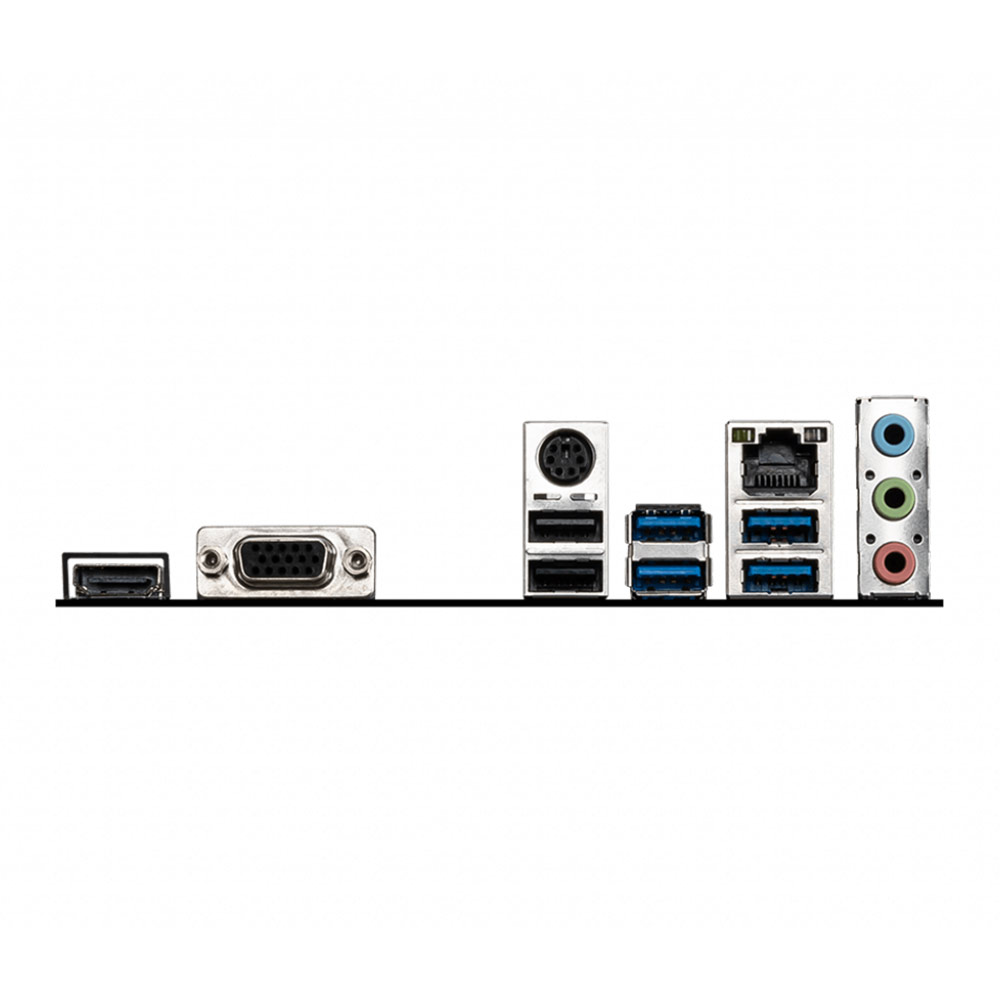

| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| USB 3.2 ports (Front) | 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 4(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Serial ports(Front) | 1 |
| Audio ports (Rear) | Realtek® ALC897 Codec |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | MATX |
| Operating System | Support for Windows® 10 64-bit |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automaticaly
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
| Weight | 0.5 kg |
|---|
