MSI GeForce GT 1030 AERO ITX 2GD4 OC Graphic Card

Specifications

Model Name	GeForce® GT 1030 AERO ITX 2GD4 OC
Graphics Processing Unit	NVIDIA® GeForce® GT 1030
Interface	PCI Express 3.0 x16 (uses x4)
Core Clocks	1189 MHz / 1430 MHz
CUDA® CORES	384 Units
Memory Speed	2100 MHz
Memory	2GB DDR4
Memory Bus	64-bit

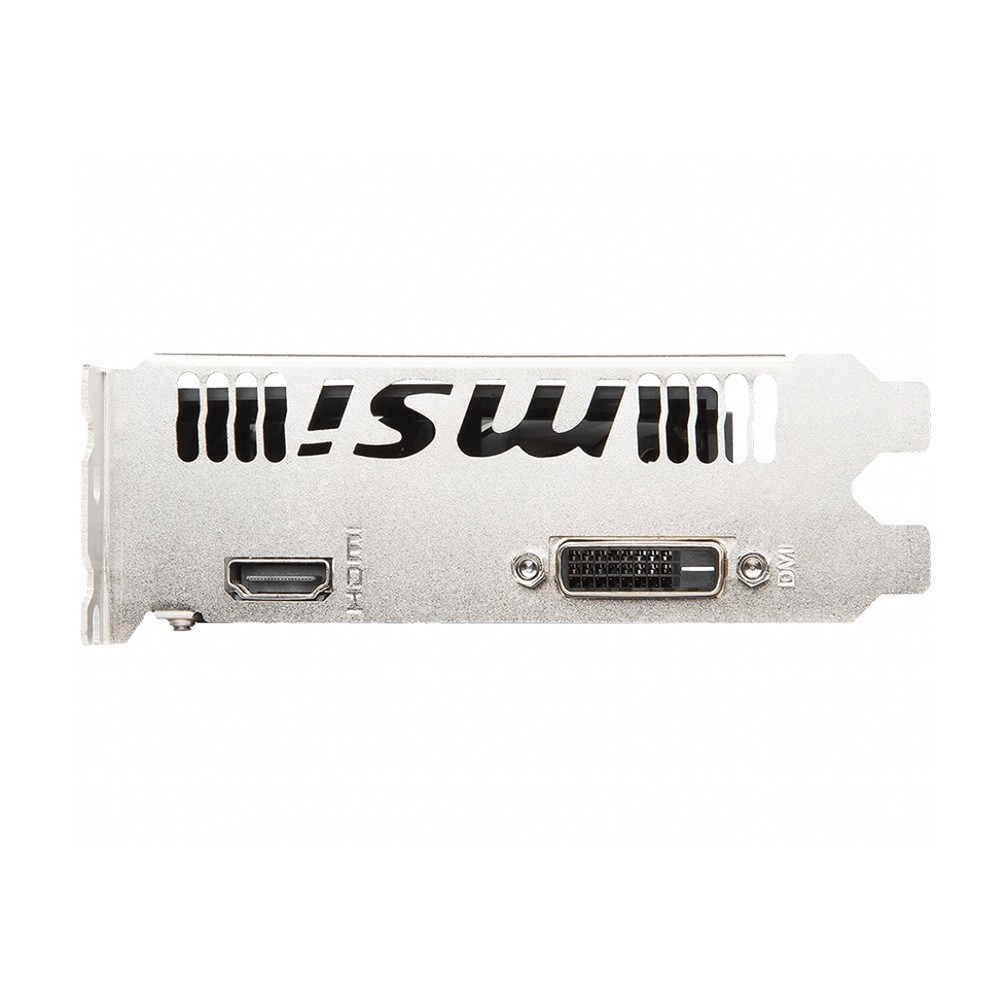

Output	HDMI (Supports 4K@60Hz as specified in HDMI 2.0b) SL-DVI-D
HDCP Support	2.2
Power consumption	20 W
Recommended PSU	300 W
Card Dimension (mm)	147 x 102 x 38 mm
Weight (Card / Package)	281 g / 507 g
DirectX Version Support	12
OpenGL Version Support	4.5
Afterburner OC	Y
Maximum Displays	2



Core/Memory

• Boost Clock / Base Clock
  1430 MHz / 1189 MHz
• 2GB DDR4 / 2100 MHz Memory

All Solid Capacitors

• 10 years long lifetime under full load.
• Lower temperature and higher efficiency.
• Aluminum core for higher stability.

Afterburner Overclocking Utility

• Wireless control through Android/iOS devices.
• Predator: In-game video recording.

GeForce Experience

• Ensures the best gaming experience by automatically updating users’ game-ready drivers.
• Allows users to optimize the game settings to their PC with a single click.



PERFECT IN ANY CASE

The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.



SMALL PACKAGE, BIG PUNCH

The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.



MILITARY CLASS 4 COMPONENTS

One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.



AFTERBURNER

MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
