Specifications
| Model Name |
GeForce RTX™ 3070 VENTUS 3X 8G OC LHR |
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 3070 |
| Interface | PCI Express® Gen 4 |
| Core Clocks | 1755 MHz |
| CUDA®CORES | 5888 Units |
| Memory Speed | 14 Gbps |
| Memory | 8GB GDDR6 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power consumption | 220 W |
| Power connectors | 8-pin x 2 |
| Recommended PSU | 650 W |
| Card Dimension (mm) | 305 x 121 x 52 mm |
| Weight (Card / Package) | 991.6g / 1586.6g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-SYNC® technology | Y |
| Adaptive Vertical Sync | Y |
| Digital Maximum Resolution | 7680 x 4320 |
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
GRAPHENE BACKPLATE
A lightweight composite Graphene backplate reinforces the length of the graphics card while providing passive thermal conduction properties.

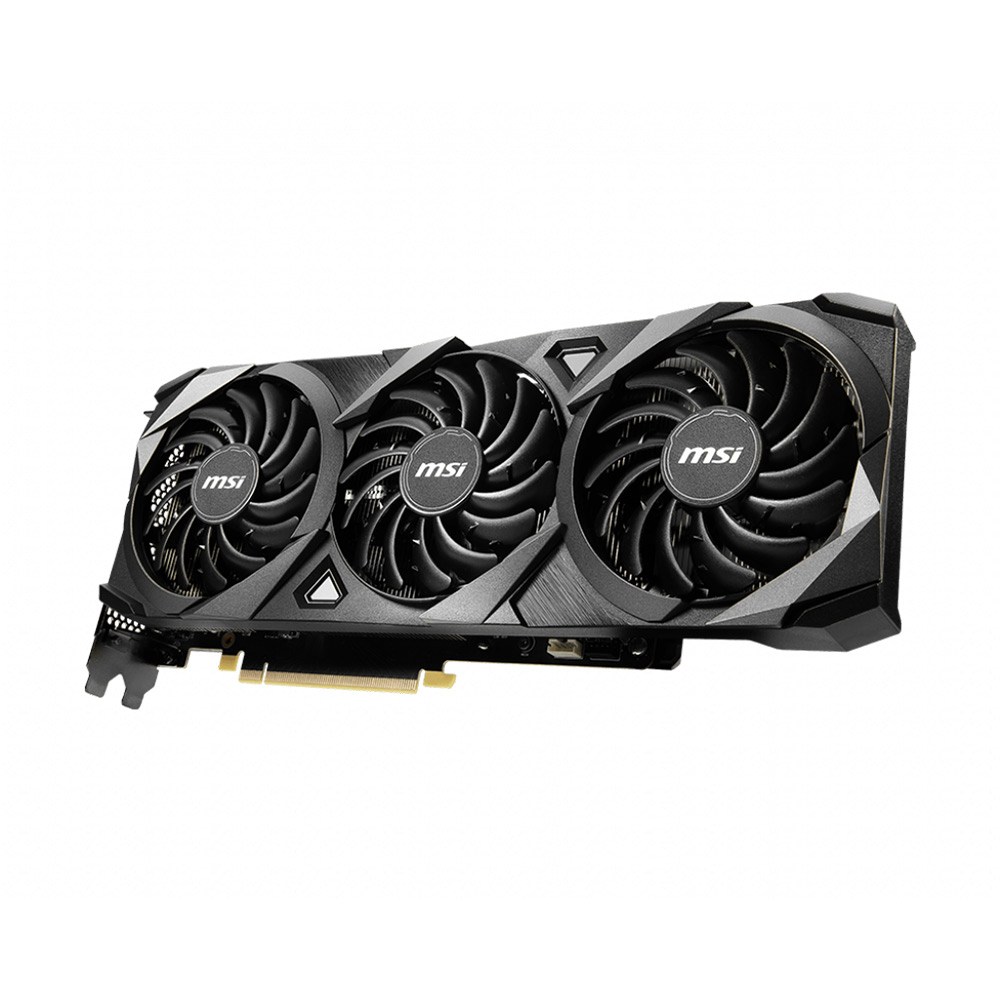

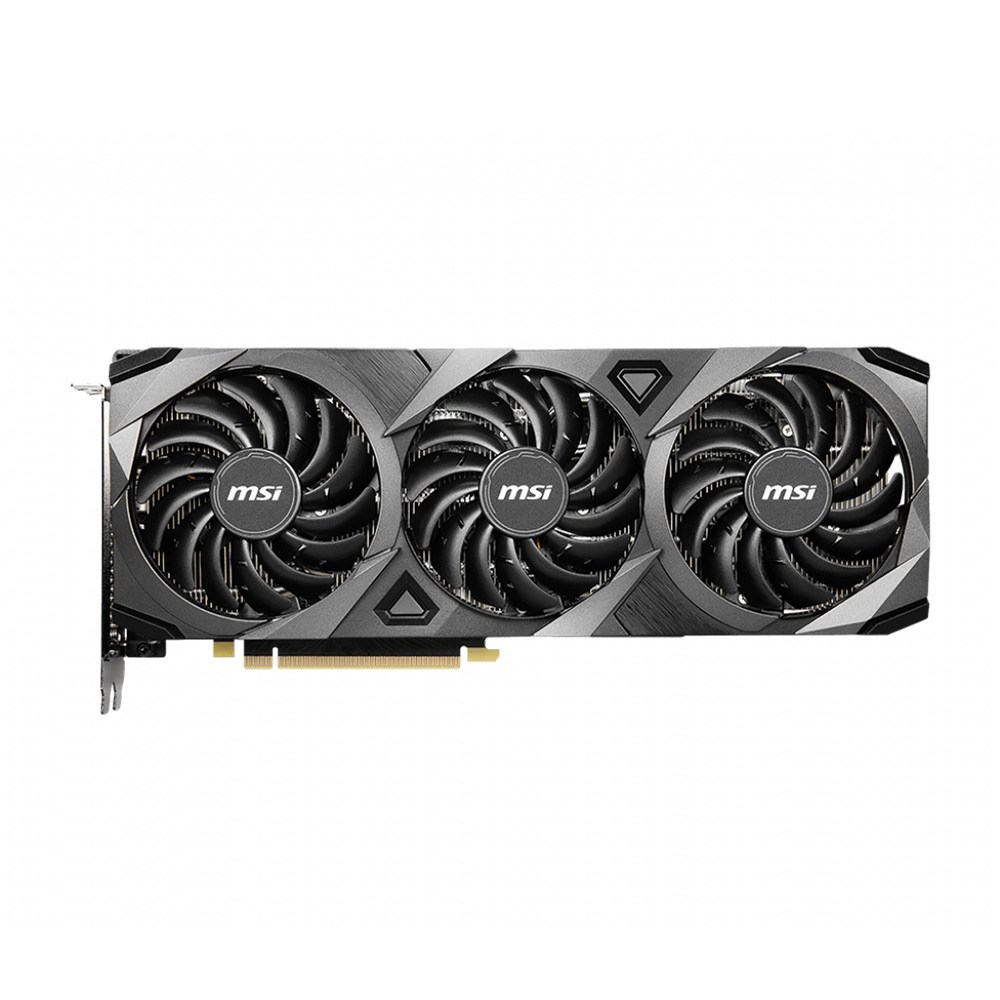

GeForce RTX™ 3070 VENTUS 3X 8G OC LHR
The GeForce RTX™ 3070 is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
- This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
Core / Memory
- Boost Clock / Memory Speed
1755 MHz / 14 Gbps - 8GB GDDR6

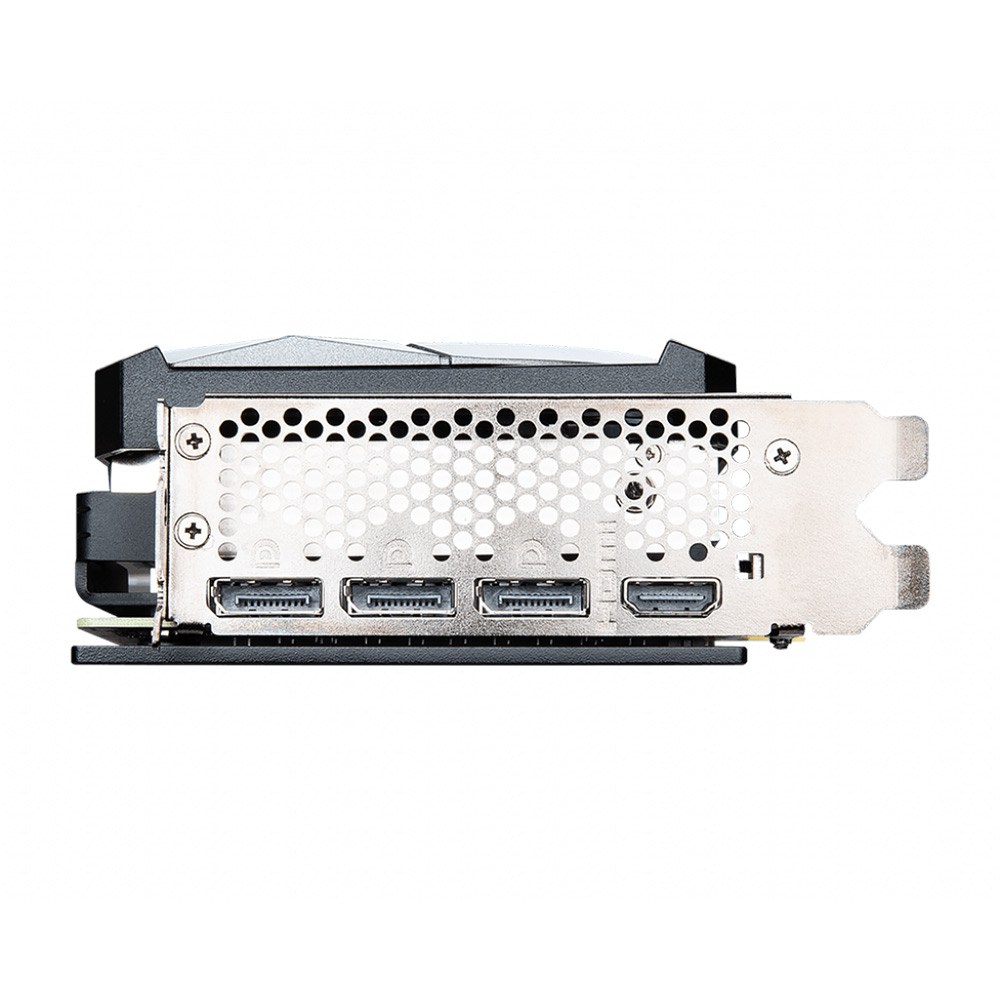

- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

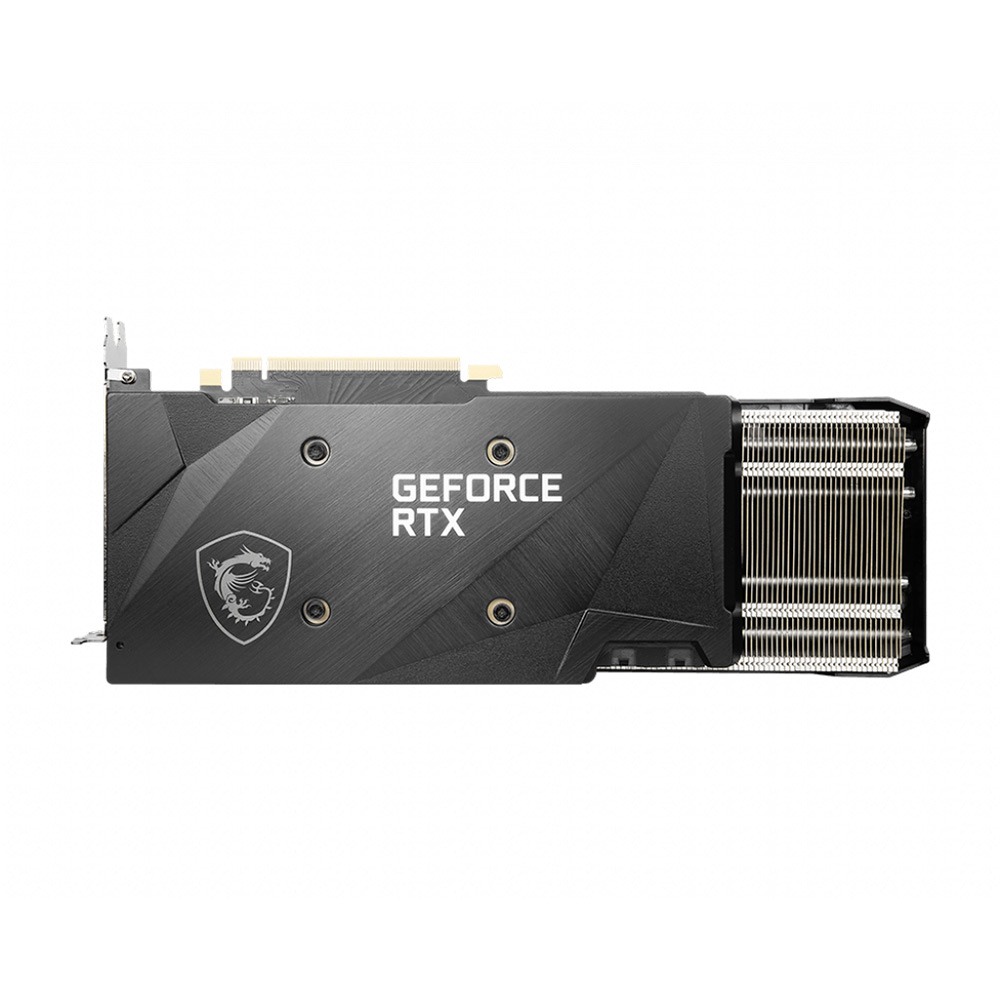

Graphene Backplate
- A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
| Weight | 0.5 kg |
|---|
