Specifications
| Model Name | GeForce RTX™ 3090 SUPRIM X 24G |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 3090 |
| Interface | PCI Express® Gen 4 |
| Cores | 10496 Units |
| Core Clocks | Extreme Performance: 1875 MHz (Dragon Center) Boost: 1860 MHz (GAMING & SILENT Mode) |
| Memory Speed | 19.5 Gbps |
| Memory | 24GB GDDR6X |
| Memory Bus | 384-bit |
| Output | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power consumption | 420W |
| Power connectors | 8-pin x 3 |
| Recommended PSU | 850W |
| Card Dimension (mm) | 336 x 140 x 61 mm |
| Weight (Card / Package) | 1895g / 3197g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.6 |
| NVLink Support | Y |
| Multi-GPU Technology | Y |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-SYNC® technology | Y |
| Adaptive Vertical Sync | Y |
| Digital Maximum Resolution | 7680 x 4320 |
20 YEARS IN THE MAKING
While striving for the SUperior gaming experience, our PRofound journey across decades took us to destinations previously thought IMpossible. Across years of high-performance circuit design, MSI is proud to bring its latest masterpiece to life. SUPRIM is the next leap in graphic cards design.
TRI FROZR 2S
NEVER LOSE YOUR COOL
TRI FROZR 2S stays cool in style. Thermals are kept in check in masterful ways under a sculpted SUPRIM exterior, letting you focus on enjoying your games in all their glory.
FOCUS ON WHAT’S IMPORTANT
FACING THE HEAT HEAD-ON
UTTERLY UNSTOPPABLE
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions in zero noise.
THE FINISHING TOUCH
An abundance of thermal pads provide additional heat dissipation for board components.
COOL ALL AROUND
There’s more than meets the eye. Heatpipes beneath the sturdy brushed-finish metal backplate provide additional cooling for the memory modules on the rear of the PCB.
POWERING EVERY ADVENTURE
DEFYING GRAVITY
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
UNYIELDING SUPPORT
A bundled support stand provides additional graphics card reinforcement.
GET READY TO GAME
Create game profiles with personalized graphics card settings including performance, True Color, and more.
TAKE BACK CONTROL
MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications, giving you great low latency online gaming experiences.
AUTOMATE ALL THE FANS
Link and unify cooling throughout the whole system with Frozr AI Cooling.
System fans can be programmed to react to CPU and/or GPU temperatures.
*Currently compatible with MSI MB – Intel Series: X299/300/400/500 or newer; AMD Series: X399/TRX 40/A320/400/500 or newer.
PRECISION CONTROLS, UNLIMITED POWER
MSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. It’s free to use and compatible with most other vendor graphics cards.
ONE-CLICK OVERCLOCKING
OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
ONE-CLICK OVERCLOCKING
OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.

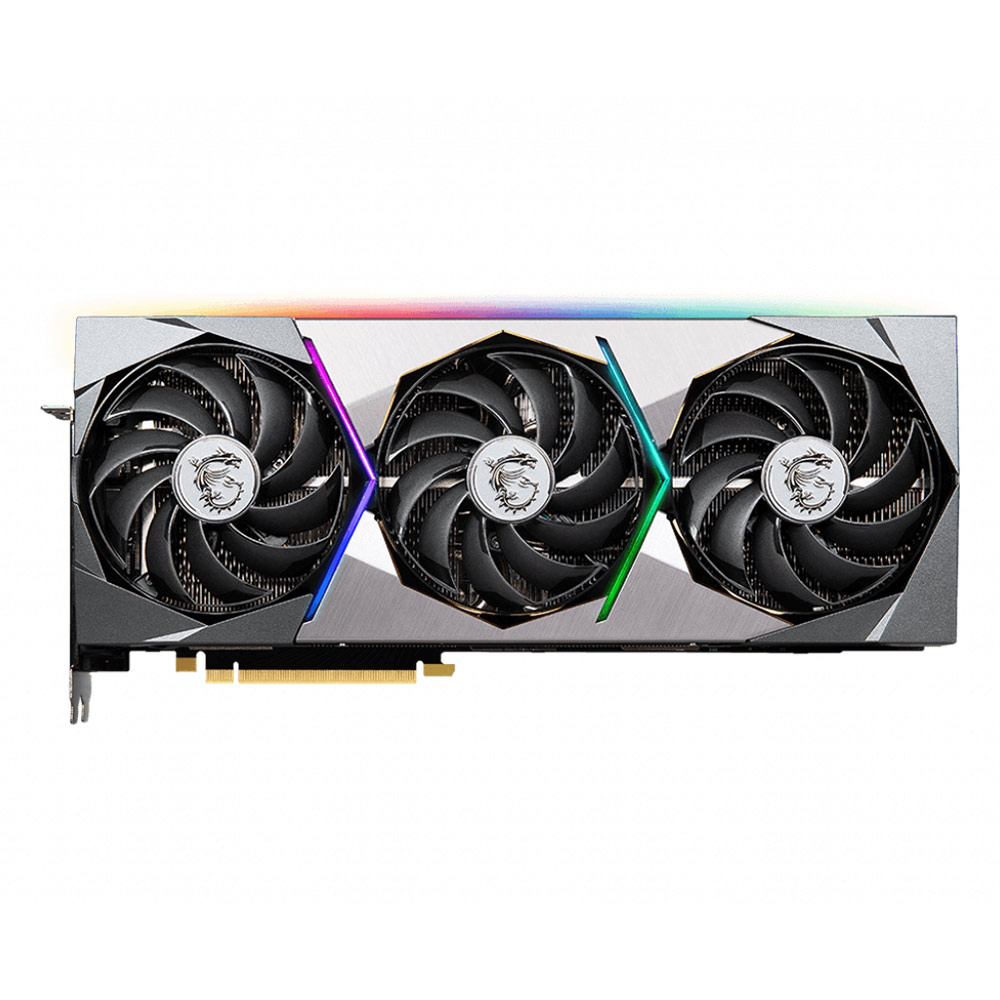

GeForce RTX™ 3090 SUPRIM X 24G
The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
Boost Clock / Memory Speed
- 1860 MHz (GAMING & SILENT Mode) / 19.5 Gbps
- 24GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TRI FROZR 2S Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Close Quarters Heatpipe & Heatsink: Memory modules have their own close quarters heatpipe and heatsink for dedicated cooling.
- Copper Baseplate: A solid nickel-plated copper baseplate transfers heat from the GPU to all the heatpipes.
Dual BIOS
- Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Mystic Light
- Controls lighting for both MSI and compatible third-party RGB products.
| Weight | 0.5 kg |
|---|
