MSI GeForce RTX™ 4090 GAMING X TRIO 24G Graphic Card

Specifications

Model Name	GeForce RTX™ 4090 GAMING X TRIO 24G
Graphics Processing Unit	NVIDIA® GeForce RTX™ 4090
Interface	PCI Express® Gen 4
Core Clocks	Extreme Performance: 2610 MHz (MSI Center) Boost: 2595 MHz (GAMING & SILENT Mode)
CUDA® CORES	16384 Units
Memory Speed	21 Gbps
Memory	24GB GDDR6X
Memory Bus	384-bit

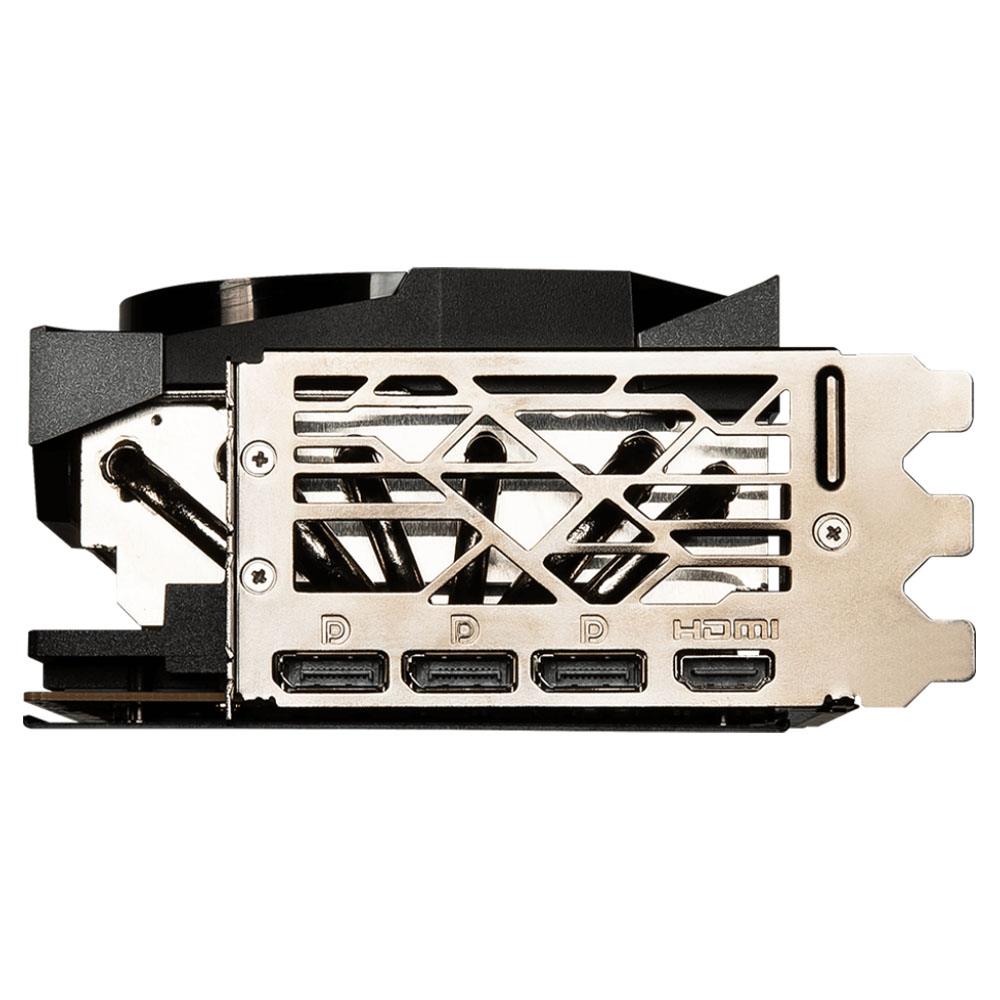

Output	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP Support	Y
Power consumption	450 W
Power connectors	16-pin x 1
Recommended PSU	850 W
Card Dimension (mm)	337 x 140 x 77 mm
Weight (Card / Package)	2170 g / 3093 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680×4320



GAMING IN STYLE

Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation.
A high-speed style matches high-performance capabilities for gamers who want to go all out.

Powered by GeForce RTX 40 Series and DLSS 3

• New Streaming Multiprocessors

  Up to 2x performance and power efficiency

• Fourth-Gen Tensor Cores

  Up to 4x performance with DLSS 3
  vs. brute-force rendering

• Third-Gen RT Cores

  Up to 2x ray tracing performance



Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
NVIDIA Broadcast app

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers



TRI FROZR 3 THERMAL DESIGN

Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.



TORX FAN 5.0

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.



TORX FAN 5.0

A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.



COPPER BASEPLATE

FACING THE HEAT HEAD-ON

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.



KEEPING THE CORE COOL

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.



Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.



AIR ANTEGRADE FIN

Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.



High-Efficiency Carbonyl Inductors (HCI)

Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electrical filtering.

SPS

Highly efficient Smart Power Stages (SPS) allow for accurate current regulation with lower resistance. The result is less power loss and less heat produced from the power layout.

Change Focus When Needed

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Effective Thermal Padding

An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Hardened Defenses

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.



RELENTLESS DEFENSE

A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

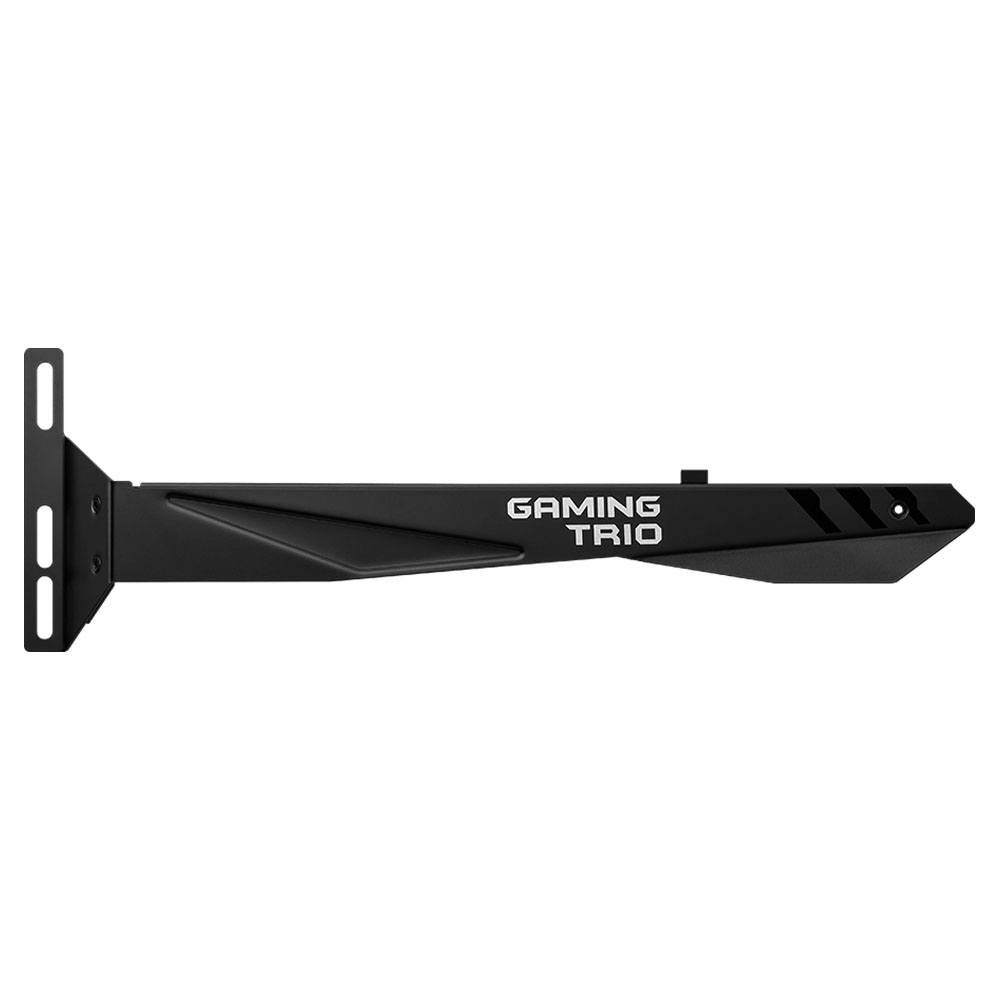

YOUR SUPPORT CHARACTER

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.

GeForce RTX™ 4090 GAMING X TRIO 24G
