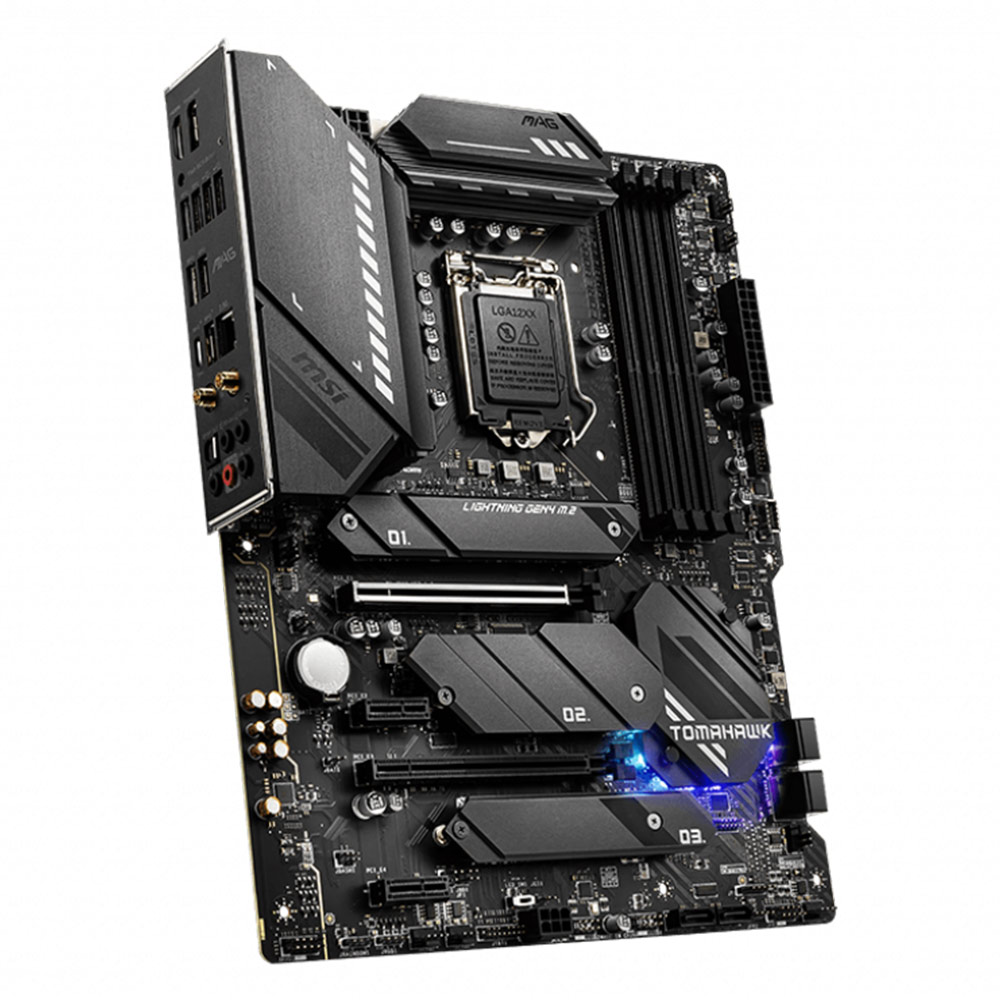

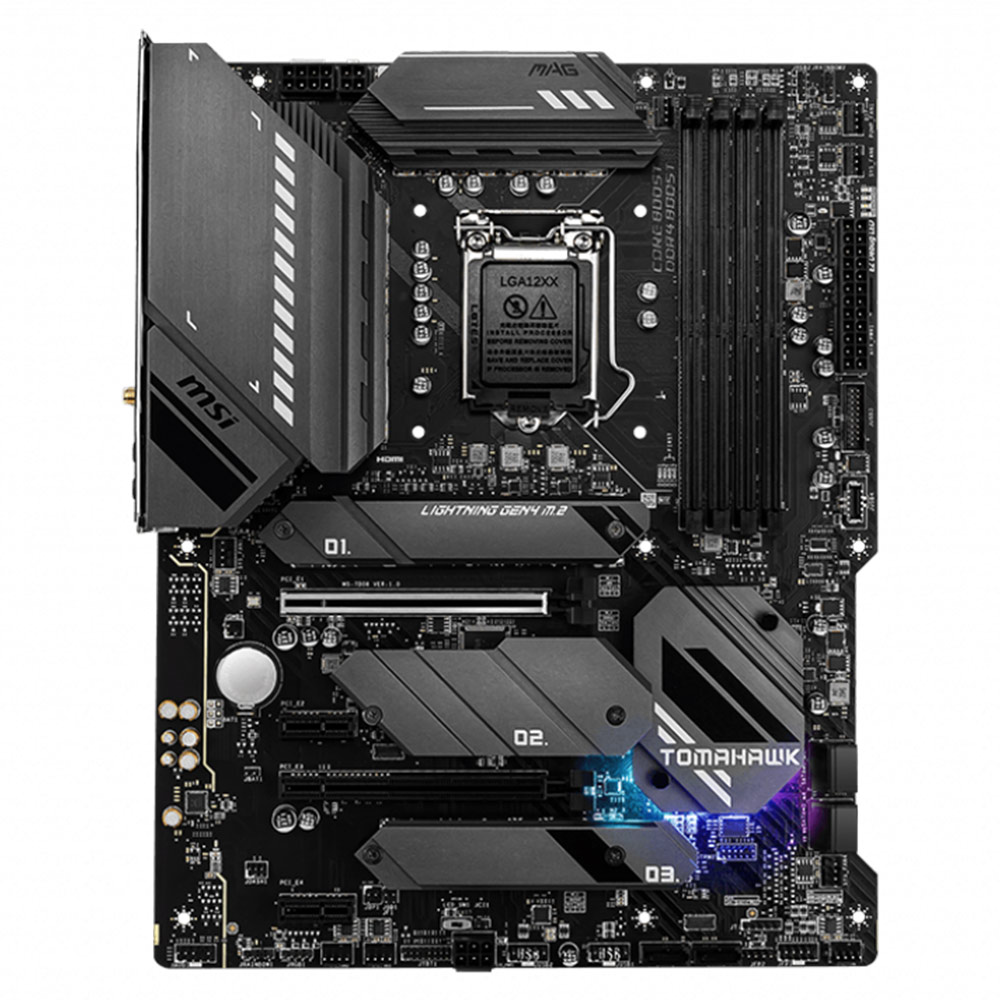

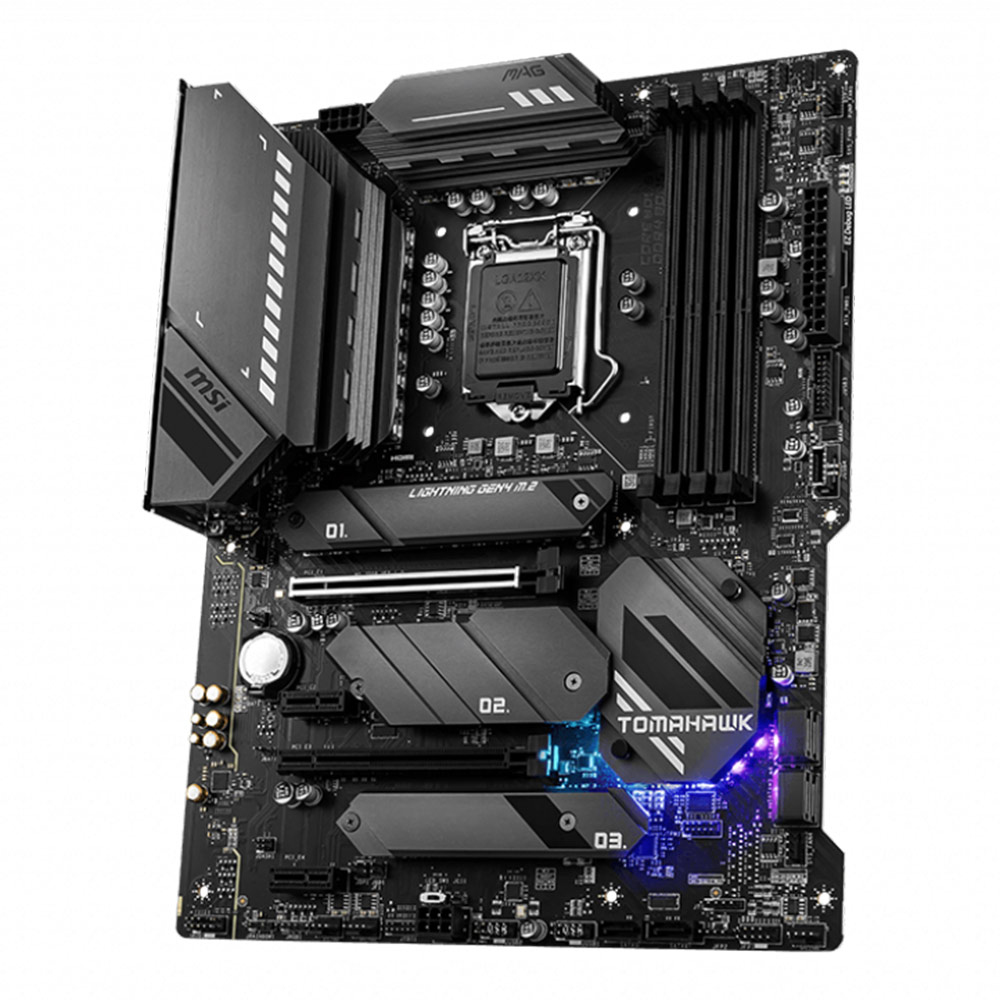

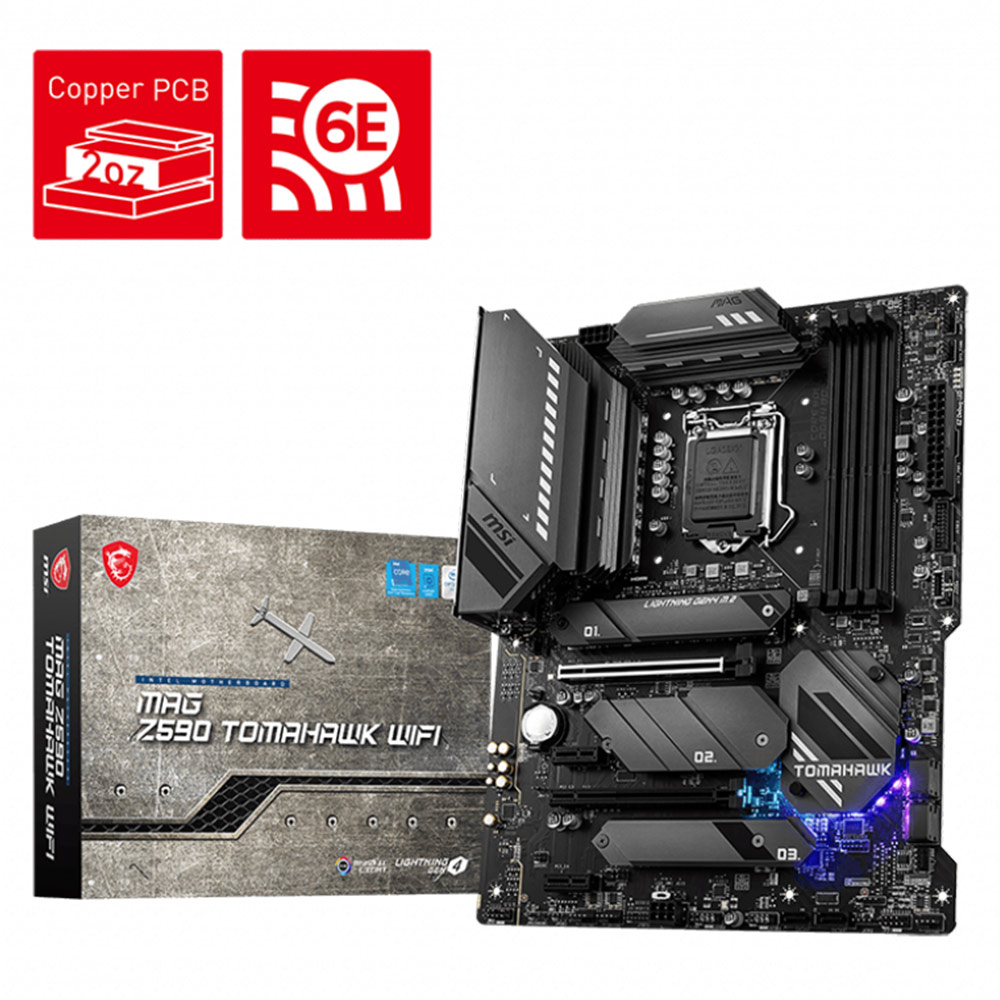

MSI MAG Z590 Tomahawk Wifi 911-7D08-007 Motherboard
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Specifications:
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel® Z590 Chipset |
| DDR4 Memory | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel® Wi-Fi 6E AX210 |
| USB 3.2 ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |

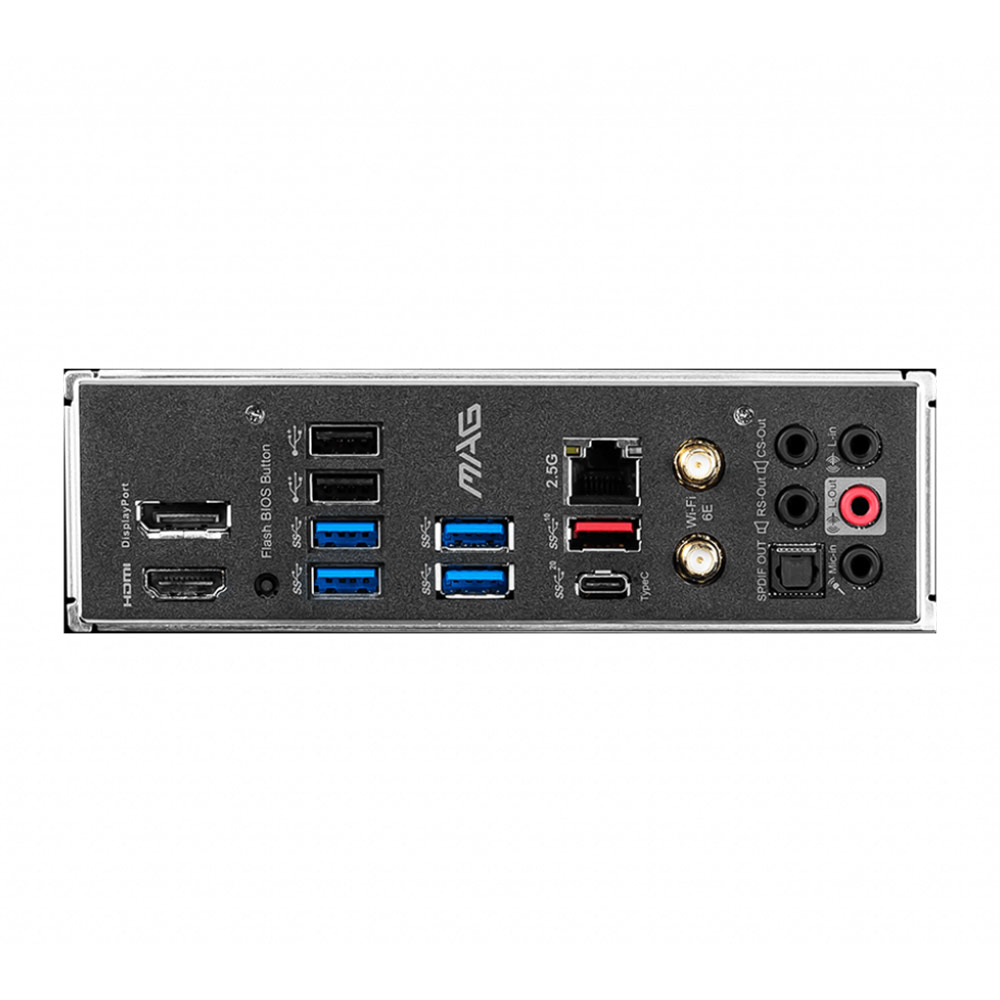

| USB 3.2 ports (Rear) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Y |
| Operating System | Support for Windows® 10 64-bit |
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
| Weight | 0.5 kg |
|---|
