Specifications
| Operating System | DOS – MSI recommends Windows 11 Pro for business |
| CPU | Intel® Core™ i5-12400 |
| Chipset | Intel® H610 |
| Graphics | N/A – Intel® UHD Graphics |
| Storage | N/A – 1x M.2 SSD (PCIe/ SATA auto switch) 2x 2.5″ HDD / SSD |
| System Memory | N/A – 2x DDR4 2666/ 3200MHz SO-DIMMs, up to 64GB |
| I/O (Front) | 4x USB 2.0 Type A 1x Mic-in 1x Headphone-out |
| I/O (Rear) | 1x USB 3.2 Gen 2 Type C 1x USB 3.2 Gen 2 Type A 2x USB 3.2 Gen 1 Type A 1x RJ45 1x HDMI out (2.0) 1x DisplayPort (1.4) 1x COM port 1x Mic-in 1x Line-out |
| Bluetooth | 4.2 (for AC 3168) / 5.2 (for AX201) |
| Wireless LAN | Intel Wireless AC 3168 / Wi-Fi 6 AX201 |
| LAN | Realtek® RTL8111H |
| Cooling System | Fan Cooler |
| AC Adapter / PSU | 120W |
| Dimension (WxDxH) | 204 x 208 x 54.8 mm (8.03 x 8.19 x 2.16 inch) |
| WEIGHT (N.W./ G.W.) | 1.27 Kg (2.80 lbs) / 2.75Kg (6.06 lbs) |
| VESA Mount | Support 100 x 100 mm |
| Volume | 2.3 Liter / 4.05 pt |
| Accessories | 1x User Manual (Optional) 1x Quick Guide 1x Warranty Card 1x Power Cord VESA Mount Screws |
| Note | *Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see https://www.microsoft.com/en-us/windows/windows-11-specifications). |
PRO DP21 12M
- Windows 11 Home
– MSI recommends Windows 11 Pro for business - Up to Intel® Core™ i7-12700 Processors
- Support 4K UHD Display
- Wi-Fi 6 (Optional) puts more emphasis on transmission security with speed up to 2.4Gbps
- With a complete array of I/O ports, it can connect all devices that you need and support dual display.
- Get all the performance benefits from USB 3.2 Gen 2 which combines with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port.
- Customize your own user mode and increase the efficiency with MSI Center app
- Easy to access and upgrade components to keep the system up to date with the latest hardware.
- TPM design secures your confidential data with encryption keys
- Supports standard VESA-mount
Tiny Yet Powerful
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.
MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
Opportunity To The World for Your E-Commerce / M-Commerce
It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce.
Ready For Various Scenarios
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.
Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port.
COM Port Device Support
With a COM port and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more.
The COM port can also communicate with the programmable logic controllers (PLCs) or with other module such as operator/HMI, motor controller,a robot or vision system in the intelligent factory.
VESA Mountable Design
The VESA Mountable design allows you to hook up PRO DP21 anywhere you like that not only improves the flexibility while working with it but also let users have a good space management at home or in the office.
Various I/O Ports
With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devices to make you work more efficiently.

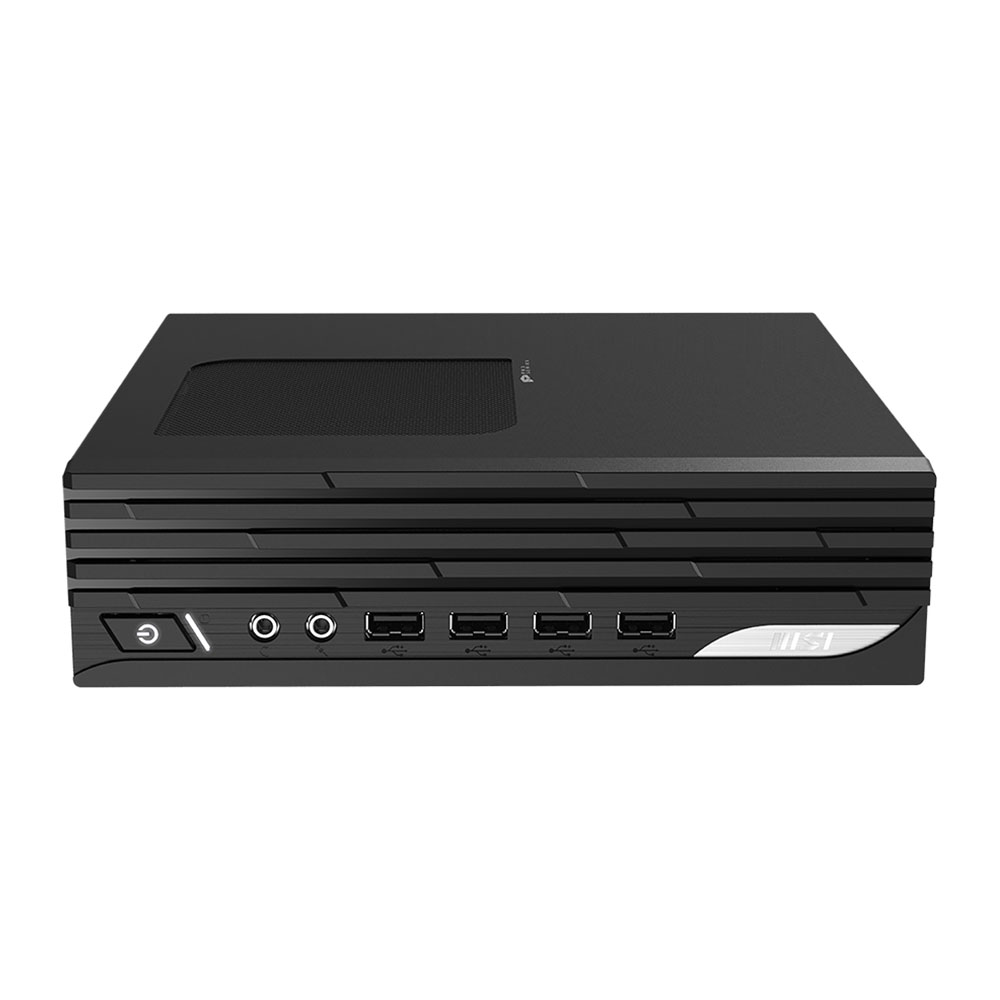

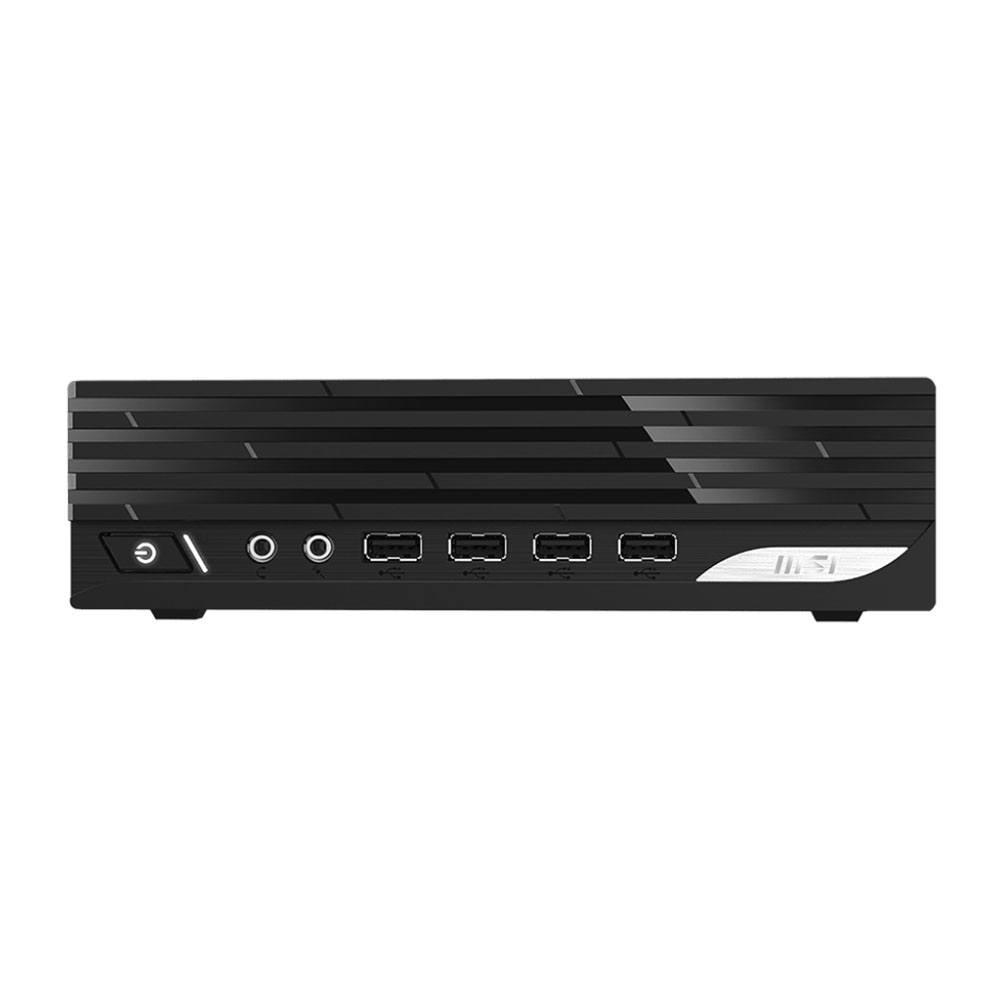

Front
- 1.1x Headphone-out
- 2.1x Mic-in
- 3.4x USB 2.0 Type A

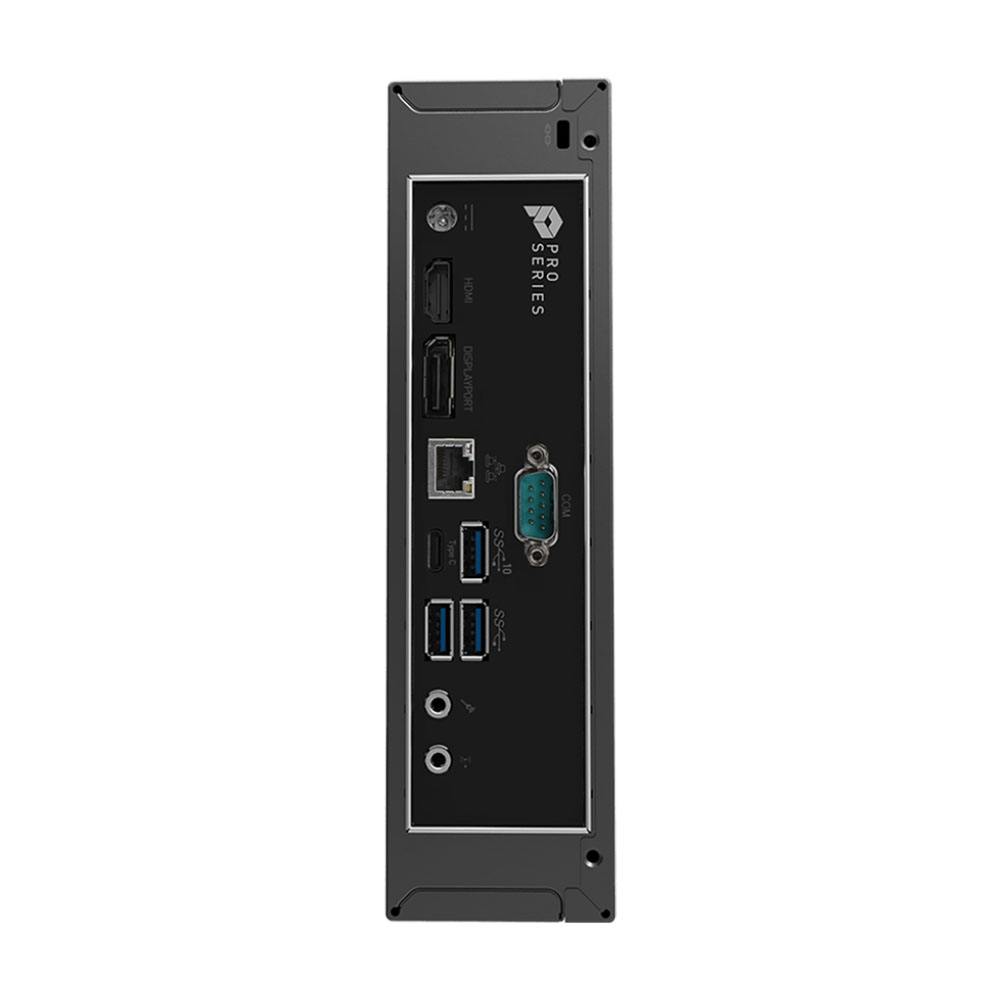

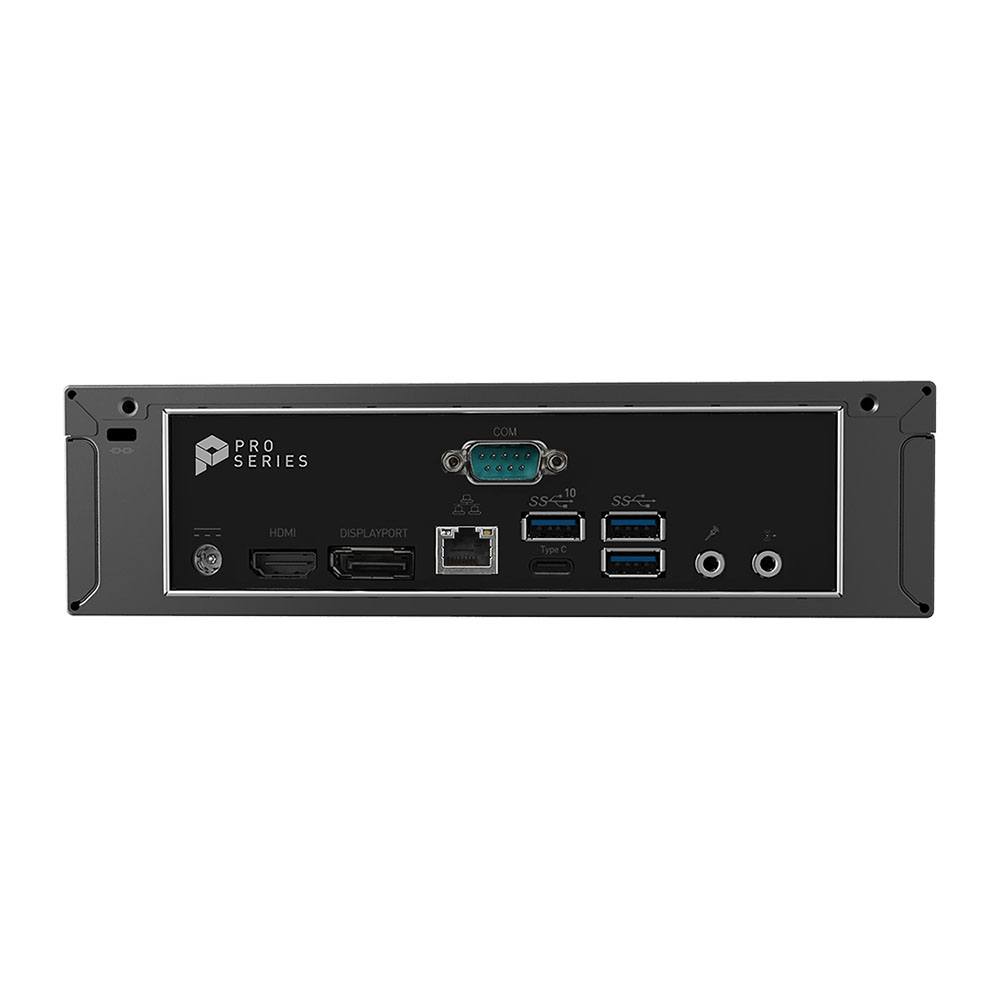

Rear
- 4. 1x DC Jack
- 5. 1x HDMI out
- 6. 1x DisplayPort
- 7. 1x RJ45
- 8. 1x USB 3.2 Gen 2 Type C1x USB 3.2 Gen 2 Type A
- 9. 2x USB 3.2 Gen1 Type A
- 10. 1x Mic-in
- 11. 1x Line-out
- 12. 1x COM Port
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
| Weight | 5 kg |
|---|
