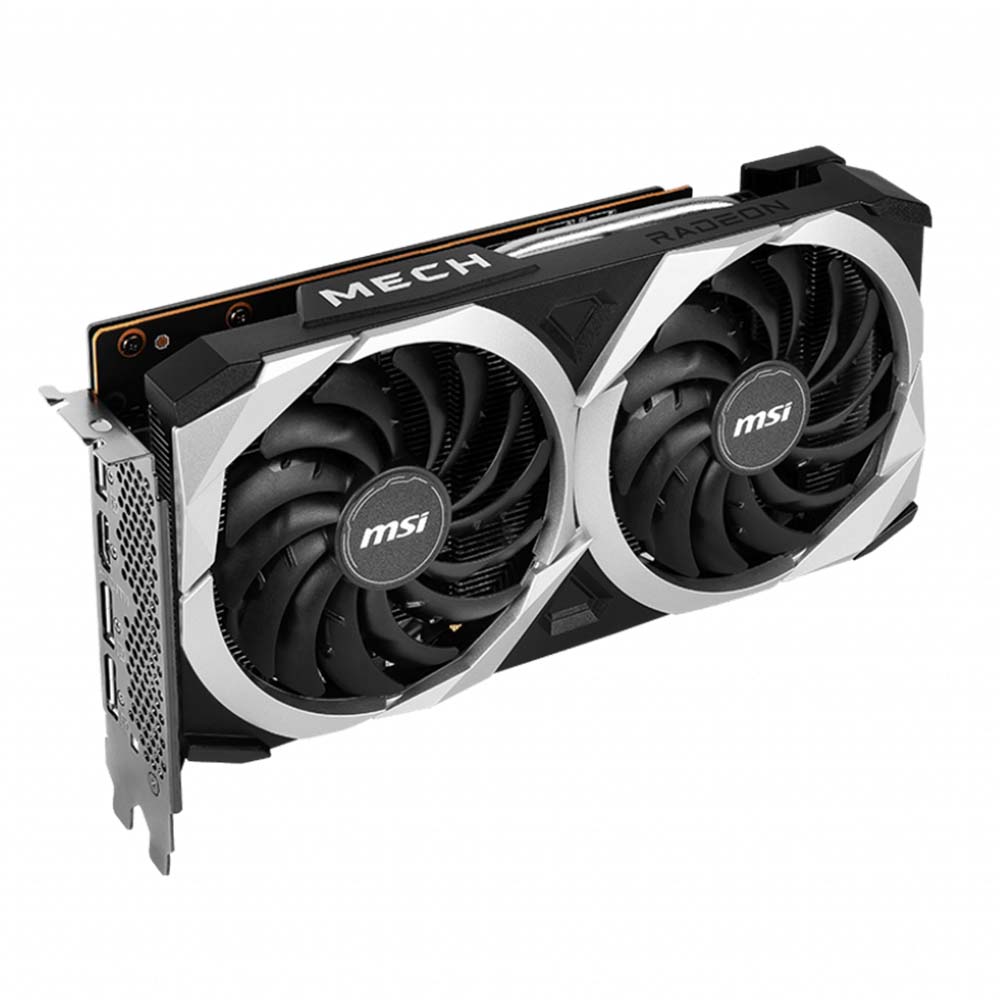

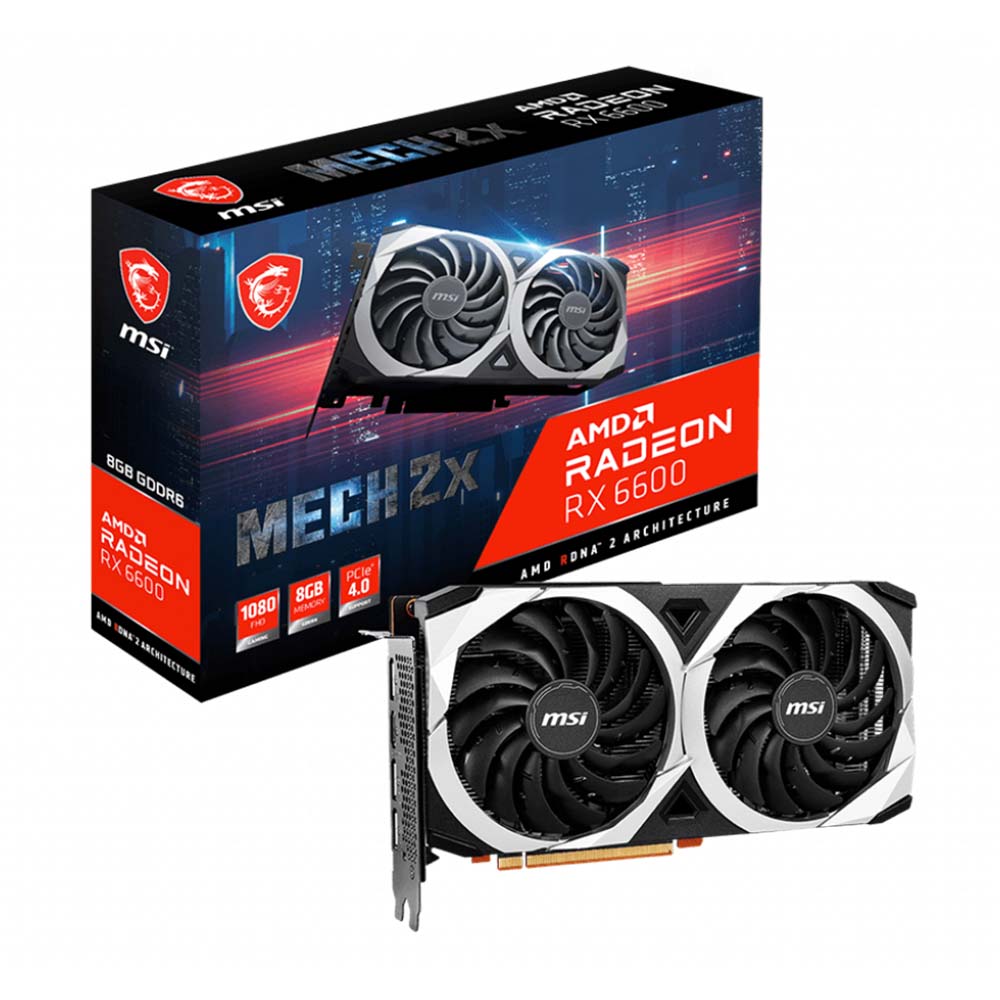

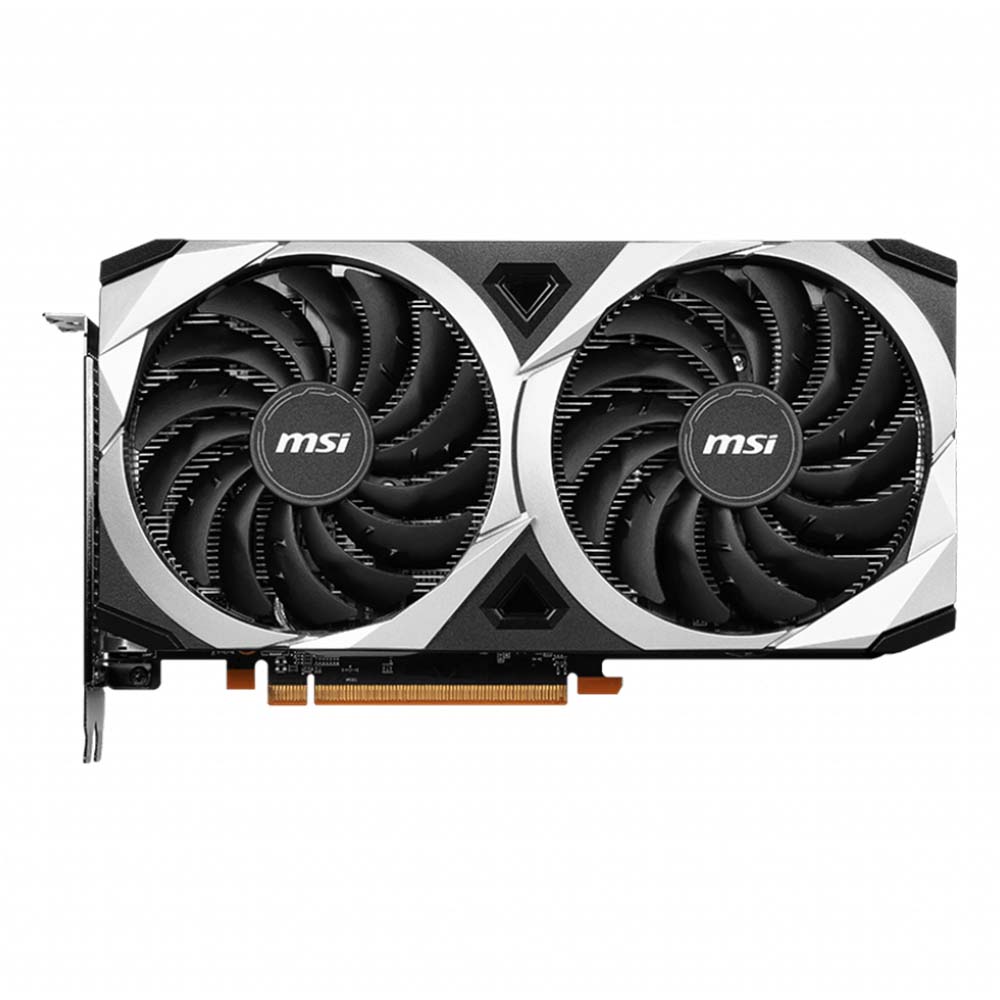

MSI Radeon™ RX 6600 MECH 2X 8G Graphic Card 912-V502-026
- Up to 2491 MHz / 14 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4)
- HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
SKU: 912-V502-026 Categories: Gaming, MSI, Video Graphics Card (VGA)
Specifications
Model Name | Radeon™ RX 6600 MECH 2X 8G |
Graphics Processing Unit | AMD Radeon™ RX 6600 |
Interface | PCI Express® 4.0 x8 |
Cores | 1792 Units |
Core Clocks |
Boost: Up to 2491 MHz Game: Up to 2044 MHz |
Memory Speed | 14 Gbps |
Memory | 8GB GDDR6 |
Memory Bus | 128-bit |

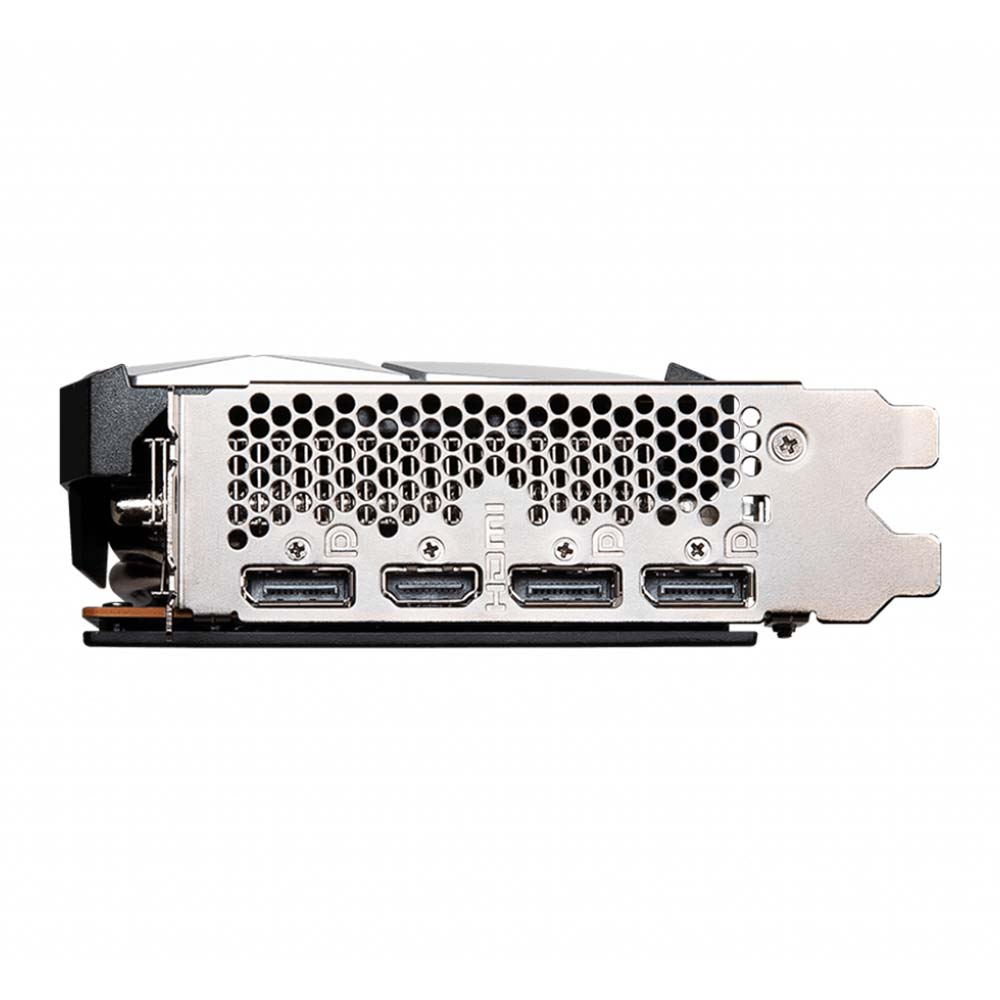

Output |
DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
HDCP Support | Y |
Power consumption | 132 W |
Power connectors | 8-pin x 1 |
Recommended PSU | 500 W or greater |
Card Dimension (mm) | 235 x 125 x 46 mm |
Weight (Card / Package) | 710 g / 1175 g |
DirectX Version Support | 12 API |
OpenGL Version Support | 4.6 |
Multi-GPU Technology | Y |
Afterburner OC | Y |
Maximum Displays | 4 |
VR Ready | Y |
Digital Maximum Resolution | 7680 x 4320 |
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

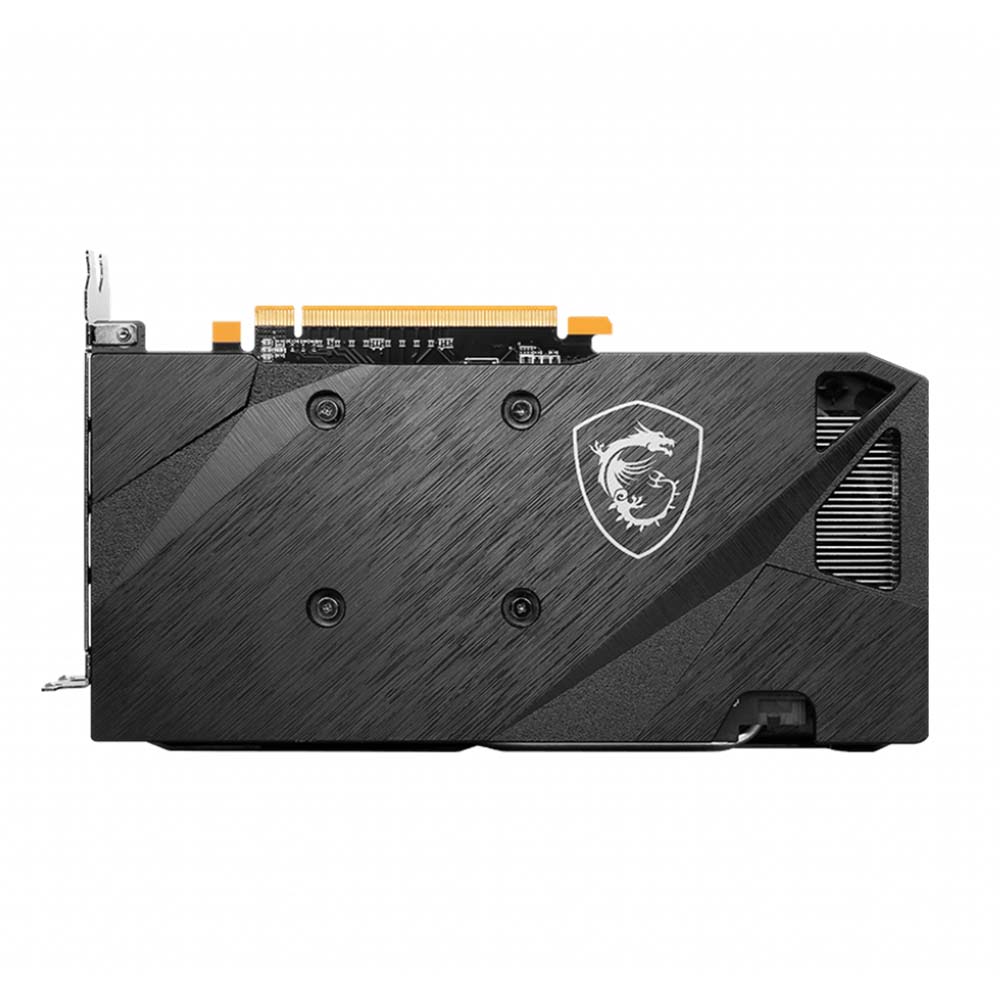

BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
