Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel® Z590 Chipset |
| DDR4 Memory |
5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 3 |
| RAID | 0/1/5/10 |
| TPM (header) | 1 |
| LAN | 1x Intel® I225-V 2.5Gbps LAN |
| USB 3.2 ports (Front) | 1(Gen 2, Type C), 4(Gen 1, Type A) |

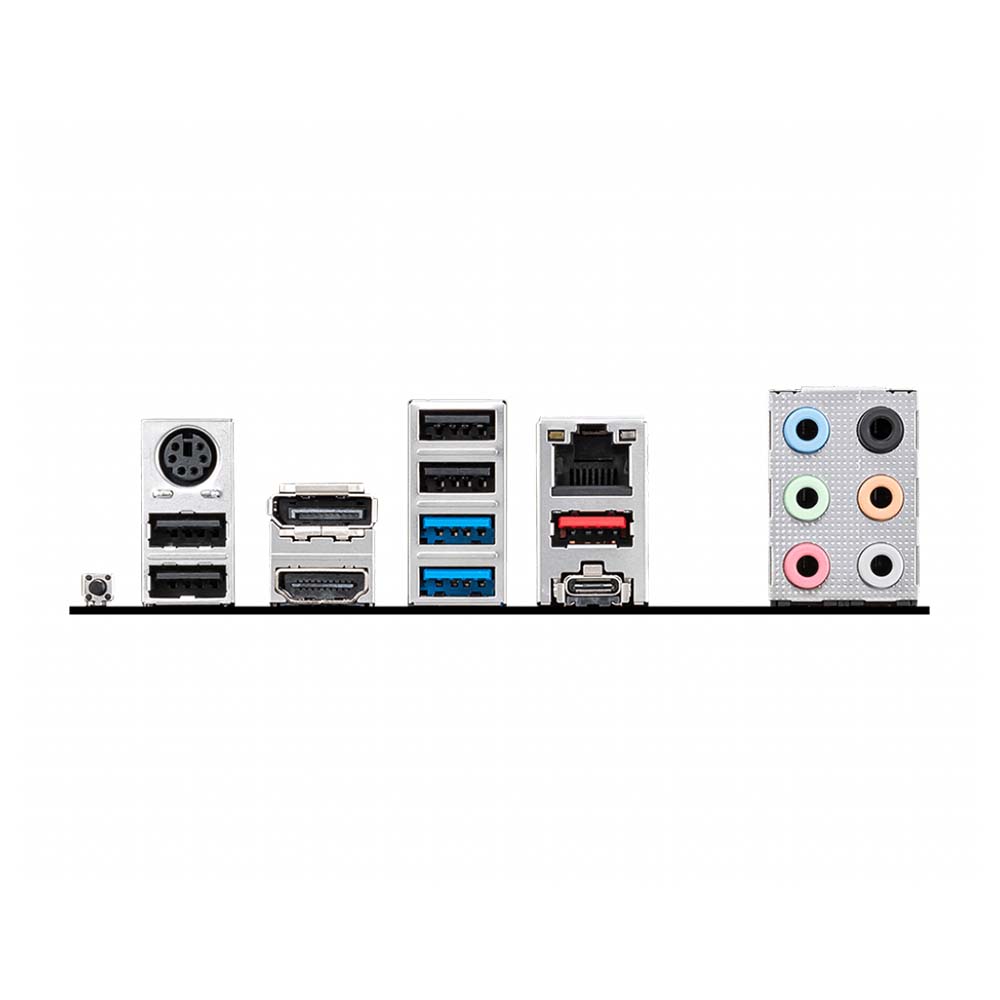

| USB 3.2 ports (Rear) |
1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 4 |
| Serial ports(Front) | 1 |
| Audio ports (Rear) | Realtek® ALC897 Codec |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Y |
| Operating System | Support for Windows® 10 64-bit |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
XL CLIP
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EASY TO ARRANGE YOUR CABLES
Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.
MORE RELIABLE CIRCUIT TRANSMISSION
6-layer PCB allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel Core processors, MSI Z590 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Read and write your files over USB faster than ever. MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 20Gbps transferring speed by reversible Type-C.
USB FRONT TYPE-C
MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
12 + 2 +1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking
Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
RESIZABLE BAR (RE-SIZE BAR)
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
Secure Boot
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
Features
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
| Weight | 0.5 kg |
|---|
