NZXT C650 Gold 650 Watt PSU Power Supply – NP-C650M-UK

  • 24-pin ATX power 1
  • 4+4-pin CPU power 2
  • 6+2-pin PCIe power 6
  • SATA power 8
  • Peripherals 6
SKU: NP-C650M-UK Categories: , ,

Specifications

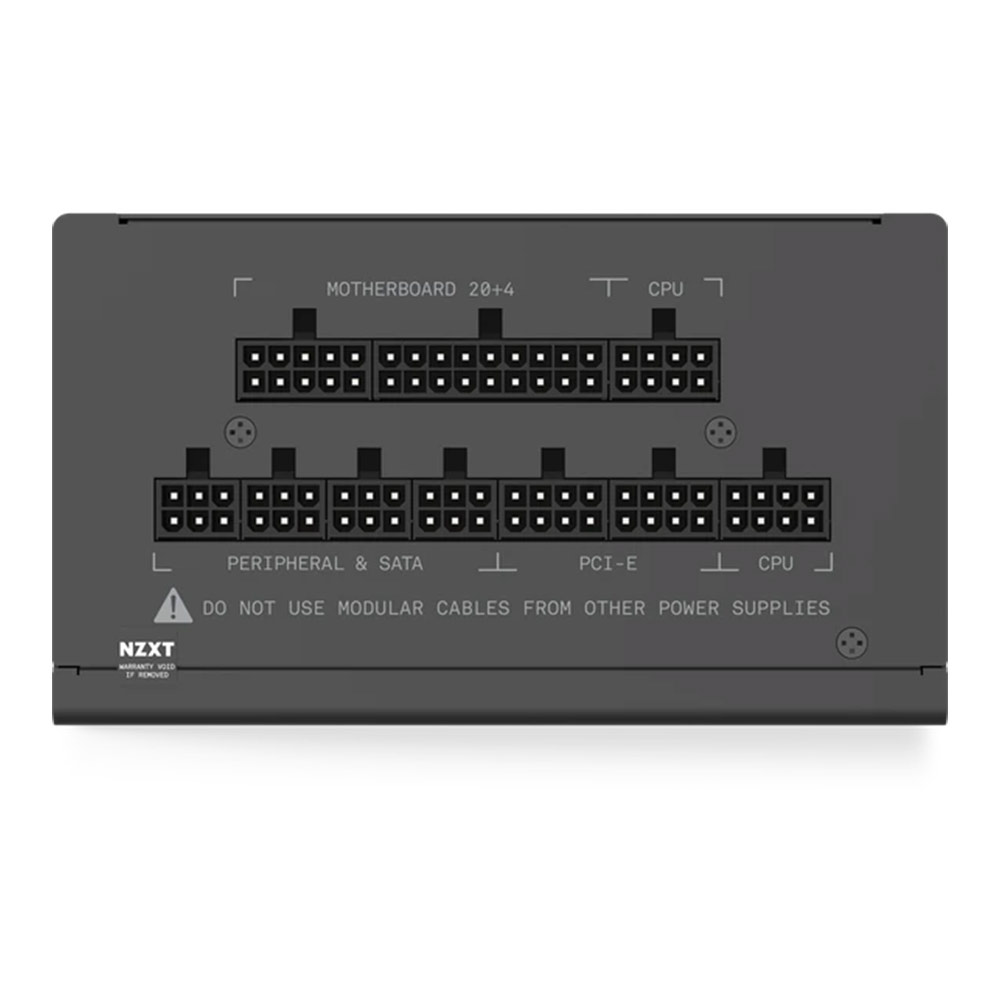

Output Connectors 24-pin ATX power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA power 8 Peripherals 6

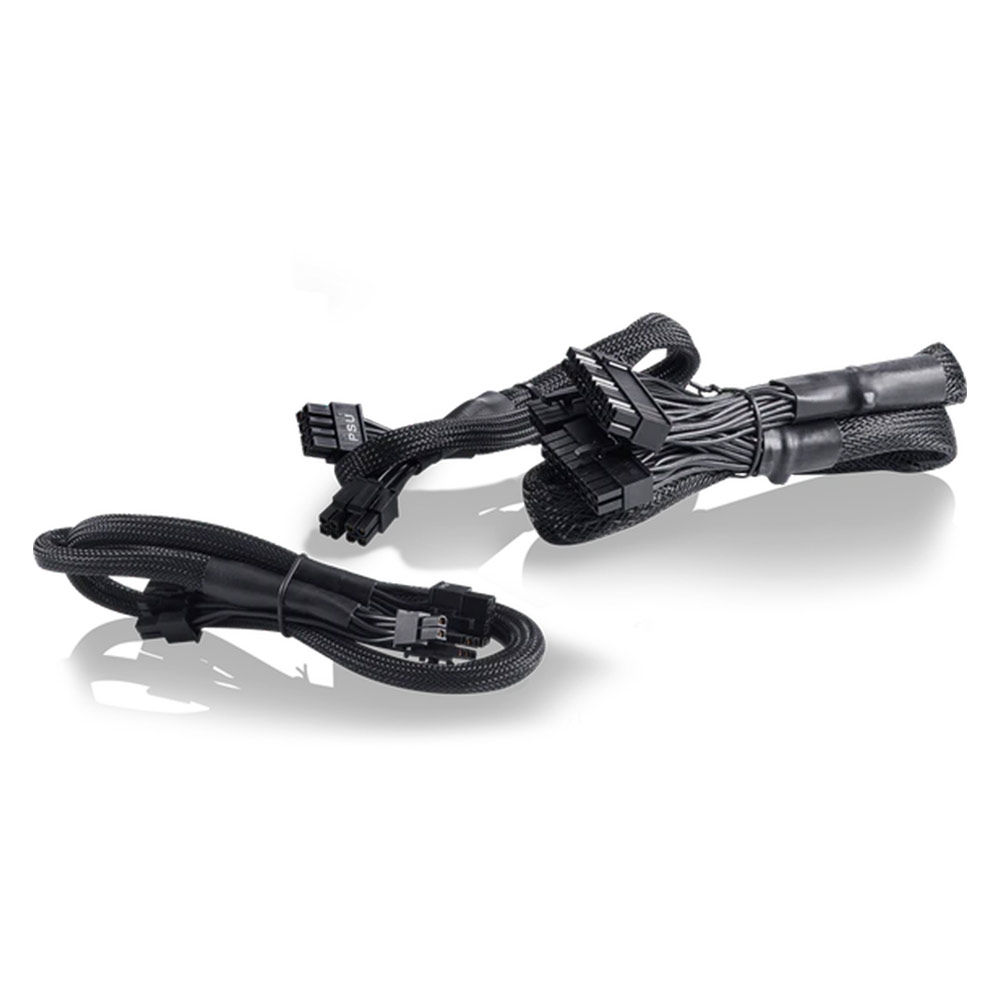

Cable Specs 24-pin ATX power 610 mm, Nylon sleeving 4+4-pin CPU power 650 mm, Nylon sleeving 6+2-pin PCIe power 675 + 75mm, Nylon sleeving SATA power 500 + 100 + 100 + 100 mm Peripherals 500 + 100 + 100 mm
AC Input Rating 100-240Vac 9-4.5A, 50-60Hz
DC Output Rating +3.3V and +5V 20A (Combined 100W) +12V 54A (648W) -12V 0.3A (3.6W) 5Vsb 3A (15W) Total 650W
Operation PF Correction Active @0.99 MTBF 100,000 hours Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Energy Efficiency Rating 80 Plus Gold 20% loading 87% @115Vac 50% Loading 90% @115Vac 100% Loading 87% @115Vac
Fan Specs Dimensions 120 x 120 x 25mm Speed 0 – 2,200 ± 200RPM Airflow 73.9 CFM Noise 32.3 dBA Bearing Fluid Dynamic Bearing (FDB)
General Dimensions 150 x 150 x 86 mm Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.4 / EPS12V v2.92 Regulation & Certification CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM /  Model Number NP-C650M
UPC UPC (TW) 815671015686 UPC (CN) 815671015914 UPC (AR) 815671015938 UPC (US) 815671015945 UPC (EU) 815671015952 UPC (UK) 815671015969 UPC (AU) 815671015976 UPC (JP) 815671016010 UPC (WO) 815671015983
EAN EAN (TW) 5060301695546 EAN (CN) 5060301695744 EAN (AR) 5060301695768 EAN (US) 5060301695775 EAN (EU) 5060301695782 EAN (UK) 5060301695799 EAN (AU) 5060301695805 EAN (JP) 5060301695843 EAN (WO) 5060301695812



Details

This PSU delivers 650 watts of reliable power which is a great choice for almost every build.
  • Modular design lets builders use only the cables they need
  • The sleeved main cables lresist heat damage as well as fraying
  • Fits any case conforming to the ATX standard
  • Supports NVIDIA GPUs up to 3070 and AMD GPUs up to RX 6800
  • Zero RPM Fan mode silences the fan under low-load conditions

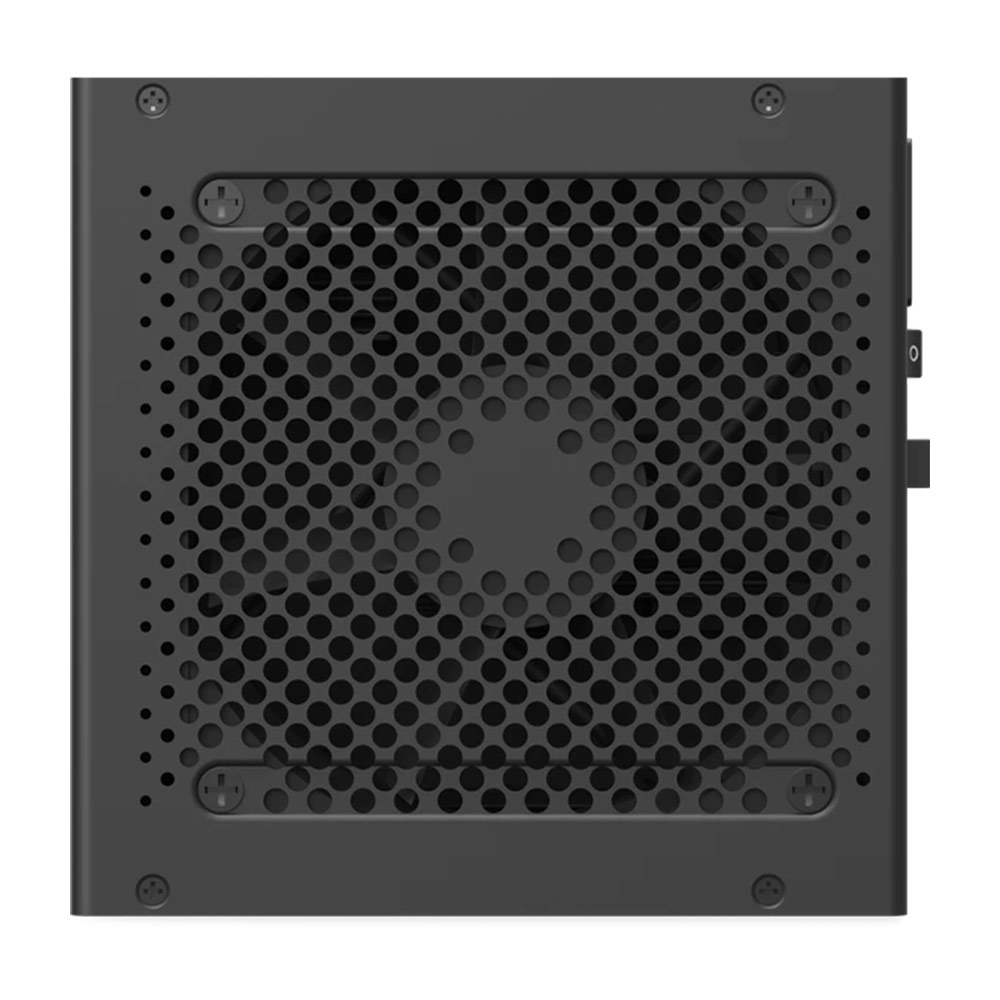

  • Dynamic 120mm fluid-dynamic bearing fan
Weight 0.5 kg
