Specifications

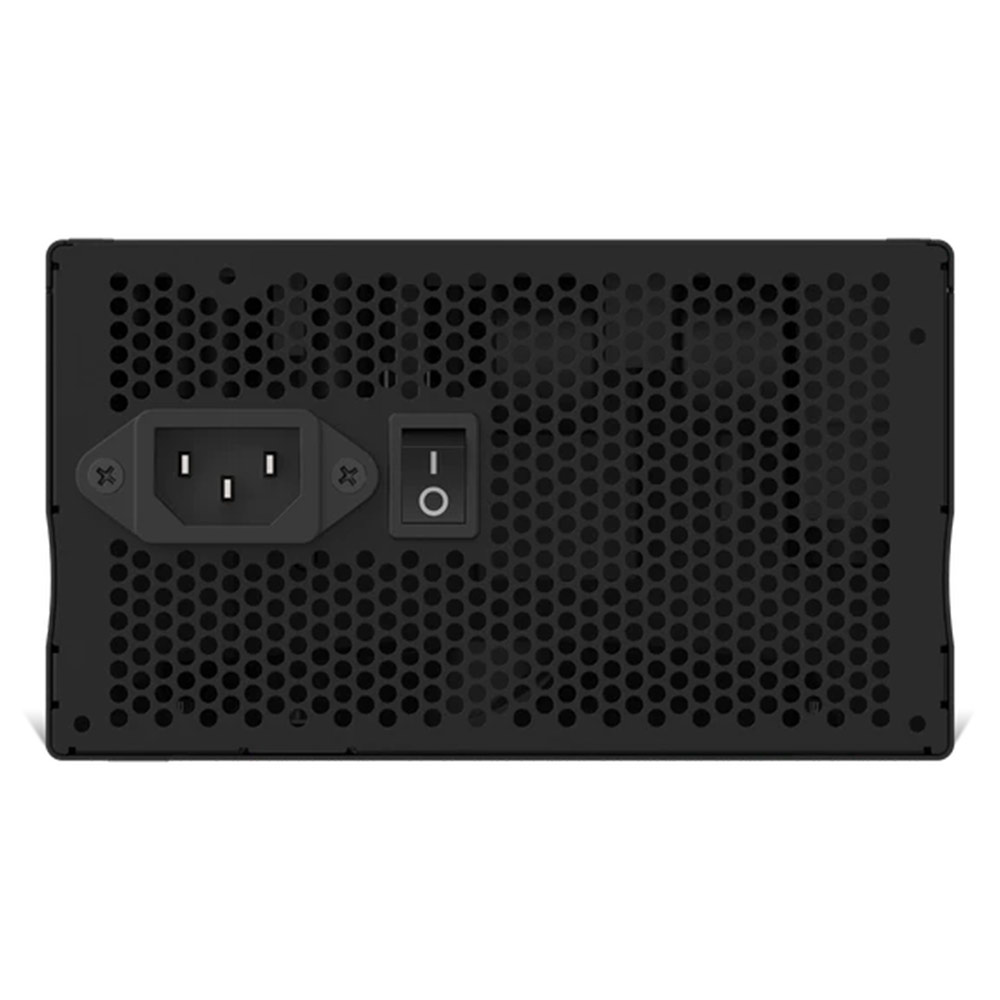

| Key Specs | Dimensions W 150mm x L 140mm x H 86mm Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.4 / EPS12V v2.92 AC Input Rating 10A/115V；5A/230V 47Hz ~ 63Hz |
| DC Output Rating | Voltage +3.3V / +5V / +5VSB /+12V / -12V Max Load 20A / 20A / 2.5A / 62.5A / 0.3A Voltage Regulation ±5% / ±5% / ±5% / ±5% / ±10% Ripple & Noise < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p Output Power (watt) 120 / 120 / 12.5 / 750 / 3.6 Total 750 |
| Fan Specs | Dimensions 120 x 120 x 25 (mm) Speed 2400 ±10% RPM Airflow 72.90 CFM Noise <44 dBA Bearing FDB (Fluid Dynamic Bearing) |
| Energy Efficiency | Rating 80 Plus Bronze 10% loading 82% 20% loading 83% 50% loading 87% 100% loading 83% |
| Operation | PF Correction Active@0.96 MTBF 100,000 hours Operation Temperature 0 to 40°C |

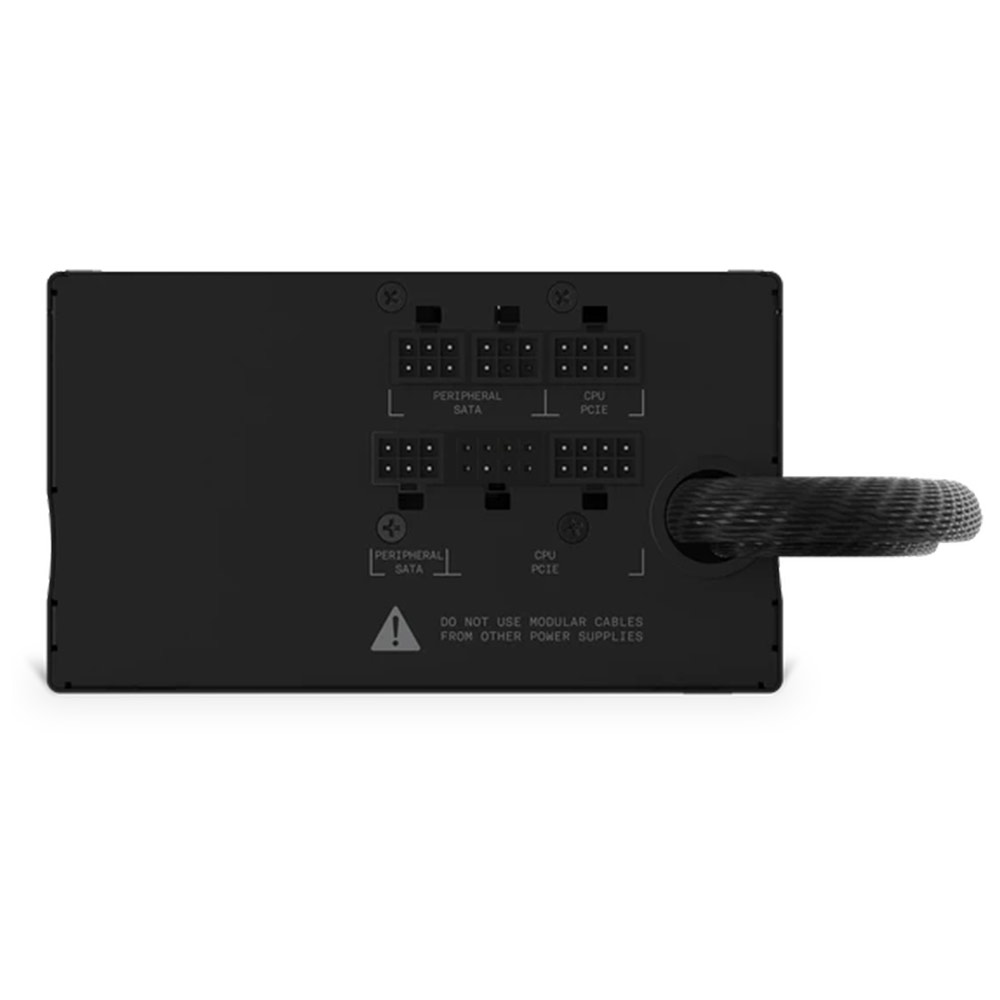

| Output Connector(s) | 24-pin ATX Power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA Power 6 Peripherals 3 |
| General | Regulations & Certifications (EMC & Safety) CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / Hazardous Materials RoHS & China RoHS |
| Model Number | CN PA-7B1BB-CN AR PA-7B1BB-AR US PA-7B1BB-US EU PA-7B1BB-EU UK PA-7B1BB-UK AU PA-7B1BB-AU JP PA-7B1BB-JP TW PA-7B1BB-TW IN PA-7B1BB-IN WO PA-7B1BB-WO |
| UPC | CN 815671017833 AR 815671017840 US 815671017857 EU 815671017864 UK 815671017871 AU 815671017888 JP 815671017895 TW 815671017901 IN 815671017918 WO 815671017925 |
| EAN | CN 5060301698141 AR 5060301698158 US 5060301698165 EU 5060301698172 UK 5060301698189 AU 5060301698196 JP 5060301698202 TW 5060301698219 IN 5060301698226 WO 5060301698233 |
Details

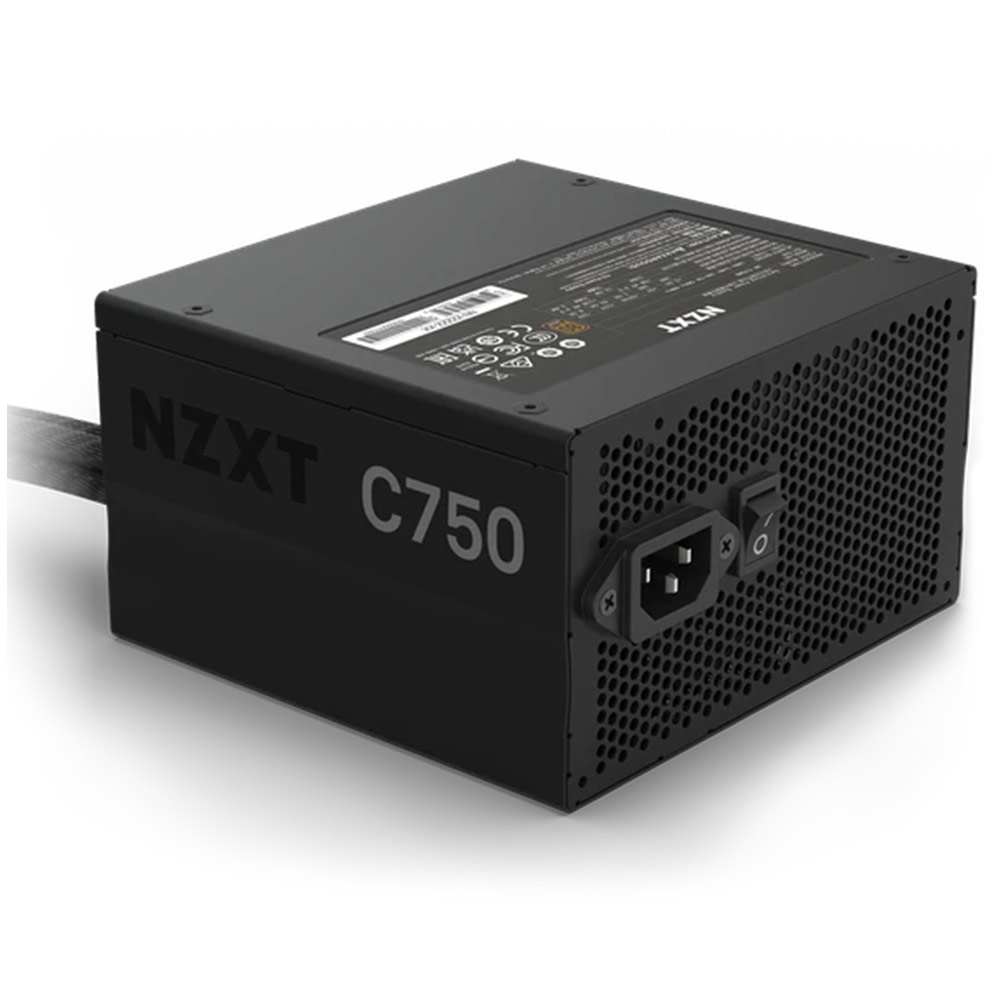

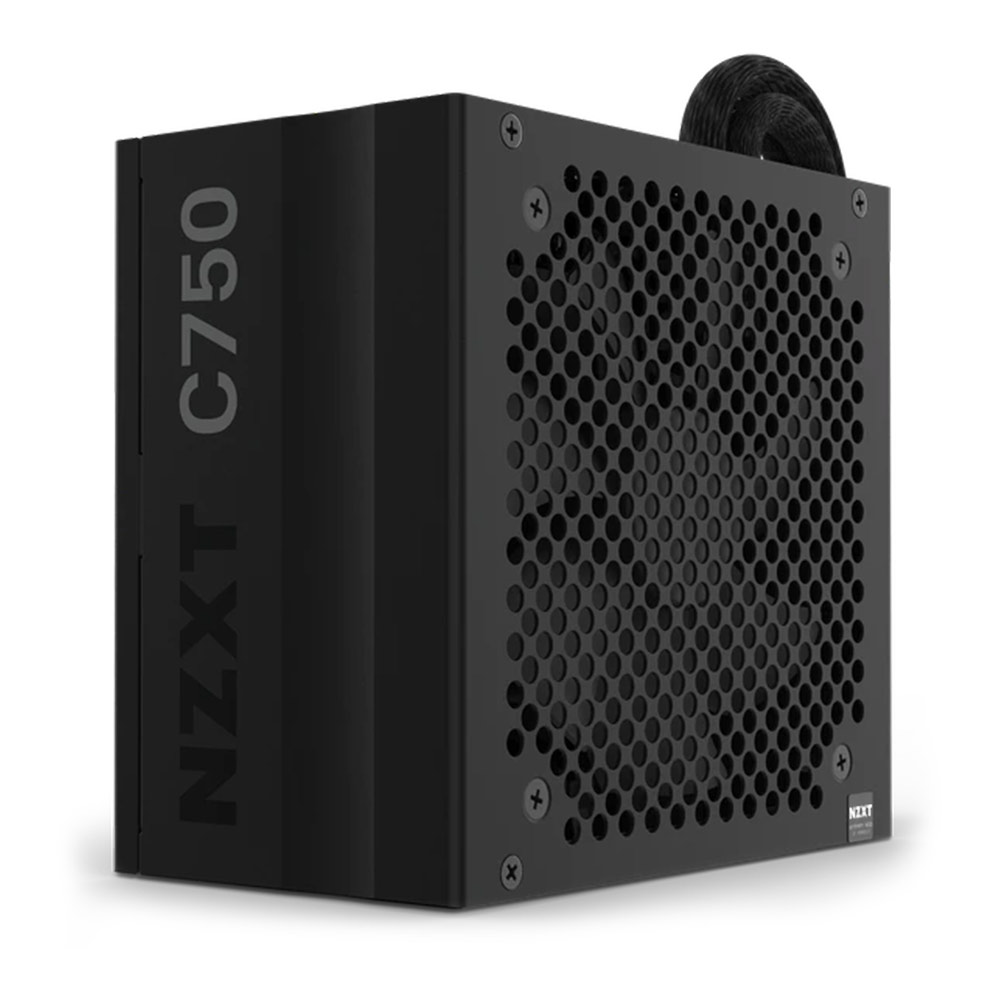

The C750 provides 750 watts of reliable power to your battlestation and can support up to the GeForce RTX 3080.
| Weight | 0.5 kg |
|---|
