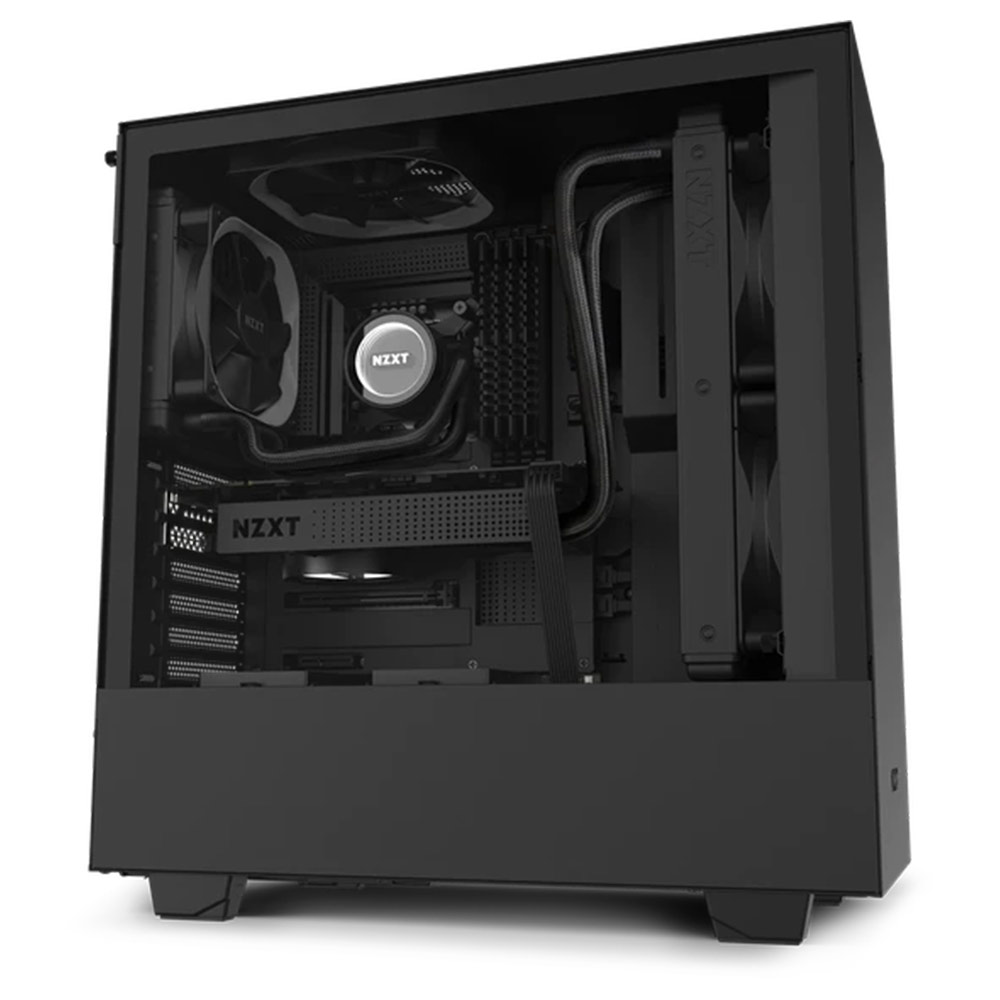

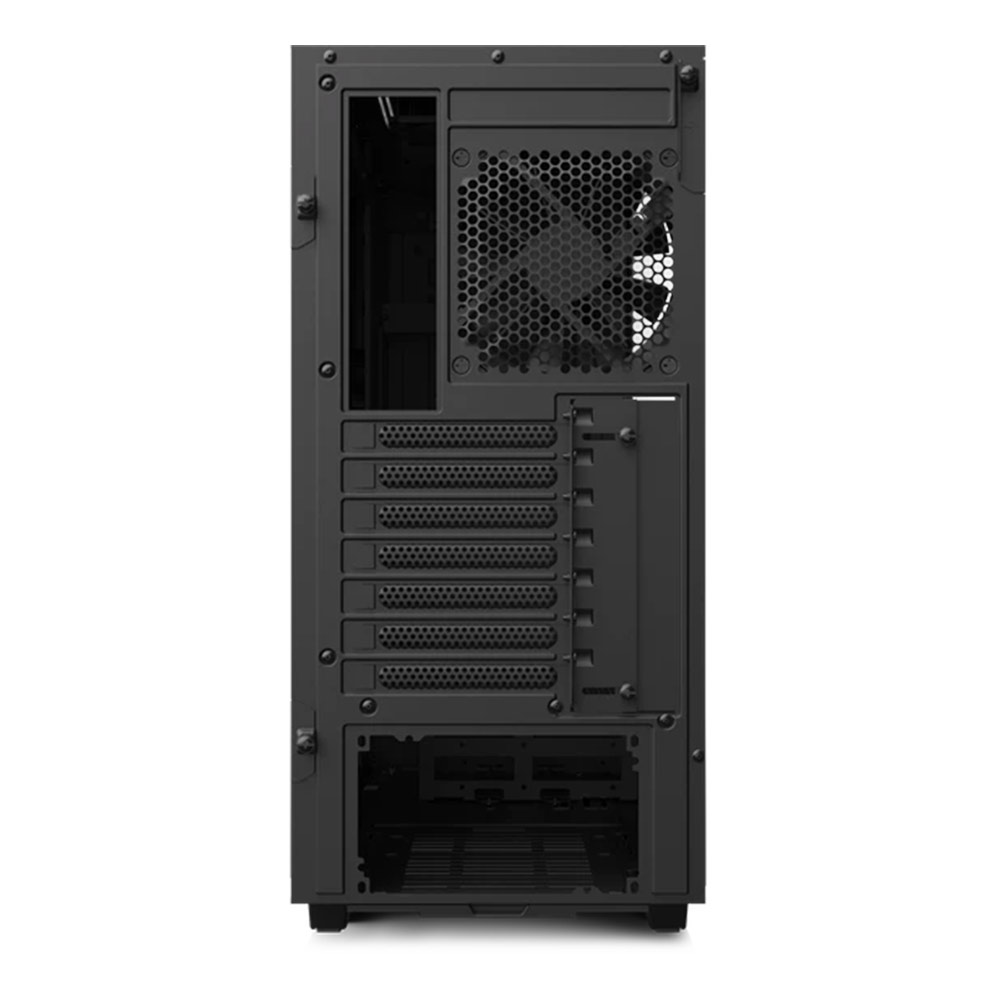

NZXT H510 Tower Case – Black CA-H510B-B1

Specifications

Key Specs	Motherboard Support Mini-ITX, MicroATX, ATX Enclosure Type Compact Mid-Tower Case Material SGCC Steel, Tempered Glass
Dimensions	Height 460mm / 18.11 inches Width 210mm / 8.27 inches Depth 428mm / 16.85 inches Weight 6.6 kg / 14.55 lb
Compatibility & Clearance	Max CPU Cooler Clearance 165mm Max GPU Clearance 381mm Front Fan & Radiator Clearance 60mm Cable Management 19 – 23mm
Front I/O Ports	USB 3.2 Gen 1 Type-A 1 USB 3.2 Gen 2 Type-C 1 Headset Audio Jack 1
Expansion Slots	Standard 7 Vertical –
Drive Bays	2.5″ 2 + 1 3.5″ 2 + 1
Fan Support	Front 2 x 120mm / 2 x 140mm Top 1 x 120mm / 1 x 140mm Rear 1 x 120mm Filters All air intakes
Radiator Support	Front 280mm Top – Rear 120mm
Fan Specs	Model Aer P 120mm (Case Version) Speed 1,200 ± 200RPM Airflow 50.42 CFM Noise 28 dBA Fan Connector 3-pin
General	Model Number CA-H510B-W1 UPC 815671014764 EAN 5060301695065



This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.

• Iconic cable management bar and uninterrupted tempered-glass side panel
• USB 3.2 Gen2-compatible USB-C connector on the front panel
• Cable routing kit with pre-installed channels and straps
• Two Aer F120mm fans and removable filter on PSU intake
• Removable bracket designed for radiators up to 280mm
  *Case version fans and specs vary from retail version



Highlights

• Seamless Glass Panel
• Up to 280mm Radiator Support
• Built-in Cable Management
