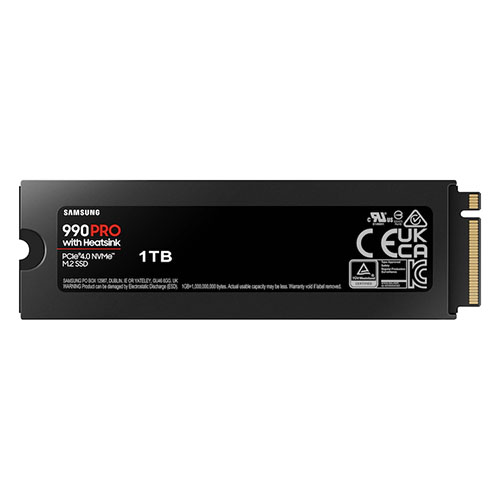

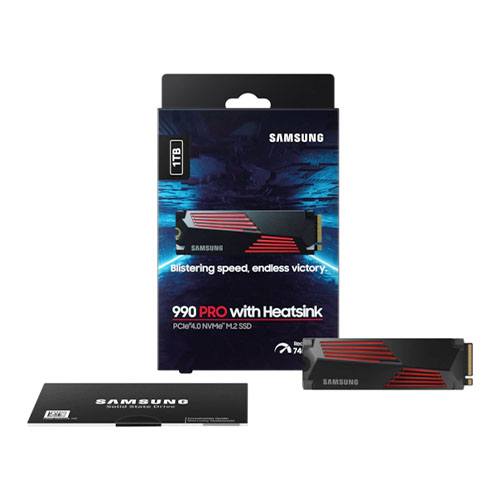

Samsung 990 PRO w/ Heatsink PCIe®4.0 NVMe™ SSD 1TB Solid State Drive

  • Interface PCIe Gen 4.0 x4, NVMe 2.0
  • Dimension (WxHxD) 80 x 24.3 x 8.2 mm (with heatsink)
  • Weight Max 28.0g Weight
  • Form Factor M.2 (2280)
  • Storage Memory Samsung V-NAND 3-bit MLC
  • Controller Samsung in-house Controller
  • Cache Memory Samsung 1GB Low Power DDR4 SDRAM
SKU: MZ-V9P1T0CW Categories: , ,

Specifications

General Feature

Application Client PCs, Game Consoles

Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Interface PCIe Gen 4.0 x4, NVMe 2.0

Dimension (WxHxD) 80 x 24.3 x 8.2 mm (with heatsink)

Weight Max 28.0g Weight

Form Factor M.2 (2280)

Storage Memory Samsung V-NAND 3-bit MLC

Controller Samsung in-house Controller

Cache Memory Samsung 1GB Low Power DDR4 SDRAM

Performance

Sequential Read Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential write Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB ,QD32) Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB ,QD32) Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB ,QD1) Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB ,QD1) Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Type

Product Type 990 PRO with Heatsink

Key Features

NVMe Yes

Environmental Specs

Operating Temperature 0 – 70 ℃ Operating Temperature

Shock 1,500 G & 0.5 ms (Half sine)

Software

Management SW Magician Software for SSD management

Special Features

TRIM Support Supported

S.M.A.R.T Support Supported

GC (Garbage Collection) Auto Garbage Collection Algorithm

Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support Not supported

Device Sleep Mode Support Yes

Environment

Average Power Consumption (system level) *Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle) Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage 3.3 V ± 5 % Allowable voltage

Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)

Accessories

Installation Kit Not Available

Features

• Designed for tech enthusiasts, hardcore gamers and heavy-workload professionals who want blazing fast speed.
• Compatible with Playstation®5.
• The integrated heatsink disperses heat to maintain speed, power, efficiency and thermal control, preventing downtime overheating on consoles and PCs.

Reach near max performance with PCIe®4.0.

The in-house controller’s smart heat control delivers our best power efficiency while maintaining ferocious performance that always keeps you at the top of your game.



Huge speed boost.

Get random read/write speeds that are 40%/55% faster than 980 PRO. Experience up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe® 4.0.123 Fly high in gaming, video editing, 3D modeling, data analysis and more.



Breakthrough power efficiency

Get more performance while using less power. Enjoy up to 50% improved performance per watt over 980 PRO



Breakthrough power efficiency

Smart thermal control

Samsung’s own nickel-coated high-end controller delivers effective thermal control and prevents sudden performance drops from overheating. Play confidently with stable thermal power and minimal fan noise even during heavy-graphic gaming. With its slim size, 990 PRO with Heatsink is a perfect fit for PlayStation®5, desktops and laptops that meet the PCI-SIG®D8 standard.



Smart thermal control



The champion maker

A more than 55% improvement in random performance1 enables faster loads for an ultimate gaming experience on PS5 and DirectStorage PC games2. With RGB LED lights, Heatsink’s futuristic design adds style to function



Samsung Magician Software

Unlock the full potential of 990 PRO.

  Get the most out of your SSD with Samsung Magician’s advanced yet intuitive optimization tools. Monitor drive health, protect valuable data, receive important updates and set up LED color combinations for your 990 PRO with Heatsink. It’s your personal SSD toolkit.



World’s No. 1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world’s number one brand  for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

Weight 5 kg
